LBEAST Universal Shield

scifiuiguy·LBEAST_Unity·Packages/com.ajcampbell.lbeast/FirmwareExamples/PCBs/LBEAST_Universal_Shield/LBEAST_Universal_Shield.kicad_pcb

LBEAST Universal Shield layout, top view — open source ESP32 board by scifiuiguy

About the LBEAST Universal Shield

LBEAST Universal Shield is an open source ESP32 PCB design by scifiuiguy, published on GitHub. It is a 2-layer board measuring 118 × 84.5 mm, with 54 components from 28 distinct parts.

Its main chip is the ESP32-S3-2x22, from the ESP32 family. Other key parts include the LM2576HVS-5, LAN8720A and ADM3057ExRW. By type, the board carries 18 capacitors, 12 resistors, 11 connectors, 5 diodes, 4 ICs and 2 transistors.

It belongs with the iot & wireless and dev boards & breakouts designs in this gallery.

From the project

Location-Based Entertainment Activation Standard Toolkit - designed to streamline deployment of professional-grade multiplayer VR LBE in venues using immersive theater actors, standardized large hydraulics for motion and haptics, embedded systems for button input & small haptic feedback with vibrators and kickers, & pro AV OSC for light and sound.

Plug-n-Play Embedded Systems - an Absolute Necessity for Next-Level LBE:

The LBEAST Universal Shield ("LBUS" or "Uni-Shield") is a multi-platform ECU that provides unified connectivity and control for all LBEAST firmware applications. But what is it for? What does it do? ECU? What the heck is even that?

It's sort of like the little computer hidden behind the dashboard in your car. It's not a supercomputer... quite the opposite. It costs a few dollars to buy a few dev boards on Amazon and deploy them as ECUs by flashing programs onto them. If you've done IoT with Arduino, ESP32, or STM32...…

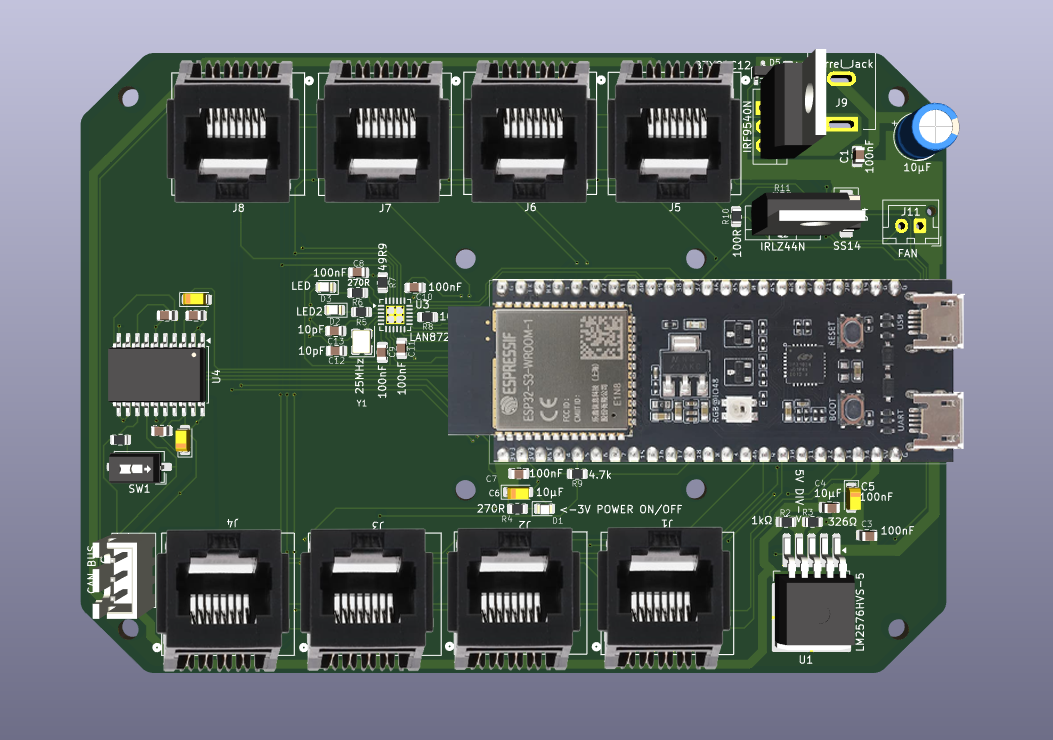

LBEAST Universal Shield, from the project README
From the project README

Main components on the LBEAST Universal Shield

LM2576HVS-5ESP32-S3-2x22LAN8720AADM3057ExRW

LBEAST Universal Shield bill of materials (BOM)

54 components, 28 distinct parts.

QtyPartRefs
1
LM2576HVS-5
U1
1
ESP32-S3-2x22
U2
1
LAN8720A
U3
1
ADM3057ExRW
U4
1
IRF9540N
Q1
1
IRLZ44N
Q2
1
25MHz
Y1
8
MTJ-883X1
J1, J2, J3, J4, J5, J6, J7, J8
1
Barrel_Jack
J9
1
CAN BUS
J10
1
FAN
J11
1
SW_DIP_x01
SW1
3
LED
D1, D2, D3
1
SS14
D4
1
BZX84C12
D5
11
100nF
C1, C3, C4, C7, C8, C9, C10, C11 +3
1
10µF
C2
2
10µF
C5, C6
2
10pF
C12, C13
2
4.7µF
C16, C18
Show 8 more
QtyPartRefs
3
10K
R1, R8, R11
1
1 kΩ
R2
1
326Ω
R3
3
270R
R4, R5, R6
1
49R9
R7
1
4.7k
R9
1
100R
R10
1
120R
R12

LBEAST Universal Shield design files

The KiCad project lives in the scifiuiguy/LBEAST_Unity repository on GitHub; these links point at the commit this page was built from.

LBEAST Universal Shield: common questions

What microcontroller does the LBEAST Universal Shield use?

The LBEAST Universal Shield is built around the ESP32-S3-2x22, from the ESP32 family.

How big is the LBEAST Universal Shield?

The LBEAST Universal Shield measures 118 × 84.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the LBEAST Universal Shield?

54 components, from 28 distinct parts. The full bill of materials is listed on this page.

Where can I download the LBEAST Universal Shield design files?

From the scifiuiguy/LBEAST_Unity repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the LBEAST Universal Shield design in my own project?

The repository has no license, so all rights stay with scifiuiguy. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the LBEAST Universal Shield without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
