TeleSTERN
About the TeleSTERN PCB
TeleSTERN is an open source STM32 PCB design by shorlee, published on GitHub under the GPL-3.0 license. It is a 6-layer board measuring 90 × 45 mm, with 293 components from 87 distinct parts.
Its main chip is the STM32L162VDT6, from the STM32 family. Other key parts include the MAX17291ATA+T, MAX-M10S-00B, TSR 1-2450, MCP73831T-2ACI/OT and ADXL375BCCZ. By type, the board carries 106 resistors, 73 capacitors, 36 transistors, 23 ICs, 23 diodes and 14 connectors.
It belongs with the sensors and rf & radio designs in this gallery.
From the project

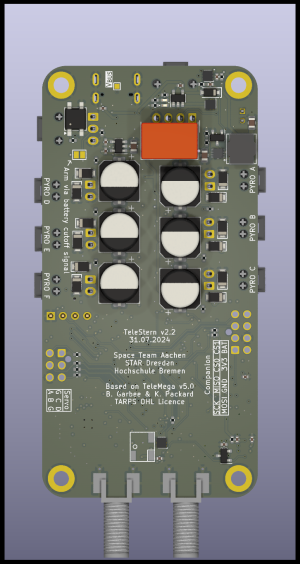

The TeleSTERN Project is an Open Source Rocketry Flight Computer based on the TeleMega by Altus Metrum.
The TeleSTERN Project is an Open Source Rocketry Flight Computer based on the TeleMega by Altus Metrum. It contains modifications to an original hardware and software design to fit requirements to European Launch Sites.
The Project has been initiated by the Teams of Space Team Aachen, STAR Dresden and Hochschule Bremen within the Student Experimental Rocket (STERN) Program funded by German Aerospace Center (DLR).
Main components on the TeleSTERN
TeleSTERN bill of materials (BOM)
293 components, 87 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MAX17291ATA+T | ad-TDFN-8p-EP-2x2mm | IC1 |
| 1 | MAX-M10S-00B | MAXM10S00B | IC2 |
| 1 | TSR 1-2450 TSR_1-2450 | Converter_DCDC_TRACO_TSR-1_THT | U1 |
| 1 | MCP73831T-2ACI/OT MCP73831-2-OT | SOT-23-5 | U2 |
| 1 | ADXL375BCCZ | ad-lga-14 | U3 |
| 1 | MS560702BA03-50 | SON125P300X500X100-8N | U4 |
| 1 | MX25L6433FM2I-08G W25Q64 | SOIC127P790X216-8N | U5 |
| 1 | CC1200RHBT CC1200 | QFN-32-1EP_5x5mm_P0.5mm_EP3.45x3.45mm | U6 |
| 1 | STM32L162VDT6 STM32L162VDTx | LQFP-100_14x14mm_P0.5mm | U7 |
| 1 | 253-AD503PQ1 AD-503-PQ1 | AD-504-PQ1 | U8 |
| 1 | MMC5983MA | memsic-lga-16 | U9 |
| 1 | TC2185-3.3VCTTR TC2185-3.3VxCTTR | SOT-23-5 | U11 |
| 1 | BMI088 | bosch-lga-16 | U12 |
| 1 | MCP130T-300I/TT MCP130T-300 | SOT-23 | U13 |
| 1 | BQ298215RUGR | TI-2XQFN | U14 |
| 1 | USBLC6-2SC6 | SOT-23-6 | U15 |
| 6 | 595-TL081HIDBVR TL081 | SOT-23-5 | U16, U17, U18, U19, U20, U21 |
| 1 | 769-AQY282GSX AQY282GSX | SO-4_4.4x4.3mm_P2.54mm | U27 |
| 14 | SIA469DJ-T1-GE3 PMOS Power | Vishay_PowerPAK_SC70-6L_Single | Q1, Q2, Q7, Q10, Q12, Q15, Q17, Q20 +6 |
| 1 | SIA931DJ-T1-GE3 PMOS Power Dual | Vishay_PowerPAK_SC70-6L_Dual | Q3 |
Show 67 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | IRLML2803TRPBF NMOS Signal | SOT-23 | Q4 |
| 1 | SIA918EDJ-T1-GE3 NMOS Power Dual | Vishay_PowerPAK_SC70-6L_Dual | Q5 |
| 6 | SSM6N15AFU,LF NMOS Signal Dual | JEITA-sc88 | Q6, Q9, Q11, Q14, Q16, Q19 |
| 13 | SIA432DJ-T1-GE3 NMOS Power | Vishay_PowerPAK_SC70-6L_Single | Q8, Q13, Q18, Q21, Q23, Q24, Q26, Q28 +5 |
| 1 | ABM8W-40.0000MHZ-4-B1U-T3 40MHz | Crystal_SMD_Abracon_ABM3B-4Pin_3.2x2.5mm | X1 |
| 1 | FA-20H 16.0000MF10Z-AJ0 16MHz | Crystal_SMD_Abracon_ABM10-4Pin_2.5x2.0mm | X2 |
| 1 | 105313-1104 Rocket Side | Molex_Nano-Fit_105313-xx04_1x04_P2.50mm_Horizontal | J1 |
| 1 | 105313-1103 ARM | Molex_Nano-Fit_105313-xx03_1x03_P2.50mm_Horizontal | J2 |
| 1 | 105313-1102 IGN A | Molex_Nano-Fit_105313-xx02_1x02_P2.50mm_Horizontal | J3 |
| 1 | 105313-1102 IGN B | Molex_Nano-Fit_105313-xx02_1x02_P2.50mm_Horizontal | J4 |
| 1 | 105313-1102 IGN C | Molex_Nano-Fit_105313-xx02_1x02_P2.50mm_Horizontal | J6 |
| 1 | 105313-1102 IGN D | Molex_Nano-Fit_105313-xx02_1x02_P2.50mm_Horizontal | J7 |
| 2 | 73251-2120 SMA | SMA_Molex_73251-2120_EdgeMount_Horizontal | J8, J91 |
| 1 | 538-105310-1208 Companion | Molex_Nano-Fit_105310-xx08_2x04_P2.50mm_Vertical | J9 |
| 1 | 105313-1102 IGN E | Molex_Nano-Fit_105313-xx02_1x02_P2.50mm_Horizontal | J10 |
| 1 | 105313-1102 IGN F | Molex_Nano-Fit_105313-xx02_1x02_P2.50mm_Horizontal | J11 |
| 1 | DX07S016JA1R1500 USB_C_Receptacle_USB2.0_14P | USB_C_Receptacle_JAE_DX07S016JA1R1500 | J12 |
| 1 | Debug | PinHeader_1x04_P2.54mm_Vertical | J20 |
| 1 | 538-105310-1206 Servos | Molex_Nano-Fit_105310-xx06_2x03_P2.50mm_Vertical | J21 |
| 1 | 440054-2 LiPo JST connector | TE_JST_1x2pin | B1 |
| 1 | Bypass Boost | SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm | JP1 |
| 1 | ARM via Bat Cutoff | SolderJumper-2_P1.3mm_Open_Pad1.0x1.5mm | JP2 |
| 3 | B5819W-TP B5819W | D_SOD-123 | D1, D3, D7 |
| 1 | 150040VS73220 Green | LED_0402_1005Metric | D2 |
| 5 | 150040VS73220 RED | LED_0402_1005Metric | D4, D5, D6, D9, D10 |
| 13 | DFLS130LQ-7 DFLS130L | D_PowerDI-123 | D8, D11, D12, D13, D14, D16, D17, D18 +5 |
| 1 | 941-CLV1LFKBCJQ79353 CLV1L-FKB | LED_Cree-PLCC4_3.2x2.8mm_CCW | D15 |
| 2 | LI0402C221R-10 220@100MHz | L_0402_1005Metric | FB1, L600 |
| 1 | 810-TFM201208ALD1R0M 1u | L_0805_2012Metric | L1 |
| 1 | SRN6045-100M 10u | L_Bourns_SRN6045TA | L2 |
| 3 | LQG15HS27NJ02D 27n | L_0402_1005Metric | L3, L192, L201 |
| 2 | LQG15HS56NJ02D 56n | L_0402_1005Metric | L171, L191 |
| 2 | LQG15HS15NJ02D 15n | L_0402_1005Metric | L172, L193 |
| 1 | MLG1005S43NJT000 43n | L_0402_1005Metric | L173 |
| 1 | LQG15HS22NJ02D 22n | L_0402_1005Metric | L174 |
| 2 | CL21A226MAYNNNE 22u | C_0805_2012Metric | C1, C5 |
| 5 | 04026D106MAT2A 10u | C_0402_1005Metric | C2, C4, C6, C21, C34 |
| 26 | C1005X5R1E104K050BC 100n | C_0402_1005Metric | C3, C9, C10, C13, C17, C19, C23, C25 +18 |
| 2 | CL21B106KAYQNNE 10u | C_0805_2012Metric | C7, C8 |
| 3 | 250R07W103KV4T 10n | C_0402_1005Metric | C11, C171, C211 |
| 4 | CL05A105KP5NNNC 1u | C_0402_1005Metric | C12, C22, C102, C601 |
| 6 | 661-EMZL250ARA821MJA 820u | CP_Elec_8x10 | C16, C18, C20, C24, C26, C28 |
| 2 | 0402N100J500CT 10p | C_0402_1005Metric | C30, C31 |
| 2 | GRM1555C1H220FA01D 22p | C_0402_1005Metric | C32, C33 |
| 1 | LMK105BJ224KV-F 220n | C_0402_1005Metric | C42 |
| 9 | CGA2B2X7R1C473K050BA 47n | C_0402_1005Metric | C43, C44, C45, C47, C221, C251, C261, C271 +1 |
| 2 | CGA2B2NP01H101J050BA 100p | C_0402_1005Metric | C48, C172 |
| 1 | C0402C560J5GACTU 56p | C_0402_1005Metric | C173 |
| 1 | 791-RF15N390J500CT 39p | C_0402_1005Metric | C174 |
| 1 | GJM1555C1H6R2CB01D 6.2p | C_0402_1005Metric | C175 |
| 1 | GJM1555C1H2R2BB01D 2.2p | C_0402_1005Metric | C176 |
| 1 | Tuning | C_0402_1005Metric | C177 |
| 3 | C0402C519C5GACTU 5.1p | C_0402_1005Metric | C181, C191, C210 |
| 1 | 04025C182KAT2A 1.8n | C_0402_1005Metric | C231 |
| 33 | CRGP0402F10K 10k | R_0402_1005Metric | R1, R2, R3, R6, R10, R17, R21, R26 +25 |
| 1 | RC0402FR-072KL 2k | R_0402_1005Metric | R4 |
| 21 | CR0402-FX-1001GLF 1k | R_0402_1005Metric | R5, R7, R8, R11, R18, R19, R34, R35 +13 |
| 1 | RC0402FR-0786K6L 86.6k | R_0402_1005Metric | R9 |
| 3 | RK73H1ETTP22R0F 22 | R_0402_1005Metric | R12, R54, R55 |
| 1 | 71-WFCP05088L000FE66 8m | R_0402_1005Metric | R13 |
| 2 | RC0402FR-07150RL 150 | R_0402_1005Metric | R14, R50 |
| 14 | RC0402FR-0760K4L 30k | R_0402_1005Metric | R20, R28, R29, R45, R59, R69, R79, R89 +6 |
| 19 | RC0402FR-07100KL 100k | R_0402_1005Metric | R22, R23, R24, R27, R38, R39, R44, R56 +11 |
| 1 | ERJ-2RKF5601X 5k6 | R_0402_1005Metric | R25 |
| 2 | ERJ-U02F5602X 56k | R_0402_1005Metric | R30, R32 |
| 6 | RK73H1ETTP2200F 220 | R_0402_1005Metric | R40, R41, R42, R43, R106, R107 |
| 2 | 603-RC0402FR-7W10RL 10 | R_0402_1005Metric | R64, R171 |
TeleSTERN design files
The KiCad project lives in the shorlee/TeleSTERN repository on GitHub; these links point at the commit this page was built from.
- Layouthw-tele-stern.kicad_pcb
- Schematichw-tele-stern.kicad_sch
TeleSTERN: common questions
What microcontroller does the TeleSTERN use?
The TeleSTERN is built around the STM32L162VDT6, from the STM32 family.
How big is the TeleSTERN PCB?
The TeleSTERN measures 90 × 45 mm, has 6 copper layers and is 1.45402 mm thick.
How many components are on the TeleSTERN?
293 components, from 87 distinct parts. The full bill of materials is listed on this page.
Where can I download the TeleSTERN design files?
From the shorlee/TeleSTERN repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the TeleSTERN design in my own project?
Yes, under the terms of its GPL-3.0 license, which shorlee chose for the repository.
Can I test firmware for the TeleSTERN without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
