ADIRS section board

stefanofinetti·MF_OverHead_Panel·Section_ADIRS/Section_ADIRS.kicad_pcb

ADIRS section board layout, top view — open source board by stefanofinetti

About the ADIRS section board

ADIRS section board is an open source PCB design by stefanofinetti, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 132.5 × 81.5 mm, with 35 components from 15 distinct parts.

By type, the board carries 19 diodes, 9 resistors, 4 switches and 3 connectors.

From the project

Complete project for the Airbus A319/320/321/330 OverHead Panel

The v2 board under the ADIRS panel. It carries the panel's switches, annunciator LEDs and backlight, at their v1 positions, and reaches the mainboard through one ribbon and one pair of backlight wires. There are no ICs on it. The design rules shared by the eight section boards are in docs/board-split.md.

PCB: 132.5 × 81.5 mm, 2 layers, 1.6 mm. Every v1 hole is kept. Status: routed with Freerouting. ERC, DRC and schematic parity are clean. Not yet ordered.

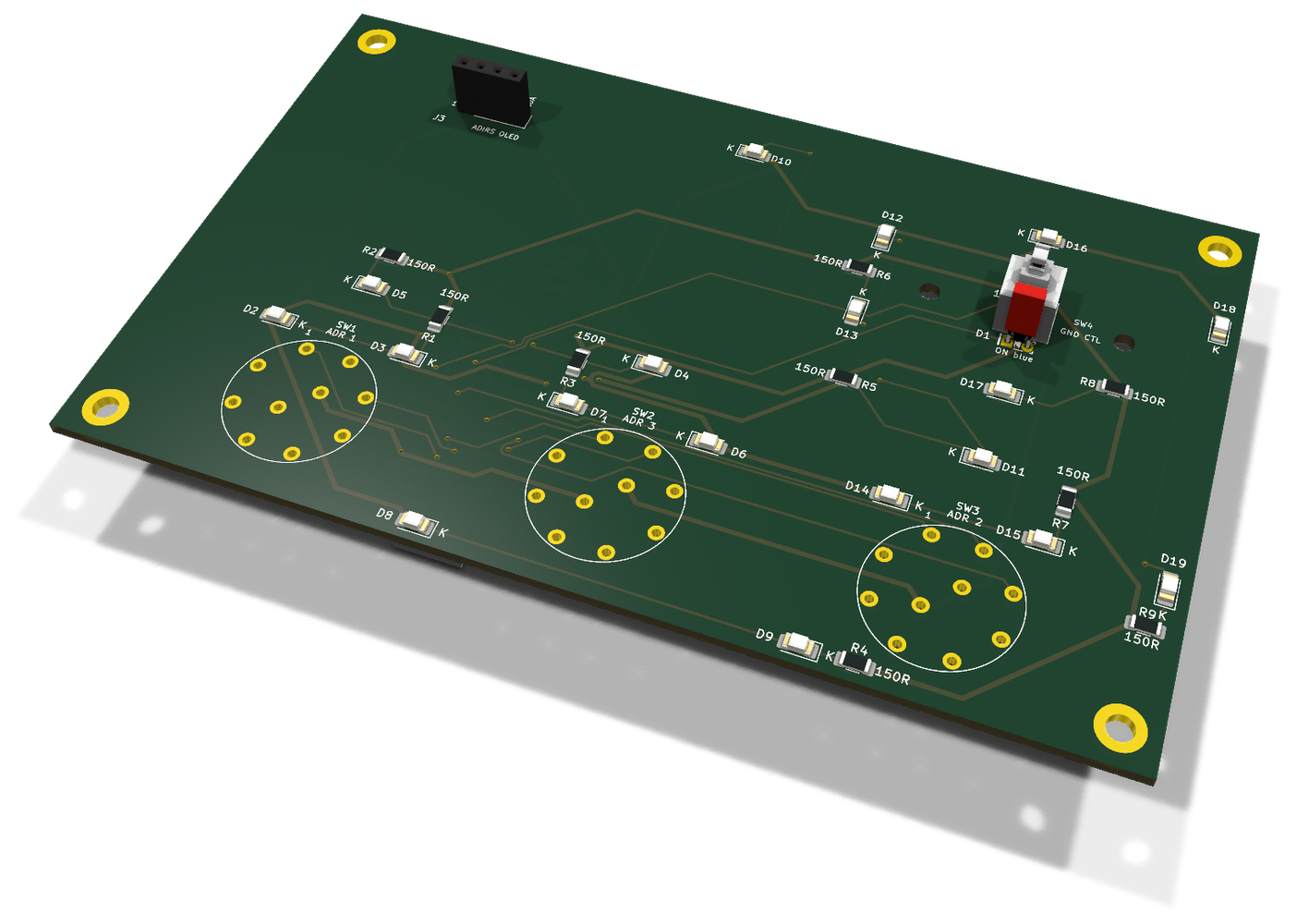

ADIRS section board, from the project README
From the project README

ADIRS section board bill of materials (BOM)

35 components, 15 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
BATT_1_OLED
ADIRS ribbon
J1
1
BATT_2_OLED
Backlight
J2
1
ADIRS OLED
J3
1
ADIRS ADR 1
SW1
1
ADIRS ADR 3
SW2
1
ADIRS ADR 2
SW3
1
ANTI_ICE_ENG1_SW
ADIRS GND CTL
SW4
1
blue
D1
18
LED
D2, D3, D4, D5, D6, D7, D8, D9 +10
2
10K
150
R1, R6
1
1.5K
150
R2
2
150
R3, R4
1
220
150
R5
2
4.7K
150
R7, R8
1
150
R9

ADIRS section board design files

The KiCad project lives in the stefanofinetti/MF_OverHead_Panel repository on GitHub; these links point at the commit this page was built from.

ADIRS section board: common questions

How big is the ADIRS section board?

The ADIRS section board measures 132.5 × 81.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ADIRS section board?

35 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ADIRS section board design files?

From the stefanofinetti/MF_OverHead_Panel repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ADIRS section board design in my own project?

Yes, under the terms of its GPL-3.0 license, which stefanofinetti chose for the repository.
