ELEC section board

stefanofinetti·MF_OverHead_Panel·Section_ELEC/Section_ELEC.kicad_pcb

ELEC section board layout, top view — open source board by stefanofinetti

About the ELEC section board

ELEC section board is an open source PCB design by stefanofinetti, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 177.5 × 39.5 mm, with 27 components from 14 distinct parts.

By type, the board carries 15 diodes, 5 resistors, 4 connectors and 3 switches.

From the project

Complete project for the Airbus A319/320/321/330 OverHead Panel

The v2 board under the ELEC panel. It carries the panel's switches, annunciator LEDs and backlight, at their v1 positions, and reaches the mainboard through one ribbon and one pair of backlight wires. There are no ICs on it. The design rules shared by the eight section boards are in docs/board-split.md.

PCB: 177.5 × 39.5 mm, 2 layers, 1.6 mm. Every v1 hole is kept. Status: routed with Freerouting. ERC, DRC and schematic parity are clean. Not yet ordered.

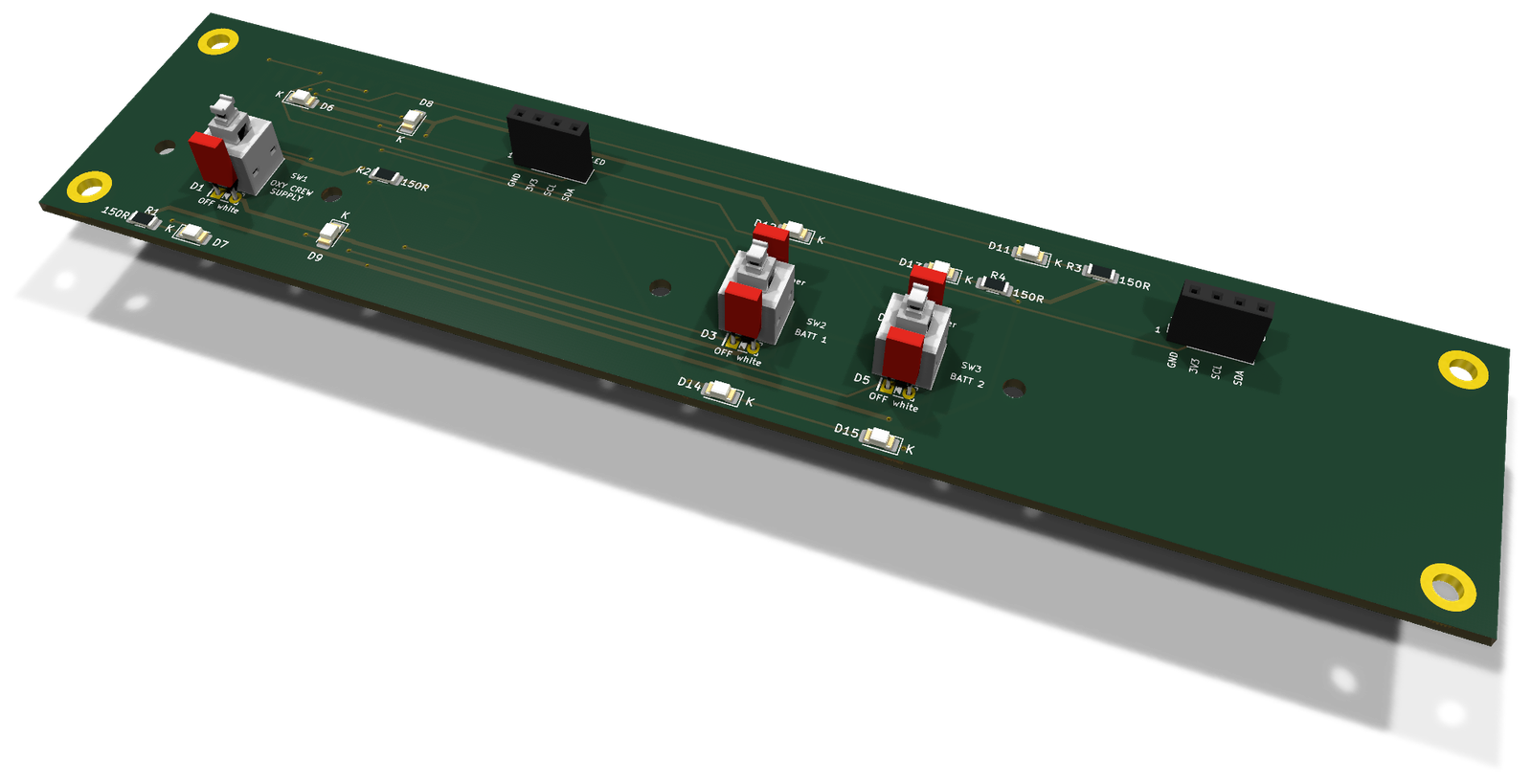

ELEC section board, from the project README
From the project README

ELEC section board bill of materials (BOM)

27 components, 14 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
BATT_1_OLED
ELEC ribbon
J1
1
BATT_2_OLED
Backlight
J2
1
BATT 1 OLED
J3
1
BATT 2 OLED
J4
1
ELEC OXY CREW SUPPLY
SW1
1
ELEC BATT 1
SW2
1
ELEC BATT 2
SW3
3
white
D1, D3, D5
2
amber
D2, D4
10
LED
D6, D7, D8, D9, D10, D11, D12, D13 +2
1
10K
150
R1
1
1.5K
150
R2
2
150
R3, R4
1
220
150
R5

ELEC section board design files

The KiCad project lives in the stefanofinetti/MF_OverHead_Panel repository on GitHub; these links point at the commit this page was built from.

ELEC section board: common questions

How big is the ELEC section board?

The ELEC section board measures 177.5 × 39.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ELEC section board?

27 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ELEC section board design files?

From the stefanofinetti/MF_OverHead_Panel repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ELEC section board design in my own project?

Yes, under the terms of its GPL-3.0 license, which stefanofinetti chose for the repository.
