OverHead v1

stefanofinetti·MF_OverHead_Panel·Kicad Files/OverHead_v1.kicad_pcb

OverHead v1 PCB layout, top view — open source AVR/Arduino board by stefanofinetti
Simulate this board

About the OverHead v1 PCB

OverHead v1 is an open source AVR/Arduino PCB design by stefanofinetti, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 313 × 206 mm, with 345 components from 82 distinct parts.

Its main chip is the ATMEGA2560, from the AVR/Arduino family. Other key parts include the AMS1117-3.3, CH340G, MIC29302WU, DM13A-GREEN-0-100 and DM13A-WHITE-0-100. By type, the board carries 170 diodes, 84 resistors, 39 switches, 30 capacitors, 8 ICs and 6 connectors.

It belongs with the displays & leds designs in this gallery.

From the project

Complete project for the Airbus A319/320/321/330 OverHead Panel

A compact Airbus A319/320/321 overhead panel for MobiFlight: 3D-printed panels and Korry-style push buttons, the boards that carry every switch, light and display, and the firmware for its three OLED displays.

The panel covers ADIRS, AIR COND, ANTI ICE, APU, ELEC, EXT LT, FUEL, GPWS and SIGNS.

v1 is one four-layer board, 313 × 206 mm, behind the whole panel. It works, but it costs well over €100 once shipping and customs are added, and a single mistake means reordering all of it.

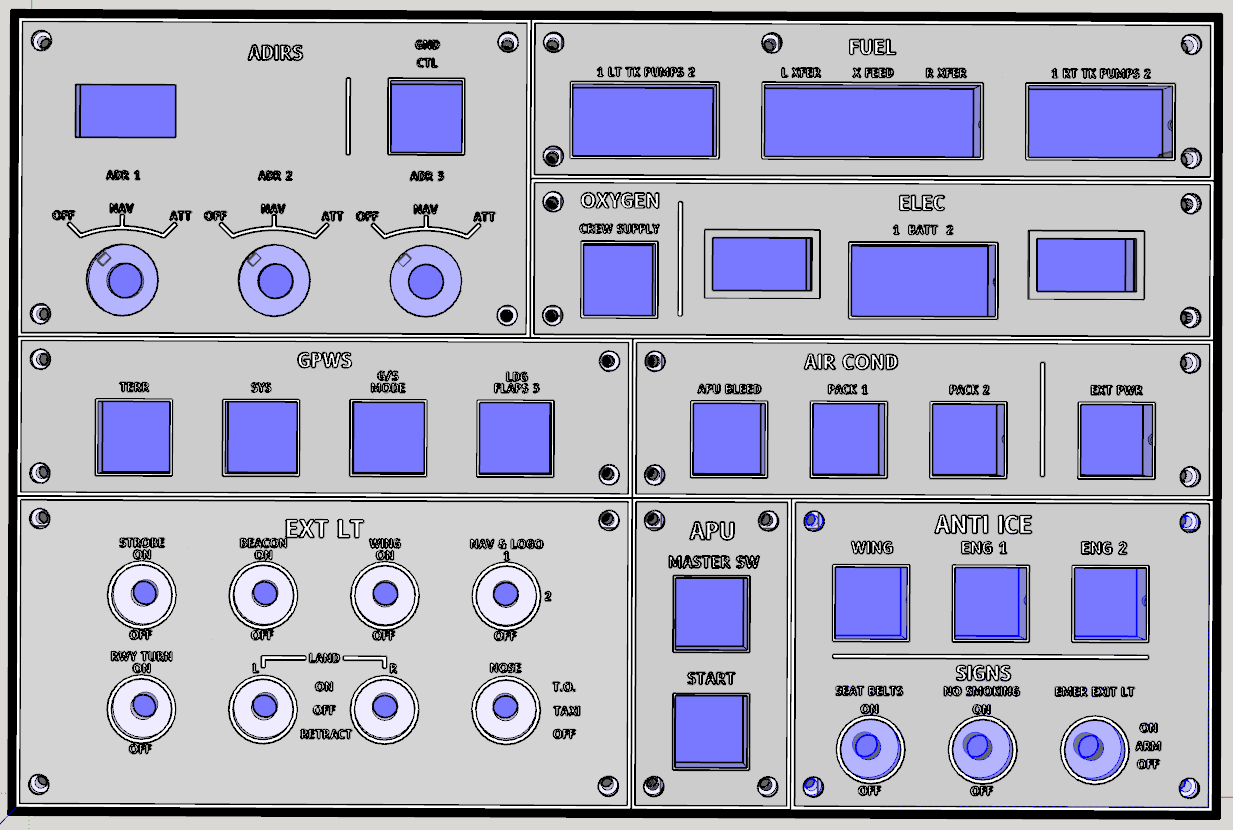

OverHead v1, from the project README
From the project README

Main components on the OverHead v1

ATMEGA2560AMS1117-3.3CH340GMIC29302WUDM13A-GREEN-0-100DM13A-WHITE-0-100DM13A-BLUE-0-100DM13A-ORANGE-0-100

OverHead v1 bill of materials (BOM)

345 components, 82 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATMEGA2560
ATMega2560
U1
1
AMS1117-3.3
U2
1
CH340G
U3
1
MIC29302WU
U4
1
DM13A-GREEN-0-100
U5
1
DM13A-WHITE-0-100
U6
1
DM13A-BLUE-0-100
U7
1
DM13A-ORANGE-0-100
U8
1
BATT_1_OLED
J1
1
BATT_2_OLED
J2
1
ADIRS_OLED
J3
1
BootLoader
J4
1
PJ-102A
CUI Inc.
J5
1
USB_C_PLUG_USB2.0
USB_C_Plug_USB2.0
P1
1
PCA9548APW
I2C_1
1
Power Selector
JP1
1
POT_WHITE
RV1
1
POT_GREEN
RV2
1
POT_BLUE
RV3
1
POT_ORANGE
RV4
Show 62 more
QtyPartRefs
1
100SP1T1B4M2QE
LDG_LIGHT_L
E-Switch
S1
1
100SP1T1B4M2QE
LDG_LIGHT_R
E-Switch
S2
1
100SP1T1B4M2QE
NOSE_LIGHT
E-Switch
S3
1
100SP1T1B4M2QE
NAV&LOGO
E-Switch
S4
1
100SP1T1B4M2QE
WING
E-Switch
S5
1
100SP1T1B4M2QE
BEACON
E-Switch
S6
1
100SP1T1B4M2QE
STROBE
E-Switch
S7
1
100SP1T1B4M2QE
RWY TURN
E-Switch
S8
1
100SP1T1B4M2QE
SEATBELTS
E-Switch
S9
1
100SP1T1B4M2QE
NOSMOKING
E-Switch
S10
1
100SP1T1B4M2QE
EMERGENCY_LT
E-Switch
S11
1
APU_MASTER_SW
SW1
1
APU_START_SW
SW2
1
ANTI_ICE_WING_SW
SW3
1
ANTI_ICE_ENG1_SW
SW4
1
ANTI_ICE_ENG2_SW
SW5
1
TERR
SW6
1
SYS
SW7
1
G/S MODE
SW8
1
LDG FLAPS 3
SW9
1
APU BLEED
SW10
1
PACK1
SW11
1
PACK2
SW12
1
EXT_PWR
SW13
1
OXY_CREW_SUPPLY
SW14
1
ELEC_BATT_1
SW15
1
ELEC_BATT_2
SW16
1
LT_TK_PUMP_1
SW17
1
LT_TK_PUMP_2
SW18
1
L_XFER
SW19
1
X_FEED
SW20
1
R_XFER
SW21
1
RT_TK_PUMP_1
SW22
1
RT_TK_PUMP_2
SW23
1
GND_CTL
SW24
1
ADR_1
SW25
1
ADR_2
SW26
1
ADR_3
SW27
1
SW_DIP_X03
SW_DIP_x03
SW28
1
12MHz
XT12MHz1
1
16MHz
XT16MHz1
18
STS
D1, D3, D4, D76, D79, D91, D120, D121 +10
26
ANN
D2, D50, D51, D52, D75, D77, D78, D80 +18
123
LED
D5, D6, D7, D8, D9, D10, D11, D12 +115
1
USB_Protection
D162
1
BarrelJack_Prot
D163
1
BarrelJackProt_FromLed
D164
15
100NF
100nF
C1, C2, C3, C4, C7, C10, C12, C14 +7
1
10UF
10uF
C5
5
22PF
22pF
C6, C8, C9, C11, C13
6
10UF
10uF
C16, C18, C20, C22, C32, C33
1
470NF
470nF
C26
2
100UF
100uF
C34, C35
5
10K
R1, R6, R53, R54, R55
1
1.5K
R2
2
1K
R3, R4
1
220
R5
8
4.7K
R7, R8, R41, R42, R43, R44, R45, R46
61
150
R9, R10, R11, R12, R13, R14, R15, R16 +53
1
3.6K
R47
1
1.2K
R48
4
56
R49, R50, R51, R52

OverHead v1 design files

The KiCad project lives in the stefanofinetti/MF_OverHead_Panel repository on GitHub; these links point at the commit this page was built from.

OverHead v1: common questions

What microcontroller does the OverHead v1 use?

The OverHead v1 is built around the ATMEGA2560, from the AVR/Arduino family.

How big is the OverHead v1 PCB?

The OverHead v1 measures 313 × 206 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the OverHead v1?

345 components, from 82 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the OverHead v1 design files?

From the stefanofinetti/MF_OverHead_Panel repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the OverHead v1 design in my own project?

Yes, under the terms of its GPL-3.0 license, which stefanofinetti chose for the repository.

Can I test firmware for the OverHead v1 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
