OVHD Mainboard
About the OVHD Mainboard PCB
OVHD Mainboard is an open source AVR/Arduino PCB design by stefanofinetti, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 137 × 89 mm, with 123 components from 56 distinct parts.
Its main chip is the ATmega2560-16AU, from the AVR/Arduino family. Other key parts include the MIC29302WU, CH340G, AMS1117-3.3, TPS2115A and PCA9548APW. By type, the board carries 45 resistors, 35 capacitors, 19 connectors, 10 ICs, 5 transistors and 3 diodes.
From the project
Complete project for the Airbus A319/320/321/330 OverHead Panel

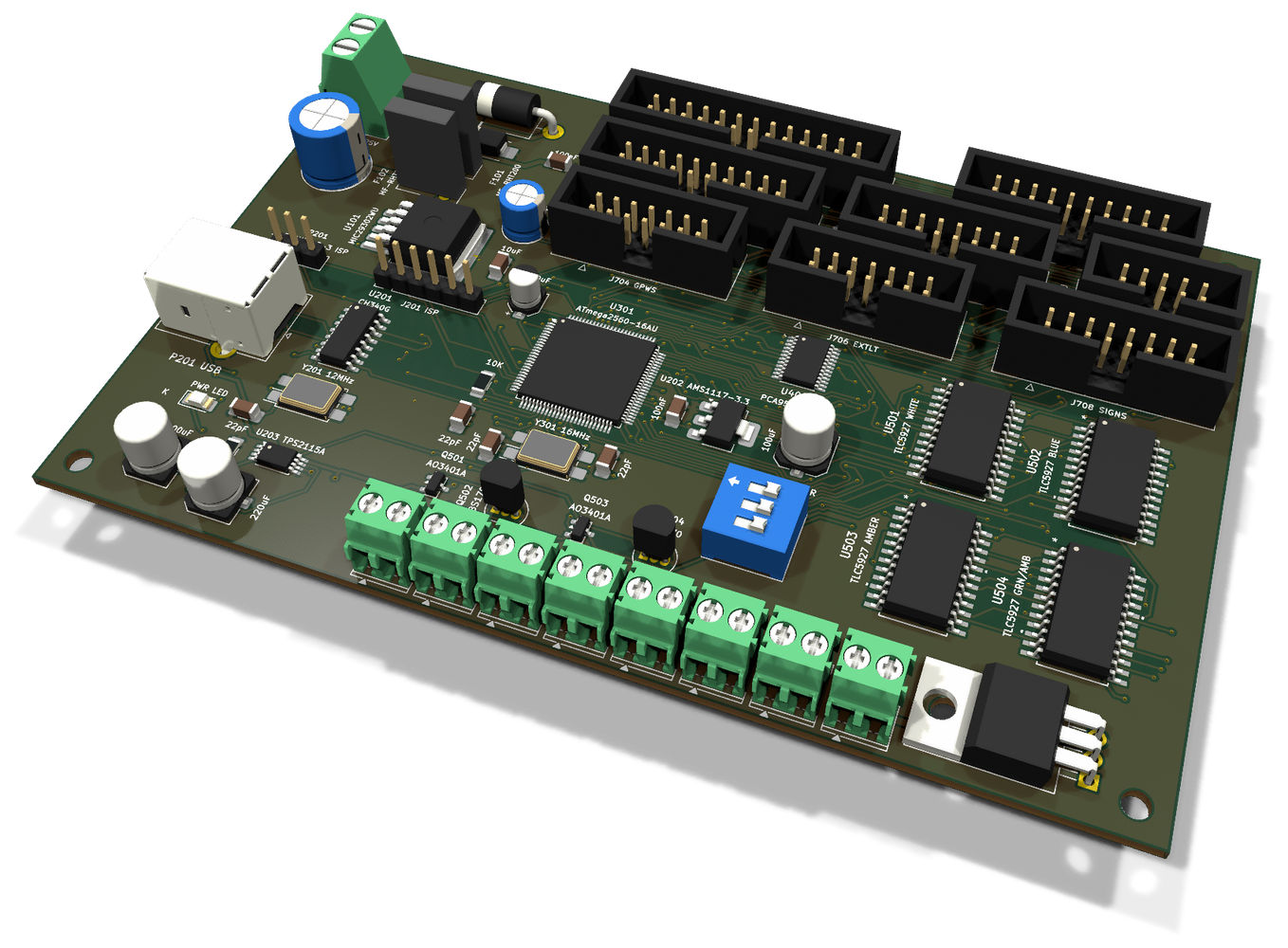

The v2 mainboard: the microcontroller, power, annunciator drivers and display multiplexer for the whole overhead. It sits on the floor of the lower-left case part and reaches the eight section boards through ribbons and backlight wires. The reasoning behind every choice is in docs/board-split.md.
PCB: 137 × 89 mm, 2 layers, 1.6 mm, GND poured on both sides. Fixing: four M3 holes, 4 mm in from the corners, for bosses with heat-set inserts in the reprinted case floor. Parts: 123. 65 of them are on the bottom. Status: routed with Freerouting. ERC, DRC (every warning on) and schematic parity are…
Main components on the OVHD Mainboard
OVHD Mainboard bill of materials (BOM)
123 components, 56 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MIC29302WU | TO-263-5_TabPin3 | U101 |
| 1 | CH340G | SOIC-16_3.9x9.9mm_P1.27mm | U201 |
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U202 |
| 1 | TPS2115A | TSSOP-8_4.4x3mm_P0.65mm | U203 |
| 1 | ATmega2560-16AU | TQFP-100_14x14mm_P0.5mm | U301 |
| 1 | PCA9548APW | TSSOP-24_4.4x7.8mm_P0.65mm | U401 |
| 4 | TLC5927IDWR | DW24-M | U501, U502, U503, U504 |
| 2 | AO3401A | SOT-23 | Q501, Q503 |
| 2 | BS170 | TO-92_Inline | Q502, Q504 |
| 1 | IRLIZ44N | TO-220F-3_Horizontal_TabDown | Q601 |
| 1 | 12MHz | Crystal_SMD_EuroQuartz_MQ-4Pin_7.0x5.0mm_HandSoldering | Y201 |
| 1 | 16MHz | Crystal_SMD_EuroQuartz_MQ-4Pin_7.0x5.0mm_HandSoldering | Y301 |
| 1 | 9V IN | TerminalBlock_Phoenix_MKDS-1,5-2-5.08_1x02_P5.08mm_Horizontal | J101 |
| 1 | BootLoader | PinHeader_1x06_P2.54mm_Vertical | J201 |
| 1 | ADIRS backlight | TerminalBlock_Phoenix_PT-1,5-2-3.5-H_1x02_P3.50mm_Horizontal | J601 |
| 1 | FUEL backlight | TerminalBlock_Phoenix_PT-1,5-2-3.5-H_1x02_P3.50mm_Horizontal | J602 |
| 1 | ELEC backlight | TerminalBlock_Phoenix_PT-1,5-2-3.5-H_1x02_P3.50mm_Horizontal | J603 |
| 1 | GPWS backlight | TerminalBlock_Phoenix_PT-1,5-2-3.5-H_1x02_P3.50mm_Horizontal | J604 |
| 1 | AIRCOND backlight | TerminalBlock_Phoenix_PT-1,5-2-3.5-H_1x02_P3.50mm_Horizontal | J605 |
| 1 | EXTLT backlight | TerminalBlock_Phoenix_PT-1,5-2-3.5-H_1x02_P3.50mm_Horizontal | J606 |
Show 36 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | APU backlight | TerminalBlock_Phoenix_PT-1,5-2-3.5-H_1x02_P3.50mm_Horizontal | J607 |
| 1 | SIGNS backlight | TerminalBlock_Phoenix_PT-1,5-2-3.5-H_1x02_P3.50mm_Horizontal | J608 |
| 1 | ADIRS ribbon | IDC-Header_2x10_P2.54mm_Vertical | J701 |
| 1 | FUEL ribbon | IDC-Header_2x13_P2.54mm_Vertical | J702 |
| 1 | ELEC ribbon | IDC-Header_2x10_P2.54mm_Vertical | J703 |
| 1 | GPWS ribbon | IDC-Header_2x07_P2.54mm_Vertical | J704 |
| 1 | AIRCOND ribbon | IDC-Header_2x08_P2.54mm_Vertical | J705 |
| 1 | EXTLT ribbon | IDC-Header_2x07_P2.54mm_Vertical | J706 |
| 1 | APU ribbon | IDC-Header_2x05_P2.54mm_Vertical | J707 |
| 1 | SIGNS ribbon | IDC-Header_2x08_P2.54mm_Vertical | J708 |
| 1 | USB_B | USB_B_OST_USB-B1HSxx_Horizontal | P201 |
| 2 | MF-RHT200 | Fuse_Bourns_MF-RHT200 | F101, F102 |
| 1 | Power Selector | PinHeader_1x03_P2.54mm_Vertical | JP201 |
| 1 | I2C ADDR | SW_DIP_SPSTx03_Slide_9.78x9.8mm_W7.62mm_P2.54mm | SW401 |
| 1 | 1N5822 | D_DO-201AD_P15.24mm_Horizontal | D101 |
| 1 | SMBJ12CA | D_SMB_Handsoldering | D102 |
| 1 | PWR | LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder | D201 |
| 1 | 470uF 25V | CP_Radial_D10.0mm_P5.00mm | C101 |
| 20 | 100nF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C102, C104, C201, C203, C205, C206, C208, C210 +12 |
| 1 | 10uF 25V | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C103 |
| 1 | 100uF 10V | CP_Radial_D6.3mm_P2.50mm | C105 |
| 3 | 10uF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C106, C505, C506 |
| 5 | 22pF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C202, C204, C307, C308, C309 |
| 2 | 100uF | C_Elec_6.3x7.7 | C207, C209 |
| 1 | 220uF | C_Elec_6.3x7.7 | C213 |
| 1 | 10uF | CP_Elec_4x5.4 | C305 |
| 1 | 3.6K | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R101 |
| 1 | 1.2K | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R102 |
| 1 | 220 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R201 |
| 16 | 1K | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R202, R203, R501, R502, R503, R504, R511, R512 +8 |
| 1 | 1.5K | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R204 |
| 4 | 100K | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R205, R206, R523, R526 |
| 1 | 620 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R207 |
| 8 | 10K | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R301, R401, R410, R411, R412, R521, R524, R602 |
| 9 | 4.7K | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R402, R403, R404, R405, R406, R407, R408, R409 +1 |
| 3 | 100 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R522, R525, R601 |
