AIRCOND section board

stefanofinetti·MF_OverHead_Panel·Section_AIRCOND/Section_AIRCOND.kicad_pcb

AIRCOND section board layout, top view — open source board by stefanofinetti
Simulate this board

About the AIRCOND section board

AIRCOND section board is an open source PCB design by stefanofinetti, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 150.5 × 39 mm, with 34 components from 16 distinct parts.

By type, the board carries 21 diodes, 7 resistors, 4 switches and 2 connectors.

From the project

Complete project for the Airbus A319/320/321/330 OverHead Panel

The v2 board under the AIR COND panel. It carries the panel's switches, annunciator LEDs and backlight, at their v1 positions, and reaches the mainboard through one ribbon and one pair of backlight wires. There are no ICs on it. The design rules shared by the eight section boards are in docs/board-split.md.

PCB: 150.5 × 39 mm, 2 layers, 1.6 mm. Every v1 hole is kept. Status: routed with Freerouting. ERC, DRC and schematic parity are clean. Not yet ordered.

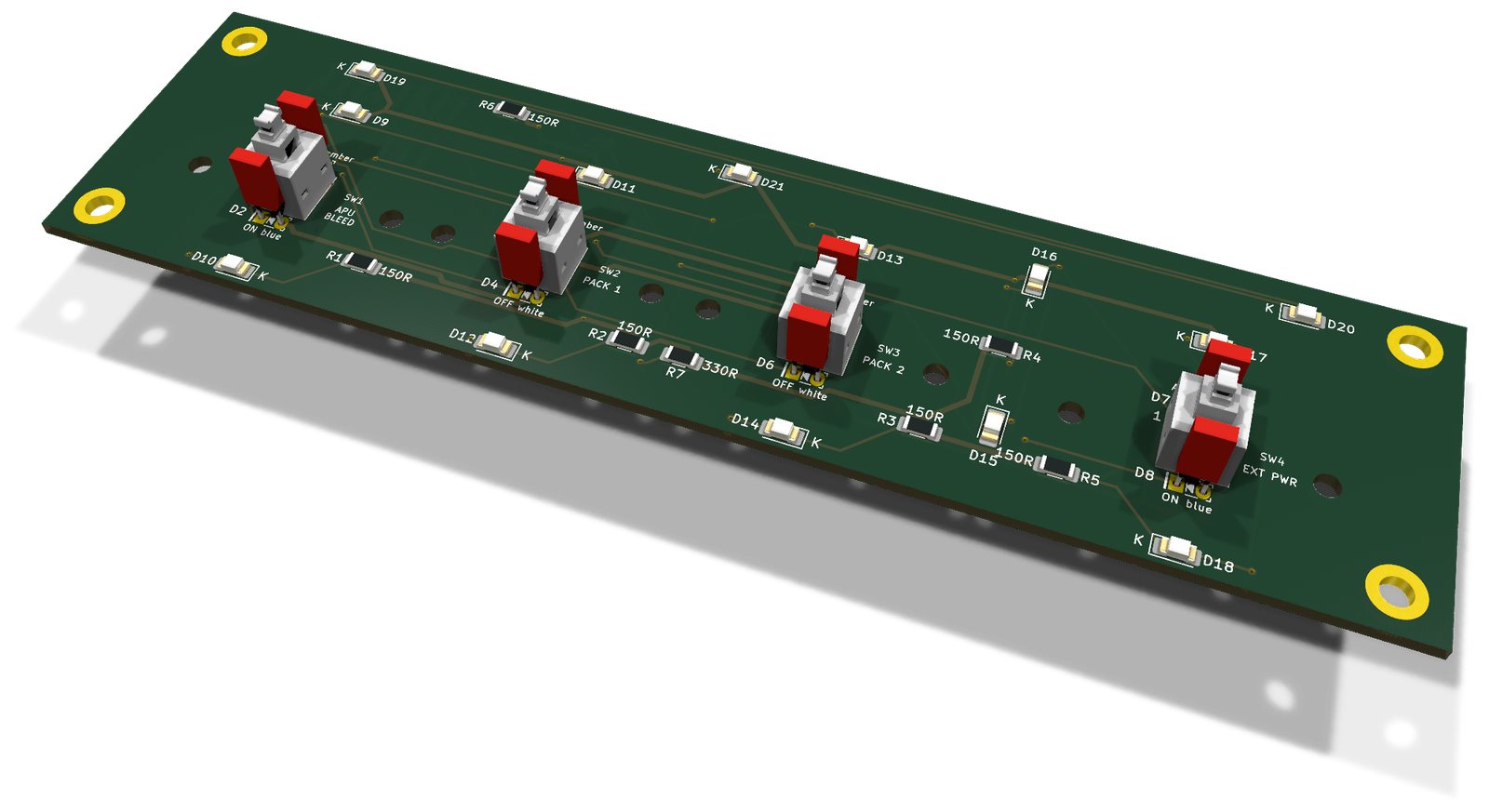

AIRCOND section board, from the project README
From the project README

AIRCOND section board bill of materials (BOM)

34 components, 16 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
BATT_1_OLED
AIRCOND ribbon
J1
1
BATT_2_OLED
Backlight
J2
1
AIRCOND APU BLEED
SW1
1
AIRCOND PACK 1
SW2
1
AIRCOND PACK 2
SW3
1
ANTI_ICE_ENG1_SW
AIRCOND EXT PWR
SW4
3
amber
D1, D3, D5
2
blue
D2, D8
2
white
D4, D6
1
green
D7
13
LED
D9, D10, D11, D12, D13, D14, D15, D16 +5
2
10K
150
R1, R6
1
1.5K
150
R2
2
150
R3, R4
1
220
150
R5
1
4.7K
330
R7

AIRCOND section board design files

The KiCad project lives in the stefanofinetti/MF_OverHead_Panel repository on GitHub; these links point at the commit this page was built from.

AIRCOND section board: common questions

How big is the AIRCOND section board?

The AIRCOND section board measures 150.5 × 39 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the AIRCOND section board?

34 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the AIRCOND section board design files?

From the stefanofinetti/MF_OverHead_Panel repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the AIRCOND section board design in my own project?

Yes, under the terms of its GPL-3.0 license, which stefanofinetti chose for the repository.
