EXTLT section board
About the EXTLT section board
EXTLT section board is an open source PCB design by stefanofinetti, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 159.5 × 79.5 mm, with 57 components from 18 distinct parts.
By type, the board carries 31 diodes, 16 resistors, 8 switches and 2 connectors.
From the project
Complete project for the Airbus A319/320/321/330 OverHead Panel

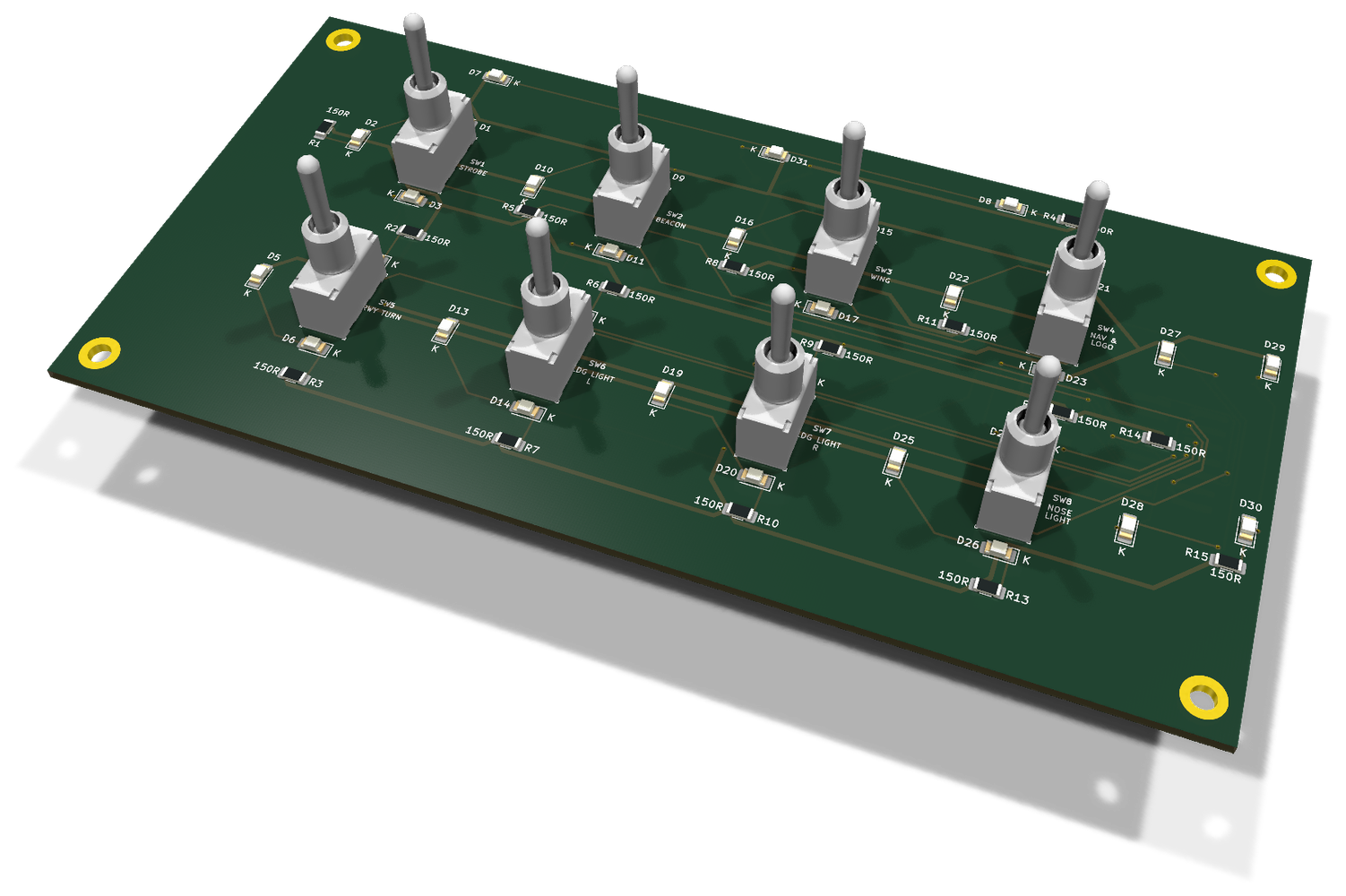

The v2 board under the EXT LT panel. It carries the panel's switches, annunciator LEDs and backlight, at their v1 positions, and reaches the mainboard through one ribbon and one pair of backlight wires. There are no ICs on it. The design rules shared by the eight section boards are in docs/board-split.md.
PCB: 159.5 × 79.5 mm, 2 layers, 1.6 mm. Every v1 hole is kept. Status: routed with Freerouting. ERC, DRC and schematic parity are clean. Not yet ordered.
EXTLT section board bill of materials (BOM)
57 components, 18 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | BATT_1_OLED EXTLT ribbon | IDC-Header_2x07_P2.54mm_Vertical_SMD | J1 |
| 1 | BATT_2_OLED Backlight | JST_PH_B2B-PH-SM4-TB_1x02-1MP_P2.00mm_Vertical | J2 |
| 1 | 100SP1T1B4M2QE EXTLT STROBE E-Switch | Toggle_Switch_100SP1T1B4M2QE | SW1 |
| 1 | 100SP1T1B4M2QE EXTLT BEACON E-Switch | Toggle_Switch_100SP1T1B4M2QE | SW2 |
| 1 | 100SP1T1B4M2QE EXTLT WING E-Switch | Toggle_Switch_100SP1T1B4M2QE | SW3 |
| 1 | 100SP1T1B4M2QE EXTLT NAV & LOGO E-Switch | Toggle_Switch_100SP1T1B4M2QE | SW4 |
| 1 | 100SP1T1B4M2QE EXTLT RWY TURN E-Switch | Toggle_Switch_100SP1T1B4M2QE | SW5 |
| 1 | 100SP1T1B4M2QE EXTLT LDG LIGHT L E-Switch | Toggle_Switch_100SP1T1B4M2QE | SW6 |
| 1 | 100SP1T1B4M2QE EXTLT LDG LIGHT R E-Switch | Toggle_Switch_100SP1T1B4M2QE | SW7 |
| 1 | 100SP1T1B4M2QE EXTLT NOSE LIGHT E-Switch | Toggle_Switch_100SP1T1B4M2QE | SW8 |
| 31 | LED | LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder | D1, D2, D3, D4, D5, D6, D7, D8 +23 |
| 2 | 10K 150 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R1, R6 |
| 1 | 1.5K 150 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R2 |
| 2 | 150 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R3, R4 |
| 1 | 220 150 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R5 |
| 2 | 4.7K 150 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R7, R8 |
| 7 | 150 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R9, R10, R11, R12, R13, R14, R15 |
| 1 | 150 330 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R16 |
EXTLT section board design files
The KiCad project lives in the stefanofinetti/MF_OverHead_Panel repository on GitHub; these links point at the commit this page was built from.
EXTLT section board: common questions
How big is the EXTLT section board?
The EXTLT section board measures 159.5 × 79.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the EXTLT section board?
57 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the EXTLT section board design files?
From the stefanofinetti/MF_OverHead_Panel repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the EXTLT section board design in my own project?
Yes, under the terms of its GPL-3.0 license, which stefanofinetti chose for the repository.
