About the SIGNS section board

SIGNS section board is an open source PCB design by stefanofinetti, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 108.5 × 79.5 mm, with 47 components from 17 distinct parts.

By type, the board carries 28 diodes, 11 resistors, 6 switches and 2 connectors.

From the project

Complete project for the Airbus A319/320/321/330 OverHead Panel

The v2 board under the SIGNS and ANTI ICE (OVHDPANELSIGNS) panel. It carries the panel's switches, annunciator LEDs and backlight, at their v1 positions, and reaches the mainboard through one ribbon and one pair of backlight wires. There are no ICs on it. The design rules shared by the eight section boards are in docs/board-split.md.

PCB: 108.5 × 79.5 mm, 2 layers, 1.6 mm. Every v1 hole is kept. Status: routed with Freerouting. ERC, DRC and schematic parity are clean. Not yet ordered.

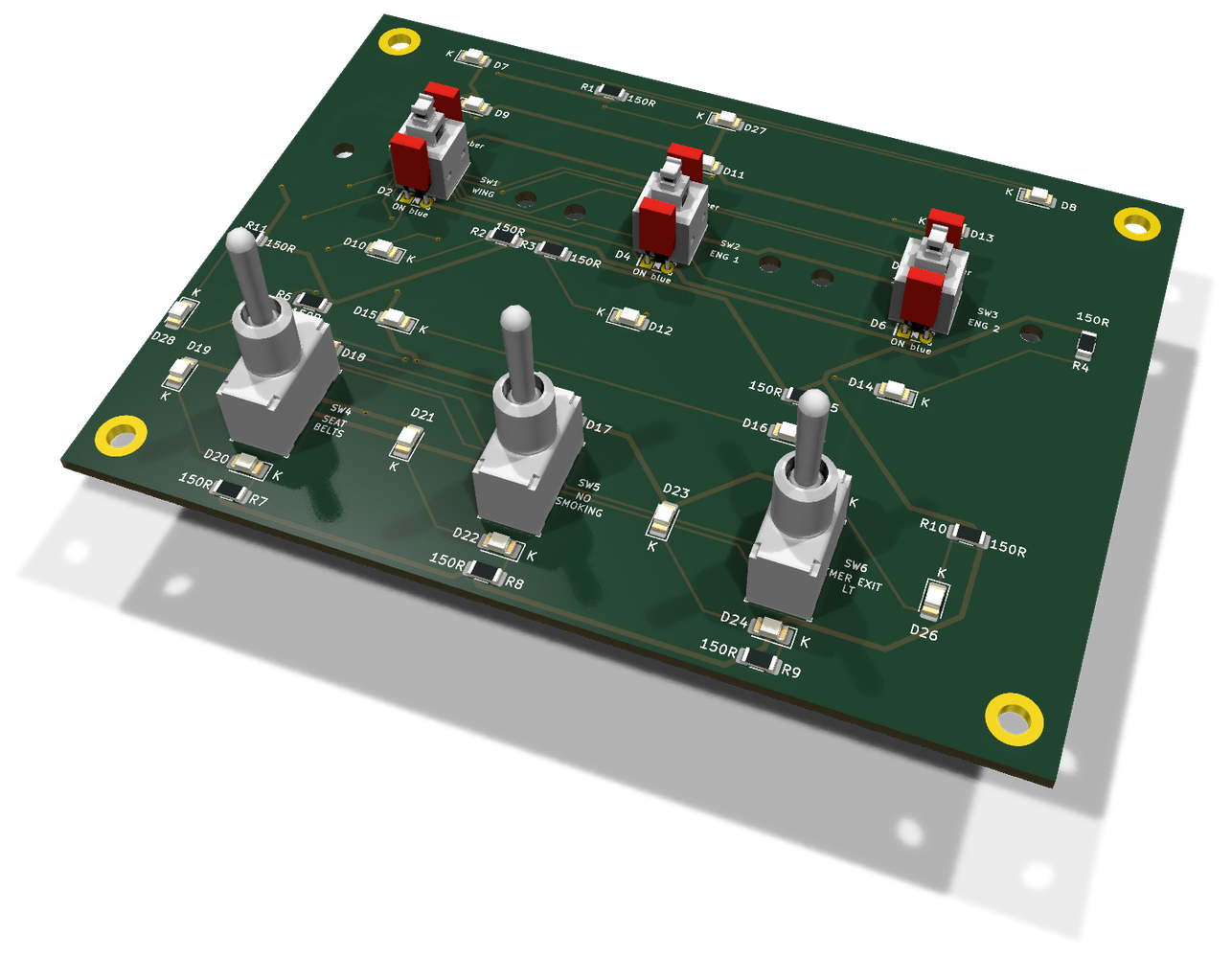

SIGNS section board, from the project README
From the project README

SIGNS section board bill of materials (BOM)

47 components, 17 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
BATT_1_OLED
SIGNS ribbon
J1
1
BATT_2_OLED
Backlight
J2
1
SIGNS WING
SW1
1
SIGNS ENG 1
SW2
1
SIGNS ENG 2
SW3
1
100SP1T1B4M2QE
SIGNS SEAT BELTS
E-Switch
SW4
1
100SP1T1B4M2QE
SIGNS NO SMOKING
E-Switch
SW5
1
100SP1T1B4M2QE
SIGNS EMER EXIT LT
E-Switch
SW6
3
amber
D1, D3, D5
3
blue
D2, D4, D6
22
LED
D7, D8, D9, D10, D11, D12, D13, D14 +14
2
10K
150
R1, R6
1
1.5K
150
R2
2
150
R3, R4
1
220
150
R5
2
4.7K
150
R7, R8
3
150
R9, R10, R11

SIGNS section board design files

The KiCad project lives in the stefanofinetti/MF_OverHead_Panel repository on GitHub; these links point at the commit this page was built from.

SIGNS section board: common questions

How big is the SIGNS section board?

The SIGNS section board measures 108.5 × 79.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SIGNS section board?

47 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the SIGNS section board design files?

From the stefanofinetti/MF_OverHead_Panel repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the SIGNS section board design in my own project?

Yes, under the terms of its GPL-3.0 license, which stefanofinetti chose for the repository.
