FUEL section board

stefanofinetti·MF_OverHead_Panel·Section_FUEL/Section_FUEL.kicad_pcb

FUEL section board layout, top view — open source board by stefanofinetti

About the FUEL section board

FUEL section board is an open source PCB design by stefanofinetti, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 177.5 × 40 mm, with 44 components from 18 distinct parts.

By type, the board carries 28 diodes, 7 switches, 7 resistors and 2 connectors.

From the project

Complete project for the Airbus A319/320/321/330 OverHead Panel

The v2 board under the FUEL panel. It carries the panel's switches, annunciator LEDs and backlight, at their v1 positions, and reaches the mainboard through one ribbon and one pair of backlight wires. There are no ICs on it. The design rules shared by the eight section boards are in docs/board-split.md.

PCB: 177.5 × 40 mm, 2 layers, 1.6 mm. Every v1 hole is kept. Status: routed with Freerouting. ERC, DRC and schematic parity are clean. Not yet ordered.

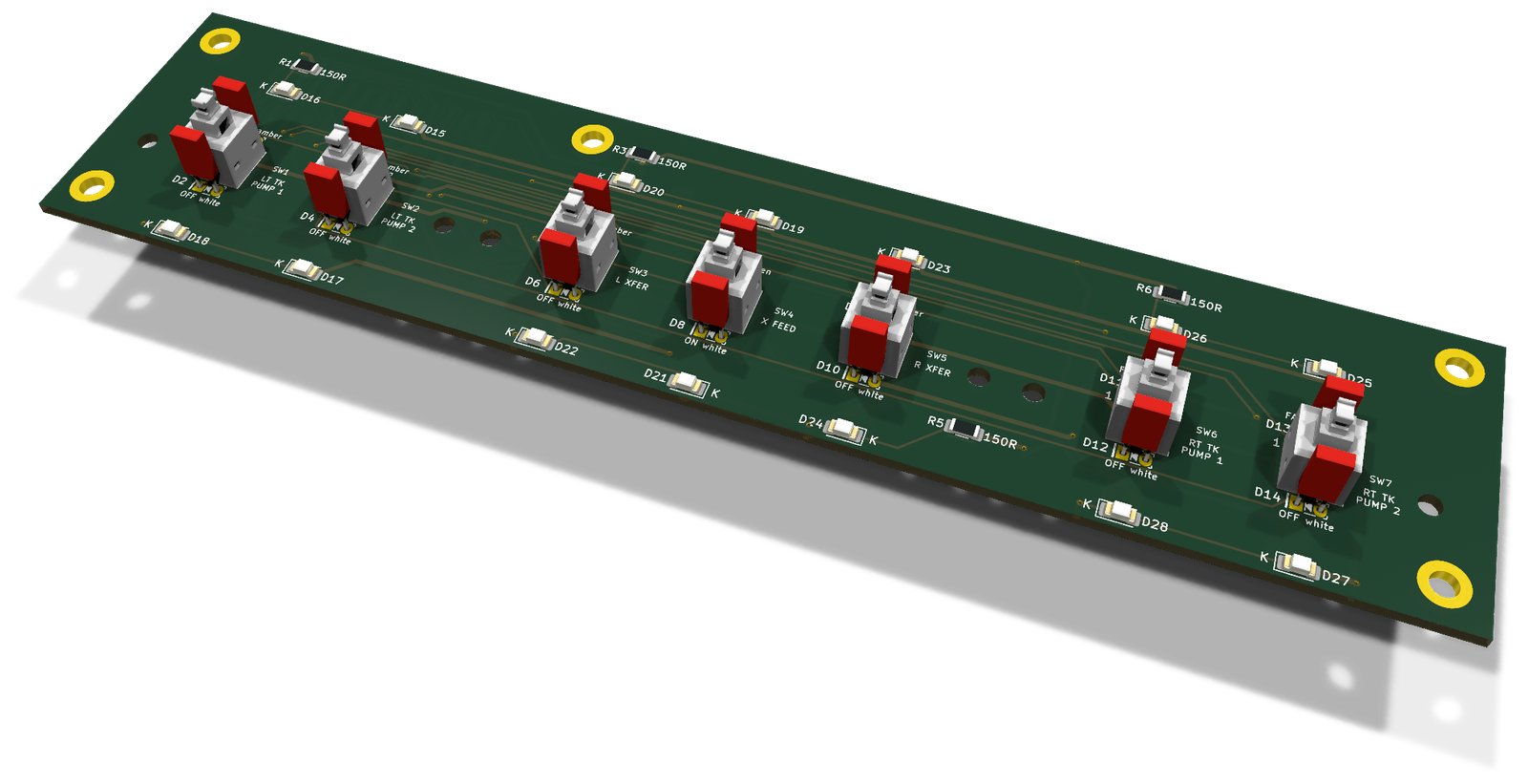

FUEL section board, from the project README
From the project README

FUEL section board bill of materials (BOM)

44 components, 18 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
BATT_1_OLED
FUEL ribbon
J1
1
BATT_2_OLED
Backlight
J2
1
FUEL LT TK PUMP 1
SW1
1
FUEL LT TK PUMP 2
SW2
1
FUEL L XFER
SW3
1
ANTI_ICE_ENG1_SW
FUEL X FEED
SW4
1
ANTI_ICE_ENG2_SW
FUEL R XFER
SW5
1
FUEL RT TK PUMP 1
SW6
1
FUEL RT TK PUMP 2
SW7
6
amber
D1, D3, D5, D9, D11, D13
7
white
D2, D4, D6, D8, D10, D12, D14
1
green
D7
14
LED
D15, D16, D17, D18, D19, D20, D21, D22 +6
2
10K
150
R1, R6
1
1.5K
150
R2
2
150
R3, R4
1
220
150
R5
1
4.7K
150
R7

FUEL section board design files

The KiCad project lives in the stefanofinetti/MF_OverHead_Panel repository on GitHub; these links point at the commit this page was built from.

FUEL section board: common questions

How big is the FUEL section board?

The FUEL section board measures 177.5 × 40 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the FUEL section board?

44 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the FUEL section board design files?

From the stefanofinetti/MF_OverHead_Panel repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the FUEL section board design in my own project?

Yes, under the terms of its GPL-3.0 license, which stefanofinetti chose for the repository.
