About the Helix vape PCB

Helix vape is an open source ESP32 PCB design by stevensun369, published on GitHub. It is a 2-layer board measuring 30 × 97 mm, with 77 components from 51 distinct parts.

Its main chip is the ESP32-C6-MINI-1U, from the ESP32 family. Other key parts include the LM5175PWP, LMR62014XMF, MCP4726, ADS1015IDGS and LP3986-30B3F. By type, the board carries 27 resistors, 18 capacitors, 7 ICs, 4 transistors, 3 connectors and 3 diodes.

It belongs with the power & battery and iot & wireless designs in this gallery.

From the project

KiCad design for an ESP32-C6 buck-boost vape mod power board — LM5175 stage, 1.0–10 V @ 80 W, with full JLCPCB production files.

KiCad hardware design for the Helix temperature-control vape mod: a single-cell, USB-C powered board capable of delivering 1.0–10 V at up to 80 W into a heating coil, with closed-loop current/voltage sensing and an ESP32-C6 running the Helix-FW firmware.

The power stage is based on TI's PMP20410 reference design, re-implemented and integrated with the MCU, sensing, and user-interface circuitry on a single board.

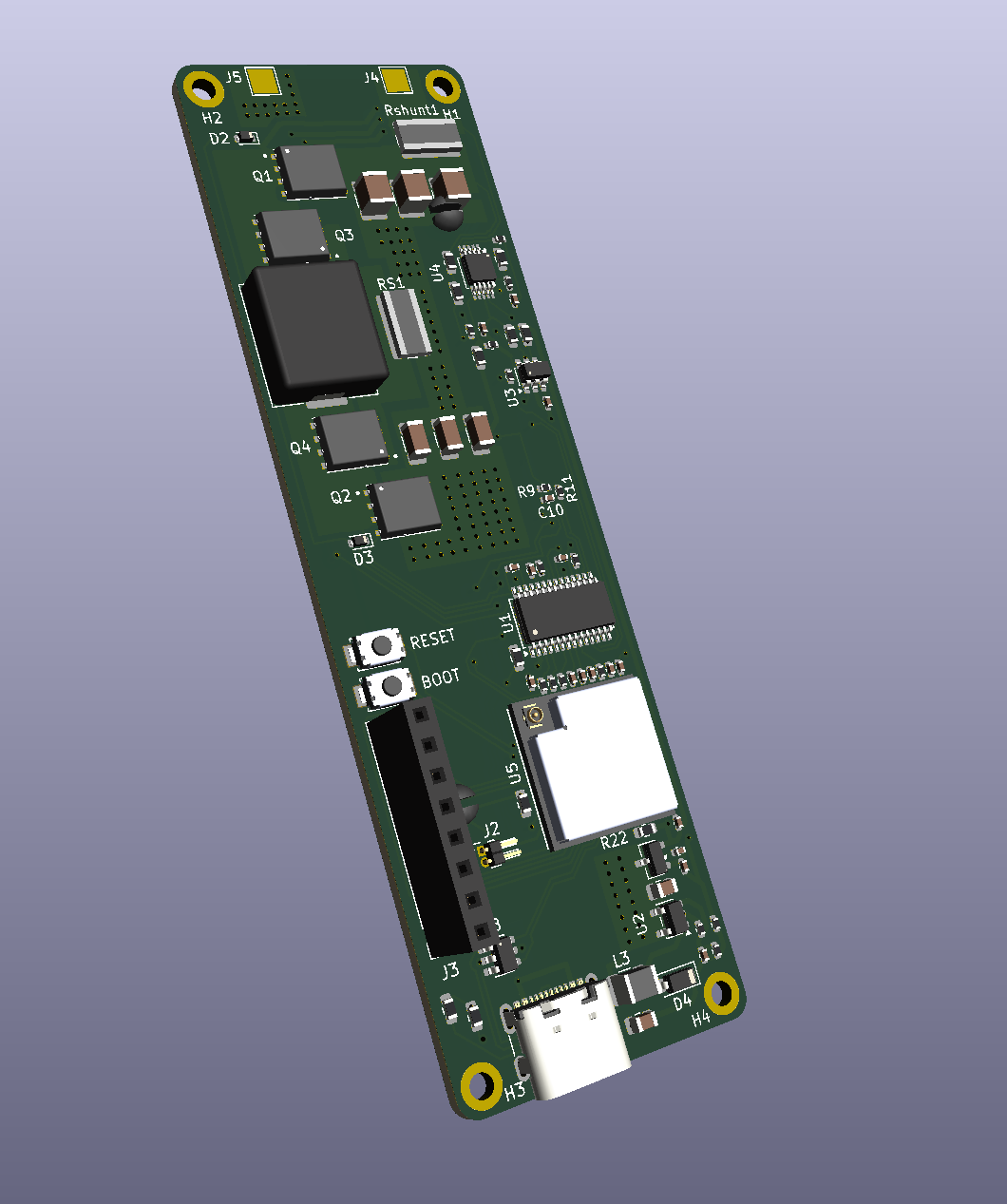

Helix vape, from the project README
From the project README

Main components on the Helix vape

LM5175PWPLMR62014XMFMCP4726ADS1015IDGSESP32-C6-MINI-1ULP3986-30B3FUSBLC6-2SC6

Helix vape bill of materials (BOM)

77 components, 51 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LM5175PWP
U1
1
LMR62014XMF
U2
1
MCP4726
U3
1
ADS1015IDGS
U4
1
ESP32-C6-MINI-1U
U5
1
LP3986-30B3F
U6
1
USBLC6-2SC6
U8
4
BSC010NE2LSI
Q1, Q2, Q3, Q4
1
C2765186
USB-C Receptacle 16P
J1
1
Fire Button
J2
1
OLED 0.96" Display
J3
1
1042
BT1
3
22UF
22uF
Cin1, Cin2, Cin3
2
4.7UF
4.7uF
Cin4, Cout6
3
22UF
22uF
Cout1, Cout2, Cout3
1
2m
RS1
1
10M
10m
Rshunt1
2
SW_Push
SW1, SW2
2
C10037
BASS516,115
D2, D3
1
MBR0520LT1G
D4
Show 31 more
QtyPartRefs
1
C2921223
680nH, 23A, 30A Isat
L1
1
10UH
10uH
L3
2
100PF
100pF
C1, C11
6
0.1UF
0.1uF
C2, C5, C9, C20, C22, C23
2
0.22UF
0.22uF
C3, C6
1
1UF
1uF
C4
1
0.047UF
0.047uF
C7
1
0.022UF
0.022uF
C8
1
220PF
220pF
C10
1
68PF
68pF
C13
1
560PF
560pF
C14
2
2.2UF
2.2uF
C24, C25
3
10
R1, R2, R3
4
10K
10k
R4, R6, R22, R23
1
1.5K
1.5k
R5
1
0
R7
1
47
R8
2
100
R9, R11
1
49.9K
49.9k
R10
1
130K
130k
R13
1
20K
20k
R14
1
5.49K
5.49k
R15
1
16.2K
16.2k
R16
1
49.9K
49.9k
R18
1
6.98K
6.98k
R19
2
5.1K
5.1k
R20, R21
2
4.7K
4.7k
R24, R25
1
120K
120k
R26
1
47K
47k
R27
1
100K
100k
R28
1
200K
200k
R29

Helix vape design files

The KiCad project lives in the stevensun369/helix-vape-pcb repository on GitHub; these links point at the commit this page was built from.

Helix vape: common questions

What microcontroller does the Helix vape use?

The Helix vape is built around the ESP32-C6-MINI-1U, from the ESP32 family.

How big is the Helix vape PCB?

The Helix vape measures 30 × 97 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Helix vape?

77 components, from 51 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Helix vape design files?

From the stevensun369/helix-vape-pcb repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Helix vape design in my own project?

The repository has no license, so all rights stay with stevensun369. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Helix vape without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
