Esp32-c3 PCB layout, top view — open source ESP32 board by TadeasFrycak

About the Esp32-c3 PCB

Esp32-c3 is an open source ESP32 PCB design by TadeasFrycak, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 45.7 × 21.3 mm, with 32 components from 19 distinct parts.

Its main chip is the ESP32-C3, from the ESP32 family. Other key parts include the STF202-22T1G and LD1117S33TR_SOT223. By type, the board carries 14 capacitors, 6 resistors, 3 ICs, 3 connectors, 2 switches and 1 crystal.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

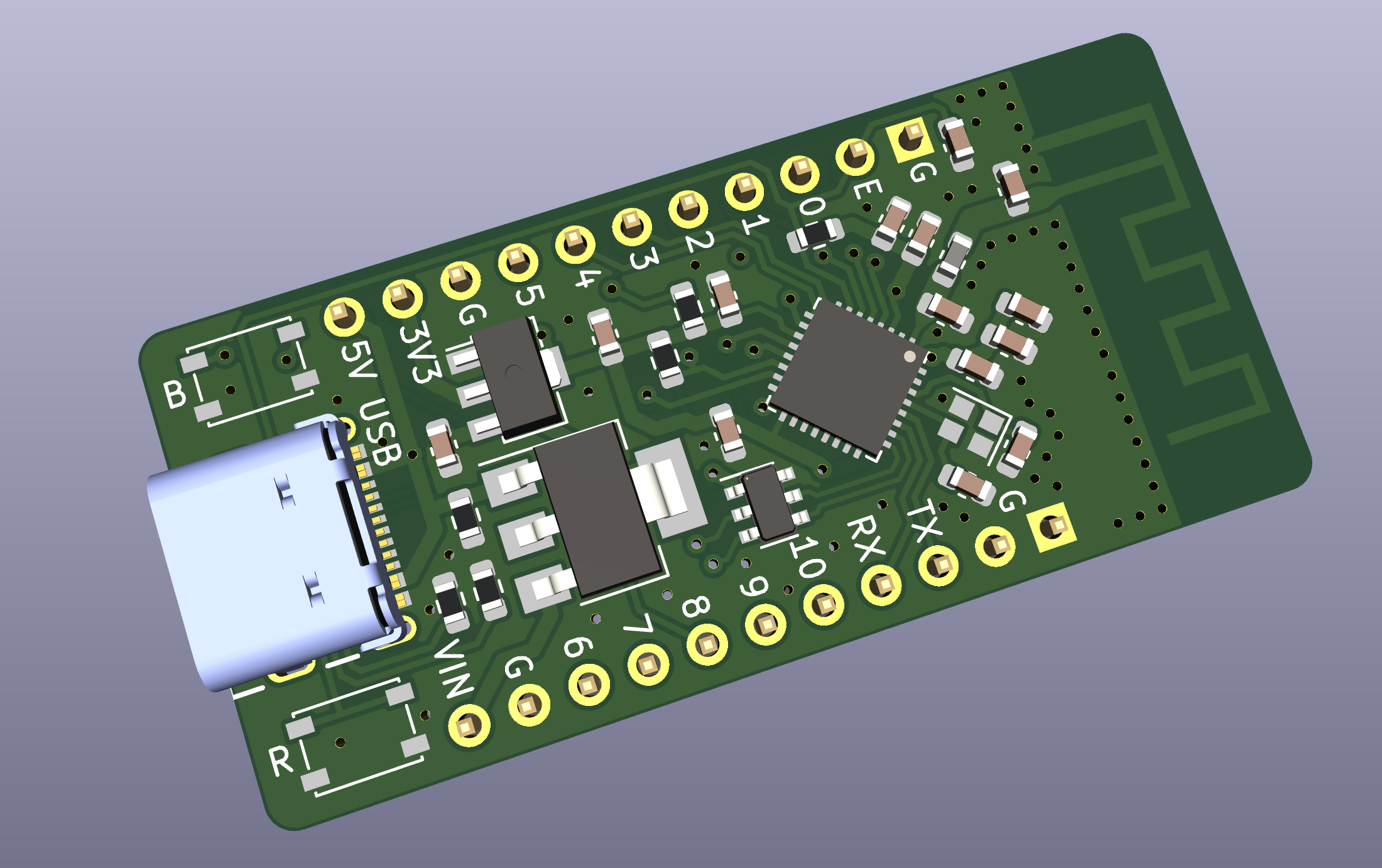

Minimalistic PCB design for ESP32-C3 chip

:warning: Temporary warning: This version of PCB has not been yet validated and it is actively being worked on

Compact and minimalist ESP32-C3 breakout designed in KiCAD

Esp32-c3, from the project README
From the project README

Main components on the Esp32-c3

STF202-22T1GLD1117S33TR_SOT223ESP32-C3

Esp32-c3 bill of materials (BOM)

32 components, 19 distinct parts.

QtyPartRefs
1
STF202-22T1G
IC1
1
LD1117S33TR_SOT223
U1
1
ESP32-C3
U2
1
40MHz
Y1
1
USB4105-GF-A
J1
2
Conn_01x11_Male
J2, J3
1
Antenna_Shield
AE1
2
SW_Push
SW1, SW2
1
BAT120C
D1
1
1.8 nH
L1
3
100n
C1, C6, C10
3
1u
C2, C4, C9
3
10u
C3, C7, C8
1
0.1u
C11
1
3.9 pF
C12
1
5.3pF
C13
2
10p
C14, C15
4
10k
R1, R4, R5, R6
2
5k1
R2, R3

Esp32-c3 design files

The KiCad project lives in the TadeasFrycak/esp32-c3 repository on GitHub; these links point at the commit this page was built from.

Esp32-c3: common questions

What microcontroller does the Esp32-c3 use?

The Esp32-c3 is built around the ESP32-C3, from the ESP32 family.

How big is the Esp32-c3 PCB?

The Esp32-c3 measures 45.7 × 21.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Esp32-c3?

32 components, from 19 distinct parts. The full bill of materials is listed on this page.

Where can I download the Esp32-c3 design files?

From the TadeasFrycak/esp32-c3 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Esp32-c3 design in my own project?

Yes, under the terms of its GPL-3.0 license, which TadeasFrycak chose for the repository.

Can I test firmware for the Esp32-c3 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
