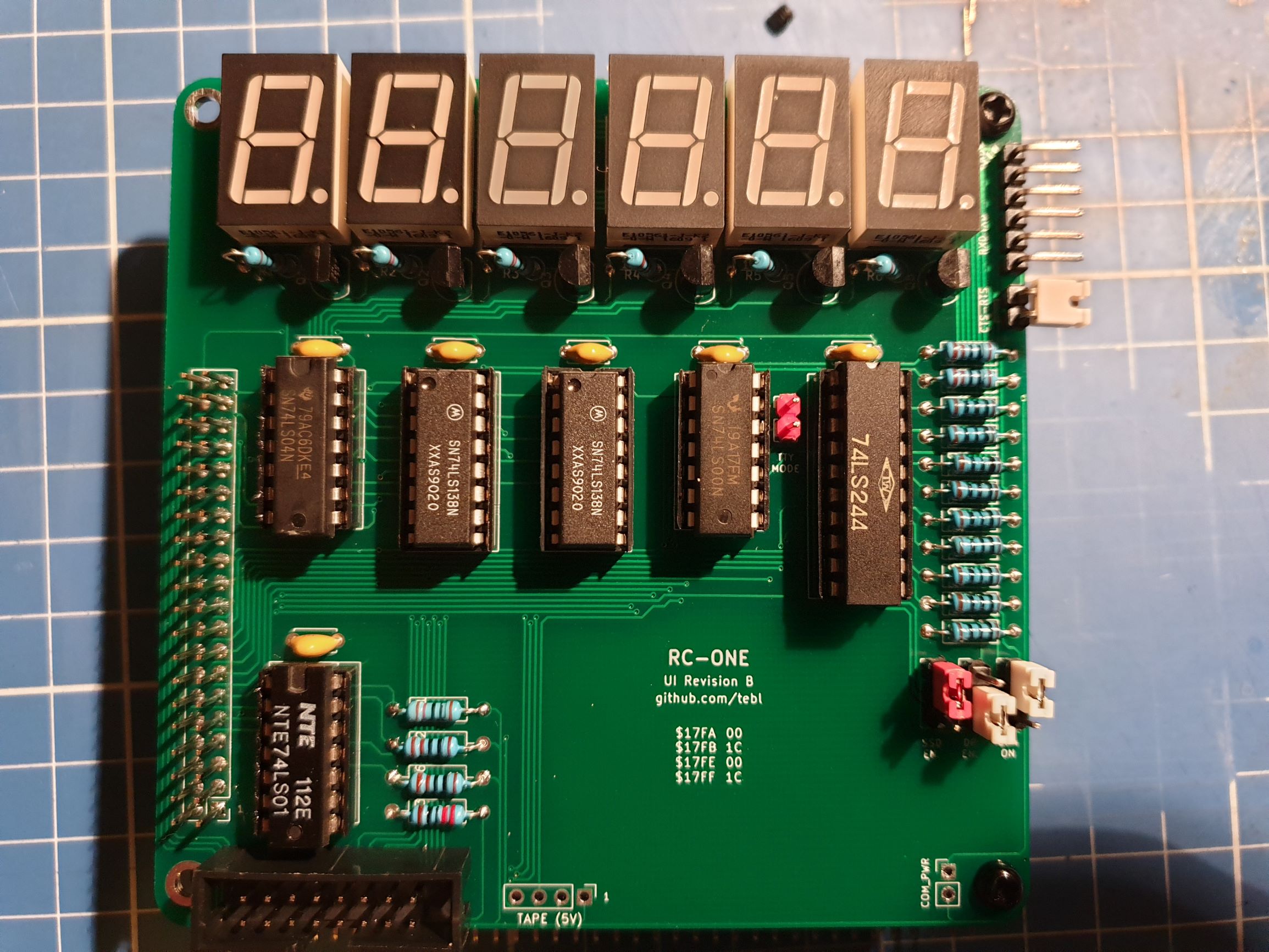

RC1 UI
About the RC1 UI PCB
RC1 UI is an open source PCB design by tebl, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 99.1 × 97.2 mm, with 89 components from 41 distinct parts.
Other key parts include the 74LS138, 74LS01, 74LS00, 74LS04 and 74LS244. By type, the board carries 36 resistors, 11 capacitors, 9 transistors, 7 diodes, 6 ICs and 6 jumpers.
It belongs with the retro computing and displays & leds designs in this gallery.
From the project
A recreation of the MOS KIM-1 microcomputer, the start of the Commodore-line of computers. Complete with hex keypad, six digit displays and a lot of 8-bit fun!
Among the years I've built quite a few computers, some bought as kits from various vendors and some I even designed myself based on available designs describes in books and other technical resources - above all, there was one I really wanted above all of them; the KIM-1! The RC-ONE is a functional replica designed in a modular fashion, for the specifics see the specific module.
Main components on the RC1 UI
RC1 UI bill of materials (BOM)
89 components, 41 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 74LS138 | DIP-16_W7.62mm_Socket | U1, U2 |
| 1 | 74LS01 | DIP-14_W7.62mm_Socket | U3 |
| 1 | 74LS00 | DIP-14_W7.62mm_Socket | U4 |
| 1 | 74LS04 | DIP-14_W7.62mm_Socket | U5 |
| 1 | 74LS244 | DIP-20_W7.62mm_Socket | U6 |
| 4 | Mounting | 1pin | M1, M2, M3, M4 |
| 9 | 2N3904 | TO-92_Molded_Narrow | Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8 +1 |
| 1 | KEYPAD | Pin_Header_Straight_2x08_Pitch2.54mm | J1 |
| 1 | RC1_UI_Port | Pin_Header_Straight_2x20_Pitch2.54mm | J2 |
| 1 | COM | Pin_Header_Angled_1x06_Pitch2.54mm | J3 |
| 1 | TAPE | Tayda_3.5mm_stereo_TRS_jack_A-853 | J4 |
| 1 | COM_PWR | Pin_Header_Straight_1x02_Pitch2.54mm | JP1 |
| 1 | FlowControl | Pin_Header_Angled_1x02_Pitch2.54mm | JP2 |
| 1 | USE_COM | Pin_Header_Straight_1x02_Pitch2.54mm | JP3 |
| 1 | DP_EN | Pin_Header_Straight_1x03_Pitch2.54mm | JP4 |
| 1 | SSD_EN | Pin_Header_Straight_1x03_Pitch2.54mm | JP5 |
| 1 | DP4_EN | Pin_Header_Straight_1x03_Pitch2.54mm | JP6 |
| 1 | DIS1 | 7SegmentLED_LTS6760_LTS6780 | AFF1 |
| 1 | DIS2 | 7SegmentLED_LTS6760_LTS6780 | AFF2 |
| 1 | DIS3 | 7SegmentLED_LTS6760_LTS6780 | AFF3 |
Show 21 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | DIS4 | 7SegmentLED_LTS6760_LTS6780 | AFF4 |
| 1 | DIS5 | 7SegmentLED_LTS6760_LTS6780 | AFF5 |
| 1 | DIS6 | 7SegmentLED_LTS6760_LTS6780 | AFF6 |
| 3 | 1n4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2, D3 |
| 1 | DATA_IN | LED_D5.0mm | D4 |
| 3 | 1n914 | D_DO-35_SOD27_P7.62mm_Horizontal | D5, D6, D7 |
| 7 | 100nF | C_Disc_D4.7mm_W2.5mm_P5.00mm | C1, C2, C3, C4, C5, C6, C11 |
| 2 | 50nF | C_Disc_D4.7mm_W2.5mm_P5.00mm | C7, C9 |
| 1 | 68nF | C_Disc_D4.7mm_W2.5mm_P5.00mm | C8 |
| 1 | 500nF | C_Disc_D4.7mm_W2.5mm_P5.00mm | C10 |
| 10 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R2, R3, R4, R5, R6, R9, R21 +2 |
| 10 | 100 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R7, R8, R10, R14, R15, R16, R17, R18 +2 |
| 2 | 1k5 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R11, R33 |
| 1 | 6k2 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R12 |
| 1 | 220 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R13 |
| 7 | 1k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R22, R23, R25, R26, R29, R30, R31 |
| 1 | 3k3 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R24 |
| 1 | 2k7 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R27 |
| 1 | 6k8 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R32 |
| 1 | 51k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R35 |
| 1 | 2k2 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R36 |
RC1 UI design files
The KiCad project lives in the tebl/RC-ONE repository on GitHub; these links point at the commit this page was built from.
- LayoutRC1 UI/RC1 UI.kicad_pcb
RC1 UI: common questions
How big is the RC1 UI PCB?
The RC1 UI measures 99.1 × 97.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the RC1 UI?
89 components, from 41 distinct parts. The full bill of materials is listed on this page.
Where can I download the RC1 UI design files?
From the tebl/RC-ONE repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the RC1 UI design in my own project?
Yes, under the terms of its CERN-OHL-1.2 license, which tebl chose for the repository.
