BionicBase Teensy 4.1

tgtakaoka·retro-bionic·schematics/base/bionic-base.kicad_pcb

BionicBase Teensy 4.1 PCB layout, top view — open source NXP board by tgtakaoka
Simulate this board

About the BionicBase Teensy 4.1 PCB

BionicBase Teensy 4.1 is an open source NXP PCB design by tgtakaoka, published on GitHub under the Custom license license. It is a 2-layer board measuring 96.5 × 96.5 mm, with 34 components from 16 distinct parts.

Its main chip is the Teensy4.1, from the NXP family. Other key parts include the TXS0108EPW and SN74ACT1071DR. By type, the board carries 12 capacitors, 7 ICs, 7 connectors, 5 resistors, 1 switch and 1 diode.

It belongs with the retro computing designs in this gallery.

From the project

Modern platform to run retro CPUs

Run real vintage CPUs on a modern Cortex-M7 — with a debugger, assembler and disassembler built in.

- CPUs — every target supported and planned, with the variants each detects - Hardware — the board stack, signal naming and the awkward chips - 3.3 V base — planned second base board, its keying and what it unlocks - Debugger — full command reference - Build & run — toolchain, flashing, serial ports - Samples — the programs and how to run them - Demos — recorded terminal sessions for 20 CPUs

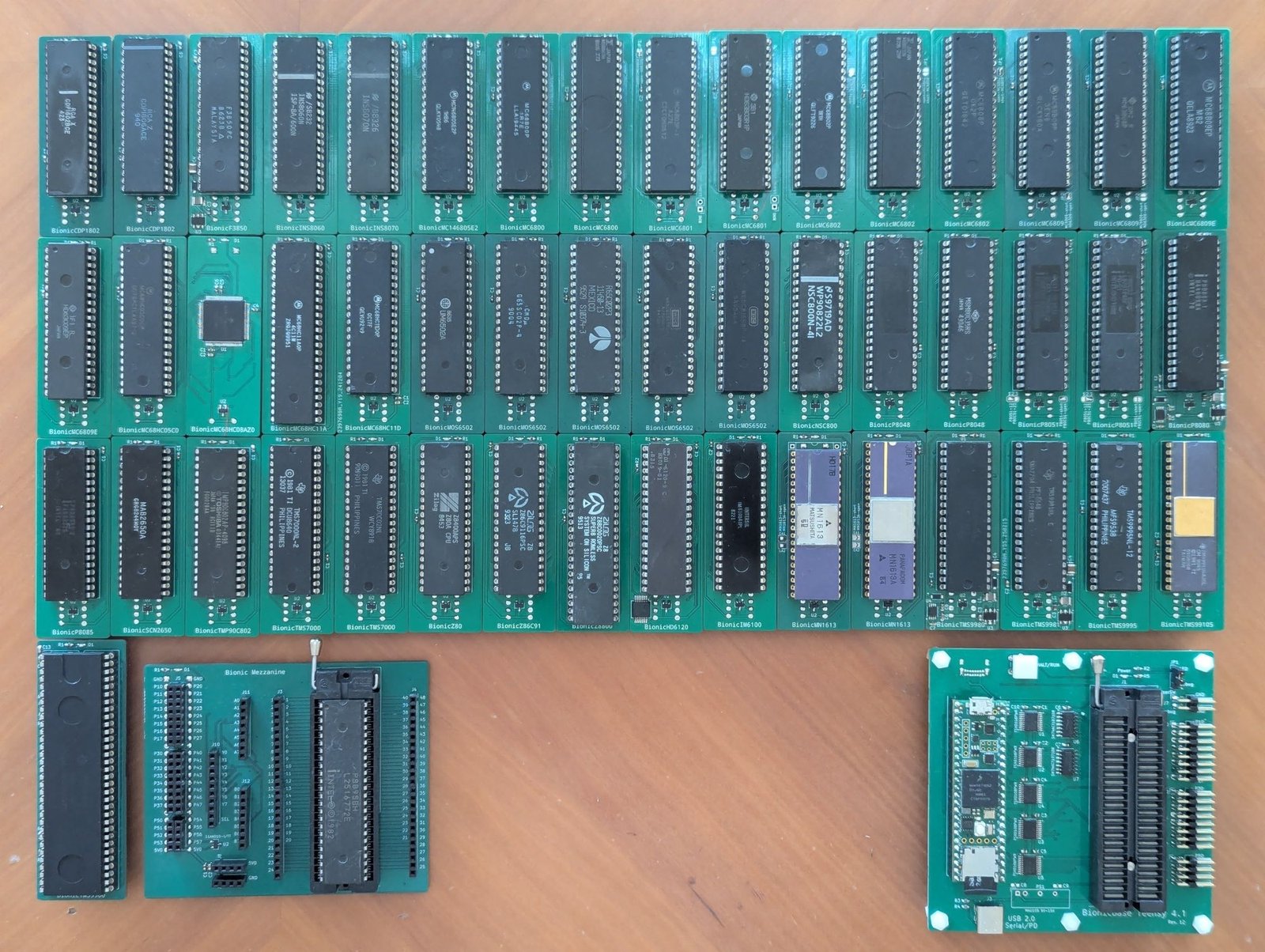

BionicBase Teensy 4.1, from the project README
From the project README

Main components on the BionicBase Teensy 4.1

TXS0108EPWSN74ACT1071DR

BionicBase Teensy 4.1 bill of materials (BOM)

34 components, 16 distinct parts.

QtyPartRefs
5
TXS0108EPW
U1, U2, U3, U4, U5
2
SN74ACT1071DR
U6, U7
1
Bionic_ZIF_Socket_48pin
J1
2
USB_C_USB2.0_16P
J2, J3
1
P1/P2
J4
1
P3/P4
J5
1
P5
J6
1
Debug
J7
1
Teensy4.1
B1
1
USR_SW
SW1
1
CSL1901UW1
D1
12
0.1u
C1, C2, C3, C4, C5, C6, C7, C10 +4
1
4.7k
R1
1
560
R2
2
5.1k
R3, R4
1
1.6k
R5

BionicBase Teensy 4.1 design files

The KiCad project lives in the tgtakaoka/retro-bionic repository on GitHub; these links point at the commit this page was built from.

BionicBase Teensy 4.1: common questions

What microcontroller does the BionicBase Teensy 4.1 use?

The BionicBase Teensy 4.1 is built around the Teensy4.1, from the NXP family.

How big is the BionicBase Teensy 4.1 PCB?

The BionicBase Teensy 4.1 measures 96.5 × 96.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the BionicBase Teensy 4.1?

34 components, from 16 distinct parts. The full bill of materials is listed on this page.

Where can I download the BionicBase Teensy 4.1 design files?

From the tgtakaoka/retro-bionic repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the BionicBase Teensy 4.1 design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.

Can I test firmware for the BionicBase Teensy 4.1 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
