Mta1 usb dev PCB layout, top view — open source FPGA board by tillitis

About the Mta1 usb dev PCB

Mta1 usb dev is an open source FPGA PCB design by tillitis, published on GitHub under the CERN-OHL-S-2.0 license. It is a 4-layer board measuring 91.4 × 40.6 mm, with 83 components from 28 distinct parts.

Its main chip is the ICE40UP5K-SG48ITR, from the FPGA family. Other key parts include the MCP1824T-2502EOT, MIC5258-1.2YM5, MC2016Z48.0000C19XSH, USBLC6-2SC6 and W25Q80DVSNIG. By type, the board carries 29 resistors, 25 capacitors, 10 ICs, 10 connectors, 5 diodes and 2 inductors.

It belongs with the usb & debug tools designs in this gallery.

From the project

PCB files for the open and flexible security key - TKey

This is the original TKey design, intended as a development platform. It is a larger PCB, that connects to a PC via a USB C cable.

- The first ICE40 (Interface FPGA) is connected to a USB C plug, and is loaded with a gateware that contains a soft USB device. This gateware acts as an USB-to-GPIO interface to the second ICE40.

- The second ICE40 (application FPGA) is loaded with a RISC-V soft core containing the security firmware. User applications are run on this gateware.

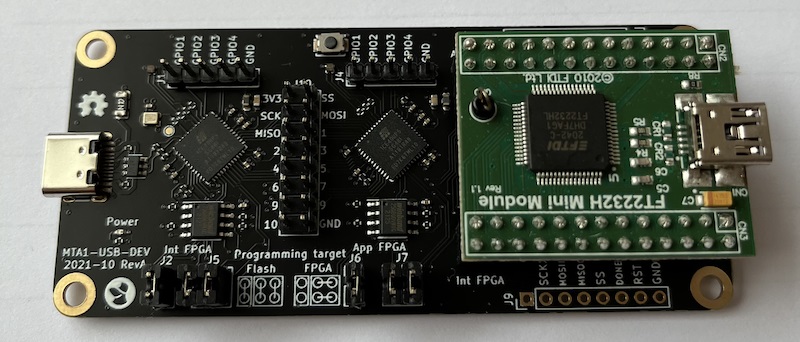

Mta1 usb dev, from the project README
From the project README

Main components on the Mta1 usb dev

MCP1824T-2502EOTMIC5258-1.2YM5ICE40UP5K-SG48ITRMC2016Z48.0000C19XSHUSBLC6-2SC6W25Q80DVSNIGFT2232H_MINI_MODULENCP752BSN33T1G

Mta1 usb dev bill of materials (BOM)

83 components, 28 distinct parts.

QtyPartRefs
1
MCP1824T-2502EOT
U1
1
MIC5258-1.2YM5
U2
2
ICE40UP5K-SG48ITR
U3, U6
1
MC2016Z48.0000C19XSH
U4
1
USBLC6-2SC6
U5
2
W25Q80DVSNIG
U7, U10
1
FT2232H_MINI_MODULE
U8
1
NCP752BSN33T1G
U9
2
—
J1, J4
2
Conn_02x01
J2, J6
1
USB_C_Receptacle_USB2.0
J3
2
Conn_02x02_Top_Bottom
J5, J7
2
Conn_01x08
J8, J9
1
Conn_02x08_Odd_Even
J10
1
100mA (TBD)
F1
1
SW_Push
SW1
1
Power LED
D1
2
LED_ARGB
D2, D3
2
MBR0520
D4, D5
2
BLM18KG300TN1D
FB2, FB3
Show 8 more
QtyPartRefs
8
10uF
C1, C2, C3, C4, C5, C6, C8, C25
17
0.10uF
C7, C9, C10, C11, C12, C13, C14, C15 +9
16
10k
R1, R2, R8, R9, R13, R14, R15, R19 +8
7
1K
R3, R4, R5, R6, R16, R17, R18
1
100
R7
2
22
R10, R11
1
1K5
R12
2
5.1K
R28, R29

Mta1 usb dev design files

The KiCad project lives in the tillitis/tk1-pcba repository on GitHub; these links point at the commit this page was built from.

Mta1 usb dev: common questions

What microcontroller does the Mta1 usb dev use?

The Mta1 usb dev is built around the ICE40UP5K-SG48ITR, from the FPGA family.

How big is the Mta1 usb dev PCB?

The Mta1 usb dev measures 91.4 × 40.6 mm, has 4 copper layers and is 1.62 mm thick.

How many components are on the Mta1 usb dev?

83 components, from 28 distinct parts. The full bill of materials is listed on this page.

Where can I download the Mta1 usb dev design files?

From the tillitis/tk1-pcba repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Mta1 usb dev design in my own project?

Yes, under the terms of its CERN-OHL-S-2.0 license, which tillitis chose for the repository.

Can I test firmware for the Mta1 usb dev without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
