About the BigBoy PCB
BigBoy is an open source STM32 PCB design by transistorfet, published on GitHub under the MIT license. It is a 4-layer board measuring 160 × 100 mm, with 120 components from 45 distinct parts.
Its main chip is the STM32H743BITx, from the STM32 family. Other key parts include the AP7361EA-33E-13, KC3225Z25.0000C1KX00, LAN8742A, 74ALVC164245DG and Hirose PCN10-128P-2.54DS(72). By type, the board carries 44 capacitors, 36 resistors, 14 connectors, 10 ICs, 6 jumpers and 3 diodes.
It belongs with the retro computing designs in this gallery.
From the project
A collection of VME-based hardware and software for modular computers
Status: Built & Tested but with design issues (see errata)

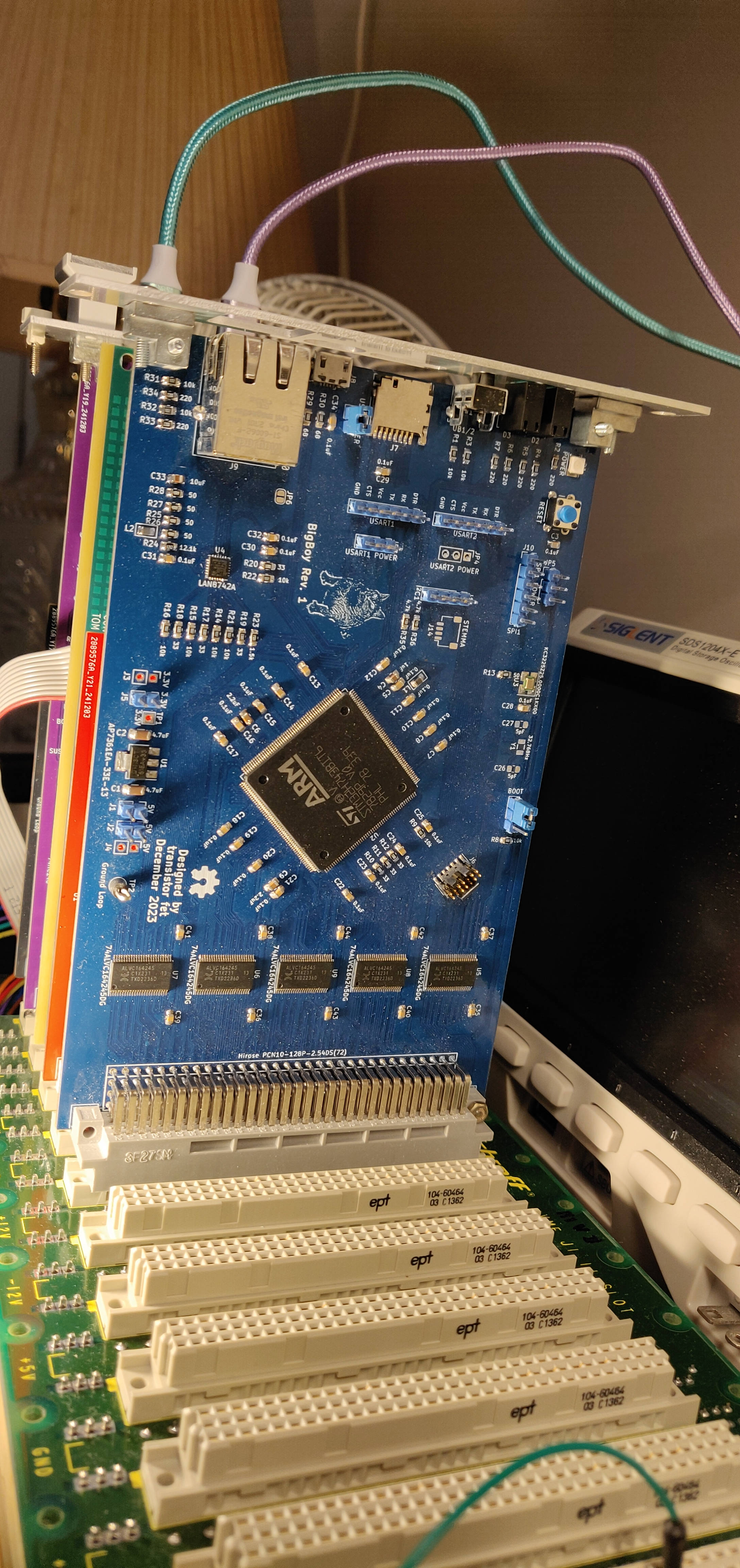

A generic card with an STM32H7 microcontroller on it that interfaces to the VME bus using GPIO. I had intended to use it as a bus analyzer, but it's a bit too slow for the k30p CPU at 12.5MHz.

Main components on the BigBoy
BigBoy bill of materials (BOM)
120 components, 45 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AP7361EA-33E-13 | SOT-223 | U1 |
| 1 | STM32H743BITx | LQFP-208_28x28mm_P0.5mm | U2 |
| 1 | KC3225Z25.0000C1KX00 | Crystal_SMD_3225-4Pin_3.2x2.5mm_HandSoldering | U3 |
| 1 | LAN8742A | VQFN-24-1EP_4x4mm_P0.5mm_EP2.5x2.5mm_ThermalVias | U4 |
| 5 | 74ALVC164245DG | TSSOP-48_6.1x12.5mm_P0.5mm | U5, U6, U7, U8, U9 |
| 1 | Hirose PCN10-128P-2.54DS(72) | DIN41612_C_4x32_Male_Horizontal_THT | U10 |
| 1 | 32,768Hz | Crystal_SMD_3215-2Pin_3.2x1.5mm | Y1 |
| 3 | 5V | PinHeader_1x02_P2.54mm_Vertical | J1, J2, J4 |
| 2 | 3.3V | PinHeader_1x02_P2.54mm_Vertical | J3, J5 |
| 1 | Conn_ST_STDC14 | PinHeader_2x07_P1.27mm_Vertical_SMD | J6 |
| 1 | Hirose DM3D-SF | microSD_HC_Hirose_DM3D-SF | J7 |
| 1 | Amphenol 10118194-0001LF | USB_Micro-B_Amphenol_10118194_Horizontal | J8 |
| 1 | Bel SI-60062-F | RJ45_Bel_SI-60062-F | J9 |
| 1 | SPI1 | PinHeader_1x06_P2.54mm_Vertical | J10 |
| 1 | I^{2}C1 | PinHeader_1x04_P2.54mm_Vertical | J11 |
| 1 | USART1 | PinHeader_1x06_P2.54mm_Vertical | J12 |
| 1 | USART2 | PinHeader_1x06_P2.54mm_Vertical | J13 |
| 1 | STEMMA | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | J14 |
| 1 | BOOT | PinHeader_1x03_P2.54mm_Vertical | JP1 |
| 1 | USB POWER | PinHeader_1x02_P2.54mm_Vertical | JP2 |
Show 25 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | USART1 POWER | PinHeader_1x03_P2.54mm_Vertical | JP3 |
| 1 | USART2 POWER | PinHeader_1x03_P2.54mm_Vertical | JP4 |
| 1 | SPI1 POWER | PinHeader_1x03_P2.54mm_Vertical | JP5 |
| 1 | SH | SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm | JP6 |
| 1 | UB1/2 | E-Switch_TL2243 | SW1 |
| 1 | RESET | SW_PUSH_6mm | SW2 |
| 1 | 3.3V | TestPoint_THTPad_2.0x2.0mm_Drill1.0mm | TP1 |
| 1 | Ground Loop | TestPoint_Loop_D2.60mm_Drill1.6mm_Beaded | TP2 |
| 1 | POWER | LED_PLCC-2_3.4x3.0mm_KA | D1 |
| 2 | Harvatek HV-32312 | Harvatek_HV-32312-260-2SUB | D2, D3 |
| 2 | 600Ω @ 100MHz (MI0805K601R-10) | Ferrite_0805_2012Metric_Pad1.15x1.40mm_BigPads | L1, L2 |
| 2 | 4.7uF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C1, C2 |
| 36 | 0.1uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C3, C5, C7, C8, C10, C11, C12, C13 +28 |
| 1 | 1uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C4 |
| 2 | 2.2uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C6, C9 |
| 2 | 5pF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C26, C27 |
| 1 | 10uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C33 |
| 11 | 10k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R3, R8, R9, R14, R15, R16, R21 +3 |
| 7 | 220 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R2, R4, R5, R6, R7, R33, R34 |
| 7 | 33 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R10, R11, R12, R17, R18, R19, R20 |
| 5 | 50 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R13, R25, R26, R27, R28 |
| 1 | 1.5k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R23 |
| 1 | 12.1k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R24 |
| 2 | 68 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R29, R30 |
| 2 | 4.7k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R35, R36 |
BigBoy design files
The KiCad project lives in the transistorfet/retroverse repository on GitHub; these links point at the commit this page was built from.
BigBoy: common questions
What microcontroller does the BigBoy use?
The BigBoy is built around the STM32H743BITx, from the STM32 family.
How big is the BigBoy PCB?
The BigBoy measures 160 × 100 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the BigBoy?
120 components, from 45 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the BigBoy design files?
From the transistorfet/retroverse repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the BigBoy design in my own project?
Yes, under the terms of its MIT license, which transistorfet chose for the repository.
Can I test firmware for the BigBoy without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
