About the SystemBoardSMT PCB
SystemBoardSMT is an open source PCB design by transistorfet, published on GitHub under the MIT license. It is a 4-layer board measuring 100 × 100 mm, with 30 components from 16 distinct parts.
Other key parts include the ATF1508AS-xxAx100, 74HC14 and VME64-P1-3R. By type, the board carries 12 capacitors, 7 resistors, 3 ICs, 3 connectors, 2 diodes and 1 crystal.
It belongs with the retro computing designs in this gallery.
From the project
A collection of VME-based hardware and software for modular computers
Status: Built & Tested, with minor issues (see errata)

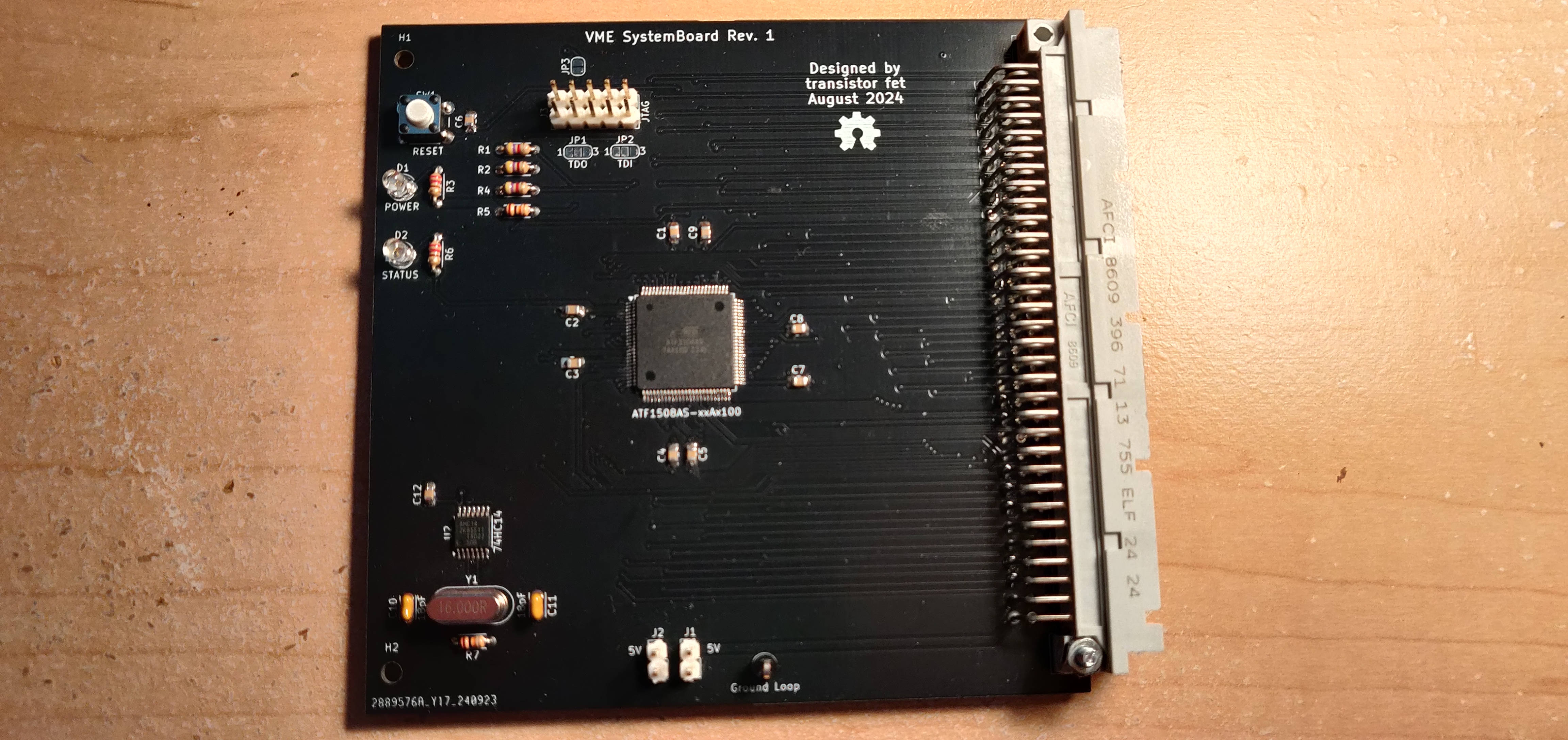

A somewhat generic card with an ATF1508 programmable logic device, which is intended to act as the system board of the VME bus, handling the resolution and granting of the bus during bus arbitration, and interrupt acknowledging. It has a clock and a reset button, which can be programmed in the logic to reset all devices on the bus.

Main components on the SystemBoardSMT
SystemBoardSMT bill of materials (BOM)
30 components, 16 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ATF1508AS-xxAx100 | TQFP-100_14x14mm_P0.5mm | U1 |
| 1 | 74HC14 | TSSOP-14_4.4x5mm_P0.65mm | U2 |
| 1 | VME64-P1-3R | DIN41612_C_3x32_Male_Horizontal_THT | U3 |
| 1 | Crystal | Crystal_HC49-4H_Vertical | Y1 |
| 2 | 5V | PinHeader_1x02_P2.54mm_Vertical | J1, J2 |
| 1 | JTAG | PinHeader_2x05_P2.54mm_Vertical | J3 |
| 1 | RESET | SW_PUSH_6mm | SW1 |
| 1 | Ground Loop | TestPoint_Loop_D2.60mm_Drill1.6mm_Beaded | TP1 |
| 1 | POWER | LED_D3.0mm | D1 |
| 1 | STATUS | LED_D3.0mm | D2 |
| 10 | 0.1uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C2, C3, C4, C5, C6, C7, C8 +2 |
| 2 | 18pF | C_Disc_D3.0mm_W2.0mm_P2.50mm | C10, C11 |
| 3 | 4.7k | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R1, R2, R4 |
| 2 | 220 | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R3, R6 |
| 1 | 10k | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R5 |
| 1 | 15k | R_Axial_DIN0204_L3.6mm_D1.6mm_P5.08mm_Horizontal | R7 |
SystemBoardSMT design files
The KiCad project lives in the transistorfet/retroverse repository on GitHub; these links point at the commit this page was built from.
SystemBoardSMT: common questions
How big is the SystemBoardSMT PCB?
The SystemBoardSMT measures 100 × 100 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the SystemBoardSMT?
30 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the SystemBoardSMT design files?
From the transistorfet/retroverse repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the SystemBoardSMT design in my own project?
Yes, under the terms of its MIT license, which transistorfet chose for the repository.
