6-Slot-Backplane
transistorfet·retroverse·components/backplane/6-Slot-Backplane/6-Slot-Backplane.kicad_pcb
About the 6-Slot-Backplane PCB
6-Slot-Backplane is an open source PCB design by transistorfet, published on GitHub under the MIT license. It is a 4-layer board measuring 262.2 × 200.3 mm, with 115 components from 21 distinct parts.
Other key parts include the TCA0372_Dual_OpAmp and 74ACT32. By type, the board carries 61 resistors, 30 jumpers, 9 ICs, 8 connectors and 7 capacitors.
It belongs with the retro computing designs in this gallery.

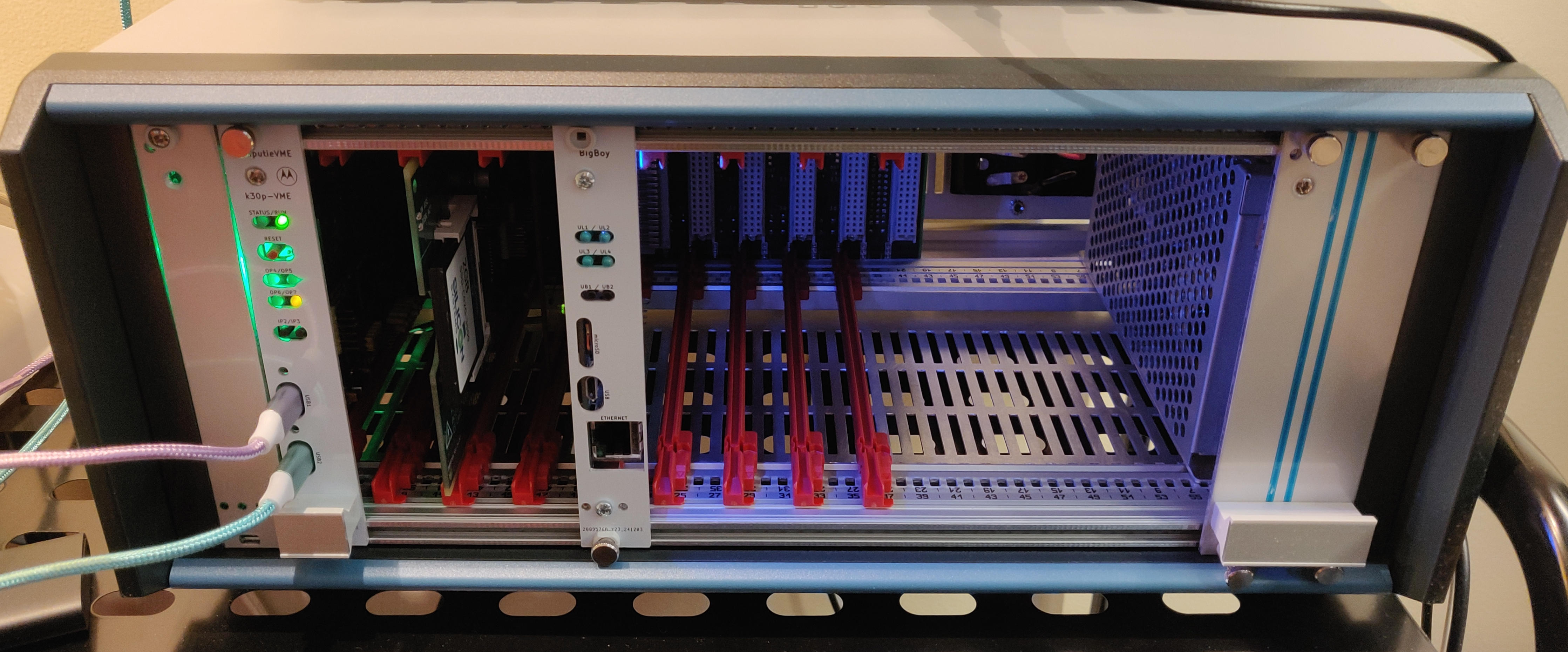

From the project
A collection of VME-based hardware and software for modular computers
A collection of computer cards using the VME bus as a common backplane, in the style of modular computer equipment, laboratory test equipment, and industrial controls systems. The project name is a combination of Retro-computers (newly designed and built computers that are based on old CPUs and parts), and Versa (the V in VME, which stands for Versa Module Eurocard).

Main components on the 6-Slot-Backplane
6-Slot-Backplane bill of materials (BOM)
115 components, 21 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | TCA0372_Dual_OpAmp | SOIC-16W_7.5x10.3mm_P1.27mm | U1, U2 |
| 7 | 74ACT32 | SOIC-14_3.9x8.7mm_P1.27mm | U3, U4, U5, U6, U7, U8, U9 |
| 6 | VME-J1-4R-NS | DIN41612_C_4x32_Female_Vertical_THT | J1, J2, J3, J4, J5, J6 |
| 1 | ATX-24 | TE_1-1775099-3_ATX_24_Pin_PowerSupply | J101 |
| 1 | SYSTEM MONITOR | PinHeader_1x05_P2.54mm_Vertical | J107 |
| 1 | BR0 LOOPBACK | PinHeader_1x02_P2.54mm_Vertical | JP9 |
| 1 | BR1 LOOPBACK | PinHeader_1x02_P2.54mm_Vertical | JP10 |
| 1 | BR2 LOOPBACK | PinHeader_1x02_P2.54mm_Vertical | JP11 |
| 1 | BR3 LOOPBACK | PinHeader_1x02_P2.54mm_Vertical | JP12 |
| 1 | IACK LOOPBACK | PinHeader_1x02_P2.54mm_Vertical | JP13 |
| 5 | BG0 | PinHeader_1x02_P2.54mm_Vertical | JP14, JP19, JP24, JP29, JP34 |
| 5 | BG1 | PinHeader_1x02_P2.54mm_Vertical | JP15, JP20, JP25, JP30, JP35 |
| 5 | BG2 | PinHeader_1x02_P2.54mm_Vertical | JP16, JP21, JP26, JP31, JP36 |
| 5 | BG3 | PinHeader_1x02_P2.54mm_Vertical | JP17, JP22, JP27, JP32, JP37 |
| 5 | IACK | PinHeader_1x02_P2.54mm_Vertical | JP18, JP23, JP28, JP33, JP38 |
| 3 | 10uF | CP_Radial_D8.0mm_P5.00mm | C1, C3, C5 |
| 4 | 4.7uF | CP_Radial_D5.0mm_P2.00mm | C14, C16, C22, C24 |
| 6 | 470 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R4, R6, R8, R20, R22 |
| 6 | 330 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R2, R3, R5, R7, R19, R21 |
| 25 | 82k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R9, R10, R11, R12, R13, R14, R15, R16 +17 |
Show 1 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 24 | 4610X-104-331/471L | PinHeader_1x10_P2.54mm_Vertical | RN1, RN2, RN3, RN4, RN5, RN6, RN7, RN8 +16 |
6-Slot-Backplane design files
The KiCad project lives in the transistorfet/retroverse repository on GitHub; these links point at the commit this page was built from.
6-Slot-Backplane: common questions
How big is the 6-Slot-Backplane PCB?
The 6-Slot-Backplane measures 262.2 × 200.3 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the 6-Slot-Backplane?
115 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the 6-Slot-Backplane design files?
From the transistorfet/retroverse repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the 6-Slot-Backplane design in my own project?
Yes, under the terms of its MIT license, which transistorfet chose for the repository.
