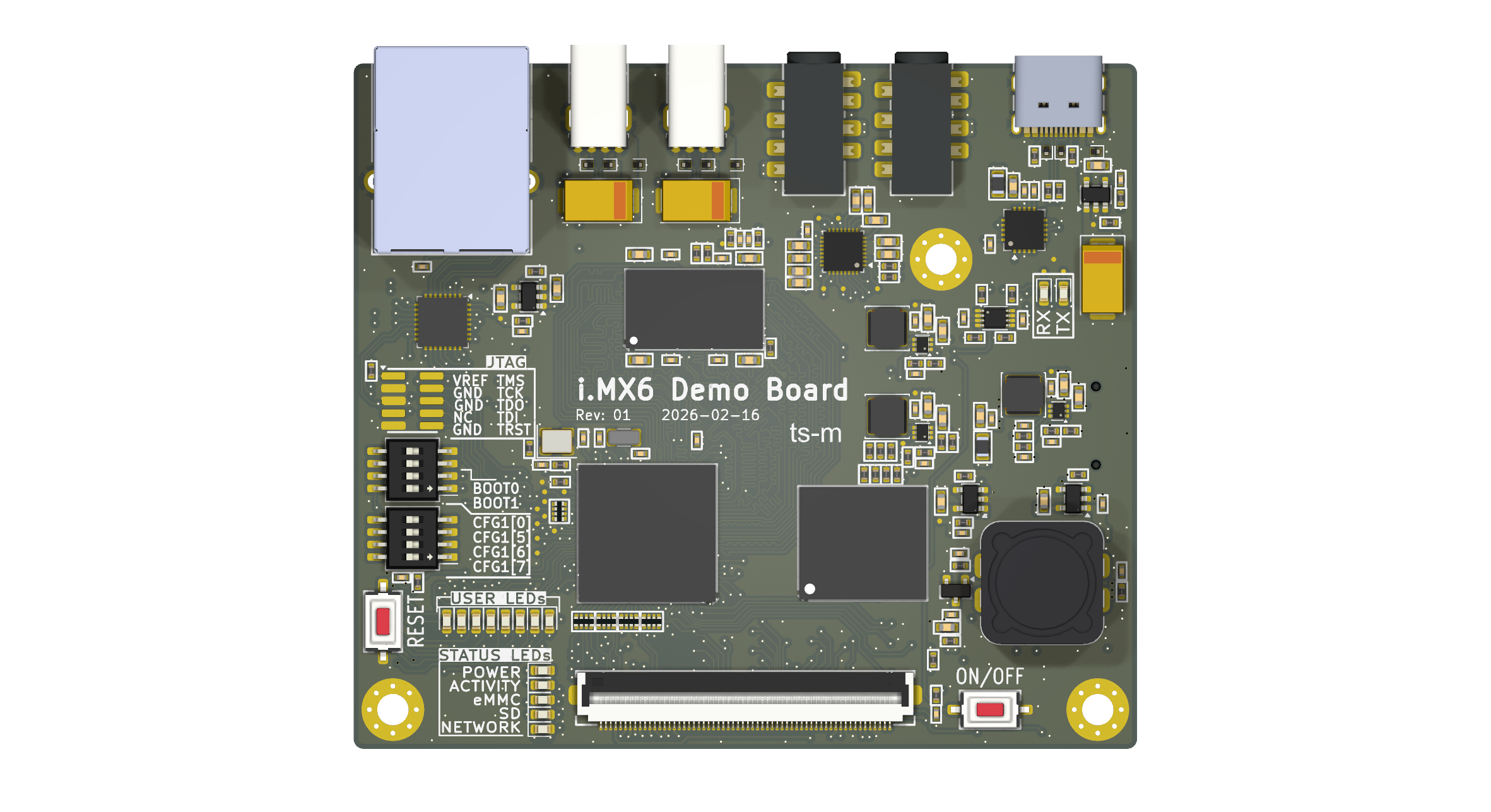

I.MX6 Demo Board
About the I.MX6 Demo Board
I.MX6 Demo Board is an open source PCB design by ts-manuel, published on GitHub under the GPL-3.0 license. It is a 6-layer board measuring 80 × 70 mm, with 455 components from 72 distinct parts.
Other key parts include the AP2127K-ADJTRG1, MT9700, SY8892ARC, MCIMX6Y2CVM08AB and UM803RS. By type, the board carries 207 resistors, 156 capacitors, 36 diodes, 22 ICs, 13 inductors and 9 connectors.
It belongs with the audio and displays & leds designs in this gallery.
From the project
Demo board for the i.MX6ULL Single-Core Processor with Arm Cortex-A7 Core
Status: In Progress. Development of the custom meta-layer and bitbake recipes is currently underway.
Main components on the I.MX6 Demo Board
I.MX6 Demo Board bill of materials (BOM)
455 components, 72 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | AP2127K-ADJTRG1 Diodes Incorporated | SOT-23-5 | U1, U4 |
| 4 | MT9700 XI'AN Aerosemi Tech | SOT-23-5 | U2, U13, U14, U17 |
| 3 | SY8892ARC Silergy | SOT-563 | U3, U5, U6 |
| 1 | MCIMX6Y2CVM08AB NXP | BGA-289P08L17x17_14.0x14.0mm_Ball0.35mm_Pad0.30mm | U7 |
| 1 | UM803RS Union Semiconductor | SOT-23 | U8 |
| 1 | MT41K256M16TW-107 Micron Tech | BGA-96P08L9X16_8.0X14.0mm_Ball0.45_Pad0.40mm | U9 |
| 1 | THGBMNG5D1LBAIL Kioxia | BGA-153_13.0x11.5mm_Ball0.30mm_Pad0.25mm | U10 |
| 1 | ZD25WQ32CTIGT Zetta | SOP-8_3.9x4.9mm_P1.27mm | U11 |
| 1 | IP4252CZ16-8-TTL Nexperia | Nexperia_HUSON-16_USON-16-1EP_1.35x3.3mm_P0.4mm_EP0.4x2.8mm | U12 |
| 1 | KSZ8081RNBIA-TR Microchip | QFN-32-1EP_5x5mm_P0.5mm_EP3.1x3.1mm | U15 |
| 1 | WM8904CGEFL/RV Cirrus Logic | QFN-32-1EP_4x4mm_P0.4mm_EP2.65x2.65mm | U16 |
| 1 | TPS65150PWPR Texas Instruments | HTSSOP-24-1EP_4.4x7.8mm_P0.65mm_EP3.4x7.8mm_Mask2.4x4.68mm | U18 |
| 1 | LMV321IDBVR Texas Instruments | SOT-23-5 | U19 |
| 1 | TXS0102DCUR Texas Instruments | VSSOP-8_2.3x2mm_P0.5mm | U20 |
| 1 | FT231XQ FTDI | QFN-20-1EP_4x4mm_P0.5mm_EP2.5x2.5mm | U21 |
| 1 | 74HC595D,118 Nexperia | SO-16_3.9x9.9mm_P1.27mm | U22 |
| 1 | NTR5105PT1G ON Semi | SOT-23 | Q1 |
| 5 | SMMBT3904LT1G ON Semi | SOT-23 | Q2, Q3, Q4, Q5, Q6 |
| 1 | ECS-3225MV-240-CN-TR 24 MHz ECS | Crystal_SMD_EuroQuartz_MT-4Pin_3.2x2.5mm | Y1 |
| 1 | SC-32S32.768kHz20PPM12.5pF 32.768 KHz Seiko | QUARTZ-SC-32S32.768kHz20PPM12.5pF | Y2 |
Show 52 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | PJ-393 8PJ SHOU HAN | Jack_SMD_3.5mm_PJ-393-8PJ | CN1, CN2 |
| 1 | USB4105-GF-A GCT | USB-TYPE-C-12P | CN6 |
| 1 | GT-TF003-H0185-01 G-SwitchnG-Switch | MicroSD_G-Switch _GT-TF003-H0185-01 | J1 |
| 1 | HR911105A HANRUN | RJ45_THT-HR911105A | J2 |
| 2 | 906-762B1026D10200 Jing Extension of the Electronic Co. | USB-TypeA-906-762B1026D10200 | J3, J4 |
| 1 | 10129383-910002ALF Amphenol | CN-SMD-2x5P-1.27MM | J5 |
| 1 | 8.15A0.060200 DIANWEI | CN-FPC-60P_0.5mm_Bot_8.15A0.060200 | J6 |
| 2 | PTS636 SK25 SMTR LFS C&K | BTN_SMD_PTS636-SK25-SMTR-LFS | PB1, PB2 |
| 2 | EP-04KS Korean Hroparts Elec | SW_DIP_SPSTx04_Slide_Copal_CHS-04B_W7.62mm_P1.27mm | SW1, SW2 |
| 17 | LESD8D5.0CAT5G LCR | D_SOD-882 | D1, D2, D3, D4, D5, D6, D7, D8 +9 |
| 4 | BAT54S hongjiacheng | SOT-23 | D15, D16, D17, D18 |
| 2 | 150060RS75003 Wurth | LED_0603_1608Metric | D20, D24 |
| 13 | 150060VS75000 Wurth | LED_0603_1608Metric | D21, D25, D26, D27, D28, D30, D31, D32 +5 |
| 9 | GZ2012D101TF Sunlord | FB-0805 | FB1, FB2, FB3, FB4, FB5, FB6, FB7, FB8 +1 |
| 3 | FNR4020S270MT 27 uH Cjiang | IND-SMD-FNR4020S | L1, L2, L3 |
| 1 | ACPR1208S6R8MT 6.8 uH Sunlord | IND-SMD-ACPR1208S | L4 |
| 16 | 1 uF Generic | CAP-0603 | C1, C2, C8, C9, C16, C20, C63, C128 +8 |
| 1 | 220 pF Generic | CAP-0402 | C3 |
| 33 | 2.2 uF Generic | CAP-0603 | C4, C6, C14, C18, C51, C70, C71, C72 +25 |
| 3 | TAJD157K010RNJ 150 uF AVX | CP_EIA-7343-31_Kemet-D | C5, C90, C92 |
| 16 | 100 nF Generic | CAP-0402 | C7, C12, C13, C15, C19, C57, C58, C99 +8 |
| 11 | 22 pF Generic | CAP-0402 | C10, C17, C21, C65, C66, C67, C68, C123 +3 |
| 3 | 560 pF Generic | CAP-0402 | C11, C47, C48 |
| 4 | 2.2 nF Generic | CAP-0402 | C22, C134, C137, C138 |
| 57 | 220 nF Generic | CAP-0402 | C23, C24, C26, C28, C29, C30, C31, C32 +49 |
| 7 | 22 uF Generic | CAP-0603 | C25, C27, C34, C37, C61, C93, C96 |
| 3 | 10 uF Generic | CAP-0603 | C36, C40, C43 |
| 2 | 2.2 pF Generic | CAP-0402 | C103, C104 |
| 1 | 56.2K Generic | RES-0402 | R1 |
| 5 | 18K Generic | RES-0402 | R2, R6, R8, R9, R10 |
| 6 | 82K Generic | RES-0402 | R3, R5, R11, R12, R15, R116 |
| 1 | 24K Generic | RES-0402 | R4 |
| 59 | 10K Generic | RES-0402 | R7, R23, R24, R29, R43, R44, R45, R49 +51 |
| 2 | 68K Generic | RES-0402 | R13, R16 |
| 1 | 4.7K Generic | RES-0402 | R14 |
| 3 | 240R Generic | RES-0402 | R17, R41, R42 |
| 21 | 220R Generic | RES-0402 | R18, R39, R63, R64, R99, R100, R101, R106 +13 |
| 11 | C17168 0R Generic | RES-0402 | R21, R25, R104, R105, R107, R108, R117, R119 +3 |
| 23 | 1.5K Generic | RES-0402 | R22, R46, R47, R59, R60, R70, R71, R76 +15 |
| 10 | 22R Generic | RES-0402 | R26, R38, R95, R96, R181, R182, R183, R184 +2 |
| 1 | 1M Generic | RES-0402 | R40 |
| 1 | 470R Generic | RES-0402 | R48 |
| 1 | 6.49K Generic | RES-0402 | R65 |
| 27 | 10K Generic | RES-0402 | R67, R68, R73, R74, R78, R84, R131, R132 +19 |
| 3 | 1.5K Generic | RES-0402 | R69, R75, R82 |
| 4 | 100K Generic | RES-0402 | R90, R91, R217, R218 |
| 2 | 62K Generic | RES-0402 | R102, R115 |
| 4 | 680K Generic | RES-0402 | R103, R113, R114, R118 |
| 1 | 0R Generic | RES-0402 | R109 |
| 9 | 47K Generic | RES-0402 | R110, R121, R122, R124, R125, R127, R128, R129 +1 |
| 2 | 5.1K Generic | RES-0402 | R189, R190 |
| 9 | 22R Generic | R_Array_Convex_4x0402 | RN1, RN9, RN10, RN11, RN12, RN13, RN14, RN15 +1 |
I.MX6 Demo Board design files
The KiCad project lives in the ts-manuel/iMX6-Demo-Board repository on GitHub; these links point at the commit this page was built from.
I.MX6 Demo Board: common questions
How big is the I.MX6 Demo Board?
The I.MX6 Demo Board measures 80 × 70 mm, has 6 copper layers and is 1.5508 mm thick.
How many components are on the I.MX6 Demo Board?
455 components, from 72 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the I.MX6 Demo Board design files?
From the ts-manuel/iMX6-Demo-Board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the I.MX6 Demo Board design in my own project?
Yes, under the terms of its GPL-3.0 license, which ts-manuel chose for the repository.
