About the Multi-Ferro-DAQ PCB

Multi-Ferro-DAQ is an open source ESP32 PCB design by TUDA-MUST, published on GitHub. It is a 4-layer board measuring 50 × 65 mm, with 116 components from 42 distinct parts.

Its main chip is the ESP32-S3-MINI-1-N8, from the ESP32 family. Other key parts include the ADS131E08IPAGR, TP4056, TLV9051IDBVR, TPS7A9101DSKR and LM2775QDSGRQ1. By type, the board carries 20 resistors, 10 ICs, 7 connectors, 6 diodes, 3 switches and 3 inductors.

It belongs with the power & battery, sensors and test & measurement designs in this gallery.

From the project

Measurement Setup to analyze multiple ferroelectric sensors simultaneously

Measurement setup to analyze up to eight charge sources (e.g. ferroelectric sensors) simultaneously.

The system connects up to 8 channels via two RJ45 connectors (4 sources per connector). The PCB is designed for mobile use — it can be strapped to a test person, runs on battery power, and transmits data in millivolts (mV) via WiFi at up to 2000 samples per second.

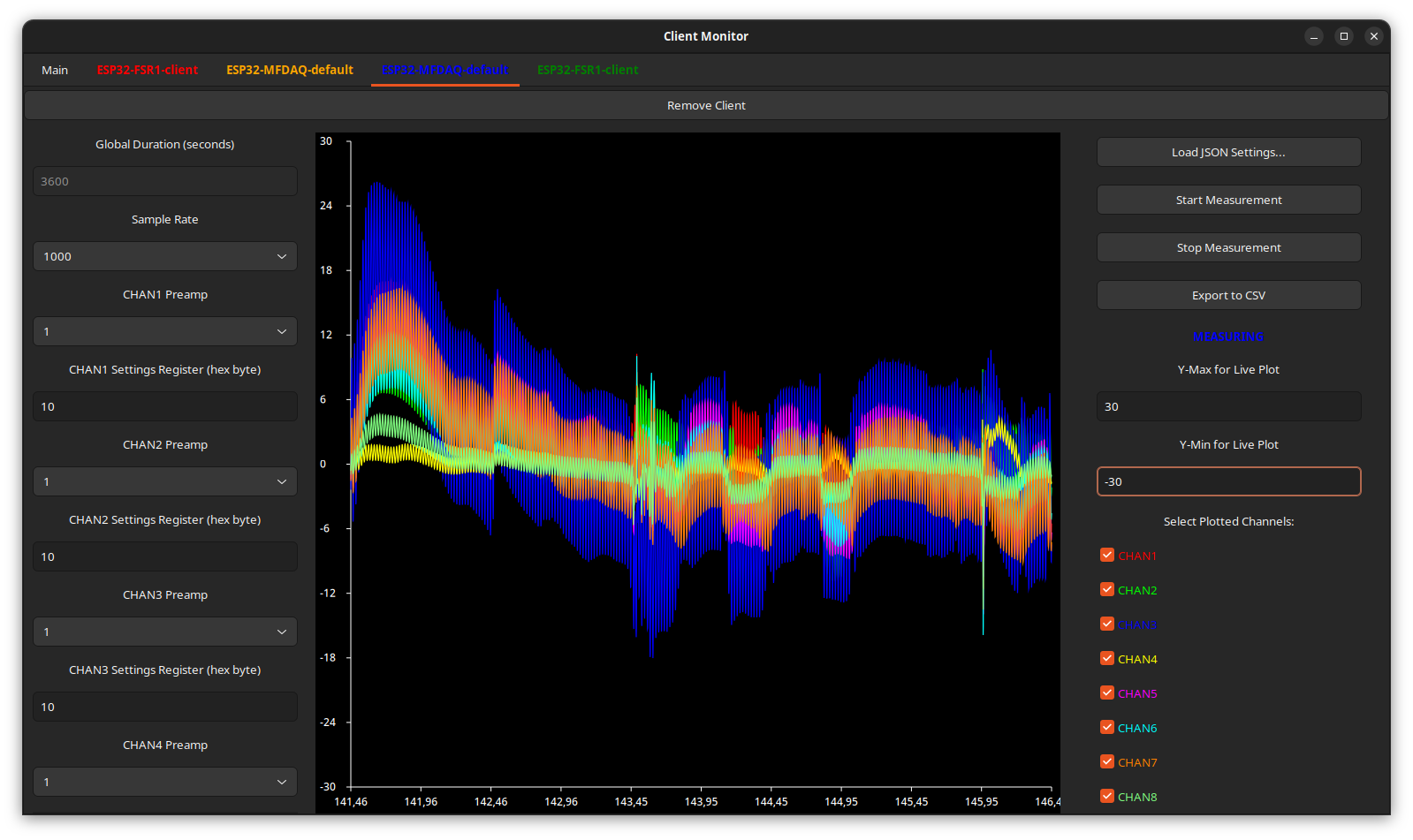

Multi-Ferro-DAQ, from the project README
From the project README

Main components on the Multi-Ferro-DAQ

Multi-Ferro-DAQ bill of materials (BOM)

116 components, 42 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ADS131E08IPAGR
IC1
1
TP4056
IC2
1
TLV9051IDBVR
IC3
1
TPS7A9101DSKR
IC5
1
LM2775QDSGRQ1
IC7
2
AD8608ARUZ-REEL
U1, U4
1
ESP32-S3-MINI-1-N8
U2
1
ICM-42670-P
U3
1
WE-TVS-82400102
U5
1
DMG2305
Q1
2
8P8C_SHIELDED
8P8C_Shielded
J1, J5
2
CONN_01X04_SOCKET
Conn_01x04_Socket
J2, J3
1
CONN_01X02_PIN
Conn_01x02_Pin
J4
1
TYPE-C-31-M-12
J6
1
C5241024
RFShield_TwoPieces
J7
11
1u
CCH1, CS4, CS5, CS7, CS8, CS10, CS12, CS13 +3
8
680P
680p
CF1, CF2, CF3, CF4, CF5, CF6, CF7, CF8
14
100N
100n
CS1, CS3, CS15, CS17, CS19, CS29, CS32, CS37 +6
13
10U
10u
CS2, CS9, CS11, CS16, CS18, CS31, CS34, CS39 +5
3
22U
22u
CS6, CS28, CS30
Show 22 more
QtyPartRefs
1
680N
680n
CS21
2
10N
10n
CS33, CS49
2
CONN_01X02_PIN
Conn_01x02_Pin
GPIO1, GPIO2
8
C2484710
1G
RF1, RF2, RF3, RF4, RF5, RF6, RF7, RF8
1
0R
Rf_Op1
1
SK-12D02-VG3
S1
2
SKRPABE010
S2, S3
1
C7502695
D_Schottky
D1
2
C2286
LED_R
D2, D3
1
C2290
LED_W
D4
2
SK6812MINI-HS
D5, D6
2
C2649308
FerriteBead
FB1, FB2
1
CHOKE_WURTH_WE-CNSW_744232090
Choke_Wurth_WE-CNSW_744232090
L1
3
10U
10u
C1, C8, C9
7
10K
10k
R1, R2, R12, R13, R15, R16, R17
3
100R
R3, R4, R5
1
1k
R6
2
3.57K
3.57k
R7, R33
2
5.1K
5.1k
R19, R20
1
27R
R27
3
C21189
0R
R28, R29, R30
1
1.15K
1.15k
R32

Multi-Ferro-DAQ design files

The KiCad project lives in the TUDA-MUST/Multi-Ferro-DAQ repository on GitHub; these links point at the commit this page was built from.

Multi-Ferro-DAQ: common questions

What microcontroller does the Multi-Ferro-DAQ use?

The Multi-Ferro-DAQ is built around the ESP32-S3-MINI-1-N8, from the ESP32 family.

How big is the Multi-Ferro-DAQ PCB?

The Multi-Ferro-DAQ measures 50 × 65 mm, has 4 copper layers and is 1.564 mm thick.

How many components are on the Multi-Ferro-DAQ?

116 components, from 42 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Multi-Ferro-DAQ design files?

From the TUDA-MUST/Multi-Ferro-DAQ repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Multi-Ferro-DAQ design in my own project?

The repository has no license, so all rights stay with TUDA-MUST. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Multi-Ferro-DAQ without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
