SPACEDOS02

UniversalScientificTechnologies·SPACEDOS02·hw/sch_pcb/SPACEDOS02A_PCB01A/SPACEDOS02A_PCB01A.kicad_pcb

SPACEDOS02 PCB layout, top view — open source AVR/Arduino board by UniversalScientificTechnologies

About the SPACEDOS02 PCB

SPACEDOS02 is an open source AVR/Arduino PCB design by UniversalScientificTechnologies, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 38 × 200 mm, with 120 components from 41 distinct parts.

Its main chip is the ATMEGA1284P-AU, from the AVR/Arduino family. Other key parts include the OPA2314, ISL21080DIH312Z-TK 1V25, TS7211, TS5A4594 and AT24CS64-SSHM. By type, the board carries 47 capacitors, 28 connectors, 27 resistors, 9 ICs, 2 modules and 2 diodes.

It belongs with the science & space, power & battery and test & measurement designs in this gallery.

From the project

Solid-state PIN diode dosimeter for manned spacecraft. Liulin detector replacement.

SPACEDOS is a miniature and lightweight version of AIRDOS02 cosmic radiation dosimeter modified for use onboard manned spacecraft.

The device is currently being used onboard ISS. The following pictures show the processed data from the flight. Here is a radiation map, where the South Atlantic Anomaly is visible.

The following spectrum is a cumulative sum of all the measured particles during the flight.

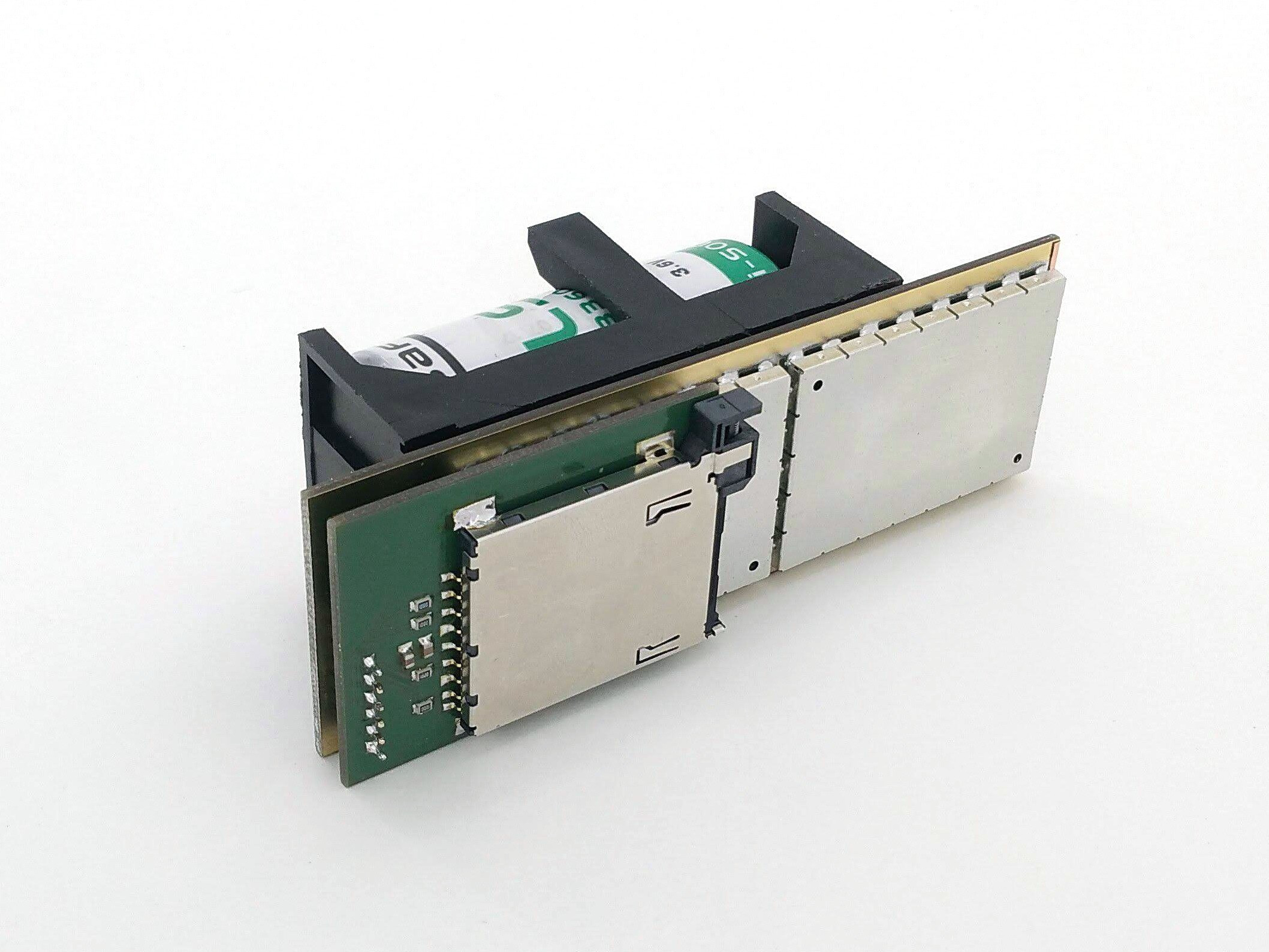

SPACEDOS02, from the project README
From the project README

Main components on the SPACEDOS02

OPA2314ISL21080DIH312Z-TK 1V25TS7211TS5A4594AT24CS64-SSHMTPS613222ADBVATMEGA1284P-AUPCF85263A

SPACEDOS02 bill of materials (BOM)

120 components, 41 distinct parts.

QtyPartRefs
2
OPA2314
U1, U2
1
ISL21080DIH312Z-TK 1V25
U3
1
TS7211
U4
1
TS5A4594
U5
1
AT24CS64-SSHM
U6
1
TPS613222ADBV
U8
1
ATMEGA1284P-AU
U10
1
PCF85263A
U11
1
BMI-S-210-F
M6
1
BMI-S-210-F
M8
1
ABS07-120-32.768KHZ-T
Y2
1
SD_Card-Connector
J1
2
HEADER_2x01_PARALLEL
J2, J3
22
HEADER_1x01
J4, J5, J6, J7, J8, J9, J10, J11 +14
1
HEADER_2x01_PARALLEL
J19
1
HEADER_2x03
J22
1
SD_Card-FPS009-4200-0
J28
1
BX0037
BT1
1
2R2
F2
1
S11773-02
D1
Show 21 more
QtyPartRefs
1
BZV55C-5,6V
D3
1
10uH - LQH32CN100K23L
L1
1
DFE252012P-4R7M
L3
1
22uF
C1
23
100nF
C2, C10, C11, C12, C13, C14, C16, C20 +15
3
4u7
C3, C17, C43
13
10uF
C4, C6, C7, C8, C9, C21, C22, C23 +5
1
1pFNP0 251R15S1R0AV4E
C5
1
3n3
C15
1
2n2
C18
1
1nF/NP0
C19
1
1uF
C24
2
NFM21PC105-1uF
C29, C52
1
10R
R1
4
470R
R2, R3, R4, R5
1
10M
R6
5
10k
R7, R12, R20, R21, R23
2
1k
R8, R10
5
4k7
R9, R11, R15, R19, R22
1
2k2
R13
8
100
R14, R16, R17, R18, R24, R25, R26, R27

SPACEDOS02 design files

The KiCad project lives in the UniversalScientificTechnologies/SPACEDOS02 repository on GitHub; these links point at the commit this page was built from.

SPACEDOS02: common questions

What microcontroller does the SPACEDOS02 use?

The SPACEDOS02 is built around the ATMEGA1284P-AU, from the AVR/Arduino family.

How big is the SPACEDOS02 PCB?

The SPACEDOS02 measures 38 × 200 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the SPACEDOS02?

120 components, from 41 distinct parts. The full bill of materials is listed on this page.

Where can I download the SPACEDOS02 design files?

From the UniversalScientificTechnologies/SPACEDOS02 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the SPACEDOS02 design in my own project?

Yes, under the terms of its GPL-3.0 license, which UniversalScientificTechnologies chose for the repository.

Can I test firmware for the SPACEDOS02 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
