MIST.1010
About the MIST.1010 PCB
MIST.1010 is an open source ESP8266 PCB design by UzixLS, published on GitHub under the MIT license. It is a 2-layer board measuring 100 × 100 mm, with 259 components from 77 distinct parts.
Its main chip is the ESP-12E, from the ESP8266 family. Other key parts include the MT48LC16M16A2, AT91SAM7S256-AU-001, EP3C25E144, MAX3421E and FE2.1-CQFP48A. By type, the board carries 101 resistors, 91 capacitors, 19 connectors, 17 ICs, 7 transistors and 5 diodes.
It belongs with the audio, iot & wireless and power & battery designs in this gallery.
From the project

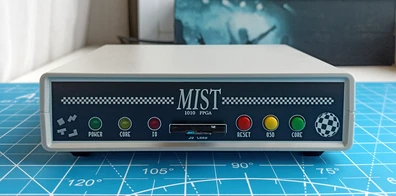

10x10cm PCB variant of MIST FPGA project for G738/G706 enclosure
Tech specs: - EP3C25E144 FPGA - 32/64Mb SDRAM - VGA/RGB video output - Composite video + audio output via 3.5 jack connector (raspberry-pi compatible pinout) - 4xUSB ports for keyboard, mouse and joysticks - 2xDB-9 ports for Amiga mouse and joysticks - SD/microSD card slot - RTC (clock) with battery - Tape input / output - ESP8266 WiFi module - MIDI input and output (starting from rev.C) - Type C (starting from rev.D) or MicroUSB power supply - Board optimized for G738 and G706 cases
Main components on the MIST.1010
MIST.1010 bill of materials (BOM)
259 components, 77 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MT48LC16M16A2 | TSOP-II-54_22.2x10.16mm_P0.8mm | U1 |
| 1 | AT91SAM7S256-AU-001 AT91SAM7S256-AU | TQFP-64_10x10mm_P0.5mm | U2 |
| 1 | EP3C25E144 | ALTERA-QFP-145 | U3 |
| 1 | MAX3421E | LQFP-32_5x5mm_P0.5mm | U4 |
| 1 | FE2.1-CQFP48A | LQFP-48_7x7mm_P0.5mm | U5 |
| 1 | ATtiny45-20SU | SOIC-8W_5.3x5.3mm_P1.27mm | U6 |
| 1 | DS1307Z+ | SOIC-8_3.9x4.9mm_P1.27mm | U7 |
| 2 | LD1117AS33TR | SOT-223-3_TabPin2 | U8, U12 |
| 1 | LD1117AS12TR | SOT-223-3_TabPin2 | U9 |
| 1 | LD1117AS25TR | SOT-223-3_TabPin2 | U10 |
| 1 | H11L1SM | SMDIP-6_W9.53mm | U11 |
| 1 | 74AHCT1G125DB | SOT-23-5_HandSoldering | U13 |
| 1 | ESP-12E | ESP-12E | U14 |
| 1 | MAX809LEUR | SOT-23 | U15 |
| 1 | 74LVC2G34DB | SOT-23-6_Handsoldering | U16 |
| 1 | LP2985-3.3 | SOT-23-5_HandSoldering | U17 |
| 5 | BC817 | SOT-23 | Q1, Q3, Q4, Q6, Q7 |
| 1 | IRLML6402 | SOT-23 | Q2 |
| 1 | BC856 | SOT-23 | Q5 |
| 1 | 27 MHz | Oscillator_SMD_7050_7.0x5.0mm | X1 |
Show 57 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 12 MHz | Oscillator_SMD_7050_7.0x5.0mm | X2 |
| 1 | 18.432 MHz | Crystal_SMD_SeikoEpson_TSX3225-4Pin_3.2x2.5mm_HandSoldering | Y1 |
| 1 | 32768 Hz | Crystal_SMD_SeikoEpson_MC306-4Pin_8.0x3.2mm_HandSoldering | Y2 |
| 5 | Conn_02x05_Odd_Even | PinHeader_2x05_P2.54mm_Vertical | J1, J3, J13, J14, J21 |
| 1 | USB_B_Micro | USB_Micro-B_Molex-105017-0001 | J2 |
| 1 | PJ-320 | PJ-320A_D | J4 |
| 4 | USB_A | USB_A_Wuerth_614004134726_Horizontal | J5, J6, J7, J8 |
| 1 | TE 041021-4 | SD_TE_2041021-mod | J10 |
| 3 | PJ392 | PinHeader_1x03_P2.54mm_Vertical | J11, J19, J20 |
| 2 | Conn_01x04 | PinHeader_1x04_P2.54mm_Vertical | J12, J15 |
| 1 | MEM2055-00-190-01-A | GCT-MEM2055-00-190-01-A | J16 |
| 1 | B2B-XH-A | JST_XH_B2B-XH-A_1x02_P2.50mm_Vertical | J17 |
| 1 | 1775485-1 or S8401-46 | CR2032V | BT1 |
| 1 | 1.1A | Fuse_1812_4532Metric_Pad1.30x3.40mm_HandSolder | F1 |
| 1 | 0.2A | Fuse_1812_4532Metric_Pad1.30x3.40mm_HandSolder | F2 |
| 1 | Jumper_2_Open | PinHeader_1x02_P2.54mm_Vertical | JP1 |
| 1 | Jumper | PinHeader_1x02_P2.54mm_Vertical | JP2 |
| 1 | G738 or G706 | g738-g706 | N1 |
| 1 | SW_DIP_x02 | SW_DIP_SPSTx02_Slide_6.7x6.64mm_W7.62mm_P2.54mm_LowProfile | SW2 |
| 3 | SW_Push | SW_Tactile_SPST_Angled_PTS645Vx58-2LFS | SW3, SW4, SW5 |
| 1 | LED_Red | LED_D5.0mm_Horizontal_O1.27mm_Z3.0mm | D1 |
| 1 | LED_Yellow | LED_D5.0mm_Horizontal_O1.27mm_Z3.0mm | D2 |
| 1 | LED_Green | LED_D5.0mm_Horizontal_O1.27mm_Z3.0mm | D3 |
| 2 | 1N4148W | D_SOD-123 | D4, D5 |
| 3 | 1u | L_0805_2012Metric_Pad1.15x1.40mm_HandSolder | L1, L2, L3 |
| 2 | 6.8u | L_0603_1608Metric_Pad1.05x0.95mm_HandSolder | L5, L6 |
| 1 | 2.2u | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1 |
| 2 | 1n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C2, C9 |
| 39 | 100n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C3, C4, C5, C22, C23, C24, C29, C30 +31 |
| 3 | 10p | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C6, C15, C16 |
| 4 | 15p | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C7, C8, C27, C28 |
| 1 | 10n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C10 |
| 7 | 100u | CP_Elec_5x5.9 | C11, C12, C39, C40, C80, C87, C89 |
| 4 | 2.2n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C13, C14, C82, C83 |
| 14 | 10u | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C17, C18, C19, C25, C26, C33, C34, C74 +6 |
| 2 | 100p | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C20, C21 |
| 7 | 1u | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C35, C42, C50, C51, C52, C63, C70 |
| 5 | 22u | CP_EIA-3216-18_Kemet-A_Pad1.58x1.35mm_HandSolder | C41, C68, C69, C81, C91 |
| 2 | 300p | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C77, C78 |
| 4 | 1.5k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R1, R8, R24, R49 |
| 19 | 10k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R2, R3, R4, R9, R38, R44, R52, R55 +11 |
| 11 | 22 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R5, R6, R12, R13, R14, R27, R29, R30 +3 |
| 1 | 120 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R7 |
| 4 | 560 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R10, R11, R99, R104 |
| 6 | 1k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R15, R22, R33, R76, R83, R101 |
| 10 | 1.1k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R16, R17, R23, R25, R34, R35, R77, R78 +2 |
| 5 | 2.2k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R18, R26, R37, R79, R86 |
| 5 | 4.3k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R19, R28, R39, R80, R87 |
| 5 | 9.1k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R20, R31, R40, R81, R88 |
| 5 | 18k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R21, R32, R41, R82, R90 |
| 1 | 2.7k 1% | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R36 |
| 2 | 100 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R42, R43 |
| 6 | 220 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R45, R46, R47, R106, R107, R108 |
| 14 | 4.7k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R48, R50, R51, R53, R60, R61, R62, R63 +6 |
| 1 | 470k | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R58 |
| 1 | 470 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R65 |
| 1 | 680 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R102 |
MIST.1010 design files
The KiCad project lives in the UzixLS/mist1010-board repository on GitHub; these links point at the commit this page was built from.
- Layoutpcb/rev.B/mist1010.kicad_pcb
- Schematicpcb/rev.B/mist1010.kicad_sch
MIST.1010: common questions
What microcontroller does the MIST.1010 use?
The MIST.1010 is built around the ESP-12E, from the ESP8266 family.
How big is the MIST.1010 PCB?
The MIST.1010 measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the MIST.1010?
259 components, from 77 distinct parts. The full bill of materials is listed on this page.
Where can I download the MIST.1010 design files?
From the UzixLS/mist1010-board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the MIST.1010 design in my own project?
Yes, under the terms of its MIT license, which UzixLS chose for the repository.
Can I test firmware for the MIST.1010 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
