MultiOsc PCB layout, top view — open source board by wangyeee
Simulate this board

About the MultiOsc PCB

MultiOsc is an open source PCB design by wangyeee, published on GitHub under the BSD-3-Clause license. It is a 2-layer board measuring 40 × 20 mm, with 12 components from 11 distinct parts.

Other key parts include the TPS79333. By type, the board carries 4 capacitors, 3 crystals, 2 connectors, 1 IC, 1 inductor and 1 resistor.

It belongs with the robotics & motion and rf & radio designs in this gallery.

From the project

Collections of hardware design related to my drone project.

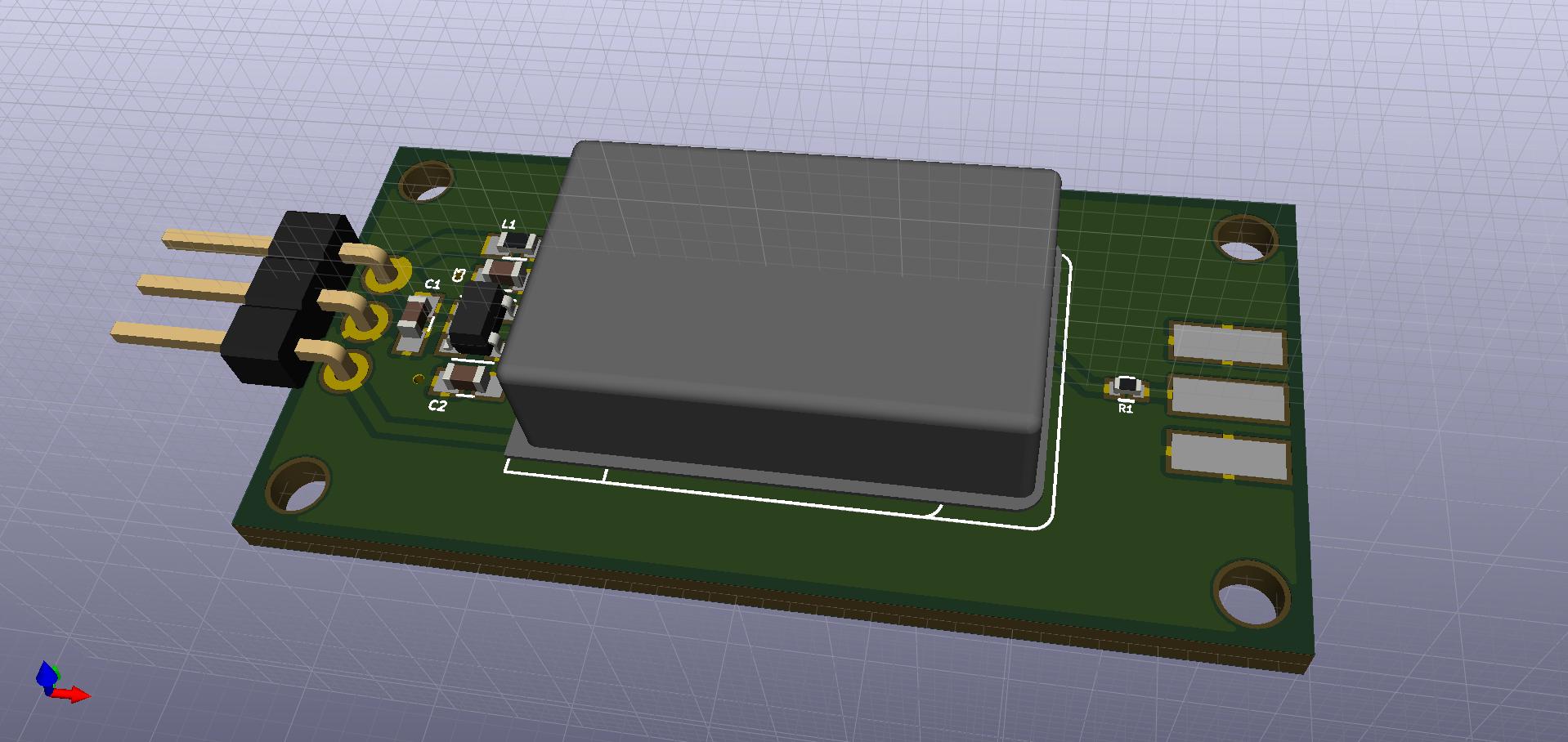

MultiOsc, from the project README
From the project README

Main components on the MultiOsc

TPS79333

MultiOsc bill of materials (BOM)

12 components, 11 distinct parts.

QtyPartRefs
1
TPS79333
U1
1
CXO_DIP14
X1
1
CXO_DIP8
X2
1
CXO_3225
X3
1
SMA_EDGE
J1
1
M03
J2
1
DNP
L1
2
100nF
C1, C4
1
10nF
C2
1
2.2uF
C3
1
0
R1

MultiOsc design files

The KiCad project lives in the wangyeee/OpenHardware repository on GitHub; these links point at the commit this page was built from.

MultiOsc: common questions

How big is the MultiOsc PCB?

The MultiOsc measures 40 × 20 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MultiOsc?

12 components, from 11 distinct parts. The full bill of materials is listed on this page.

Where can I download the MultiOsc design files?

From the wangyeee/OpenHardware repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the MultiOsc design in my own project?

Yes, under the terms of its BSD-3-Clause license, which wangyeee chose for the repository.
