ReflowOvenController

wangyeee·OpenHardware·ReflowOvenController/ReflowOvenController.kicad_pcb

ReflowOvenController PCB layout, top view — open source AVR/Arduino board by wangyeee
Simulate this board

About the ReflowOvenController PCB

ReflowOvenController is an open source AVR/Arduino PCB design by wangyeee, published on GitHub under the BSD-3-Clause license. It is a 2-layer board measuring 100 × 100 mm, with 97 components from 52 distinct parts.

Its main chip is the ATMEGA328P-AU, from the AVR/Arduino family. Other key parts include the TXS0108E, AT24CS512, MP1470, LM1117-3.3 and MOC3020M. By type, the board carries 29 capacitors, 26 resistors, 11 diodes, 10 ICs, 9 connectors and 6 test points.

It belongs with the robotics & motion and rf & radio designs in this gallery.

From the project

Collections of hardware design related to my drone project.

Warning: Lethal mains voltage is connected to the PCB, extreme care must be taken for the whole time. Seek help from professional technicians whenever possible.

I decide to design my own board mainly because the solid state relay used in the original project is obsolete. In order to avoid this, I use a triac and an optocoupler to build a solid state relay. It's much easier to find alternatives for discrete components than integrate ones.

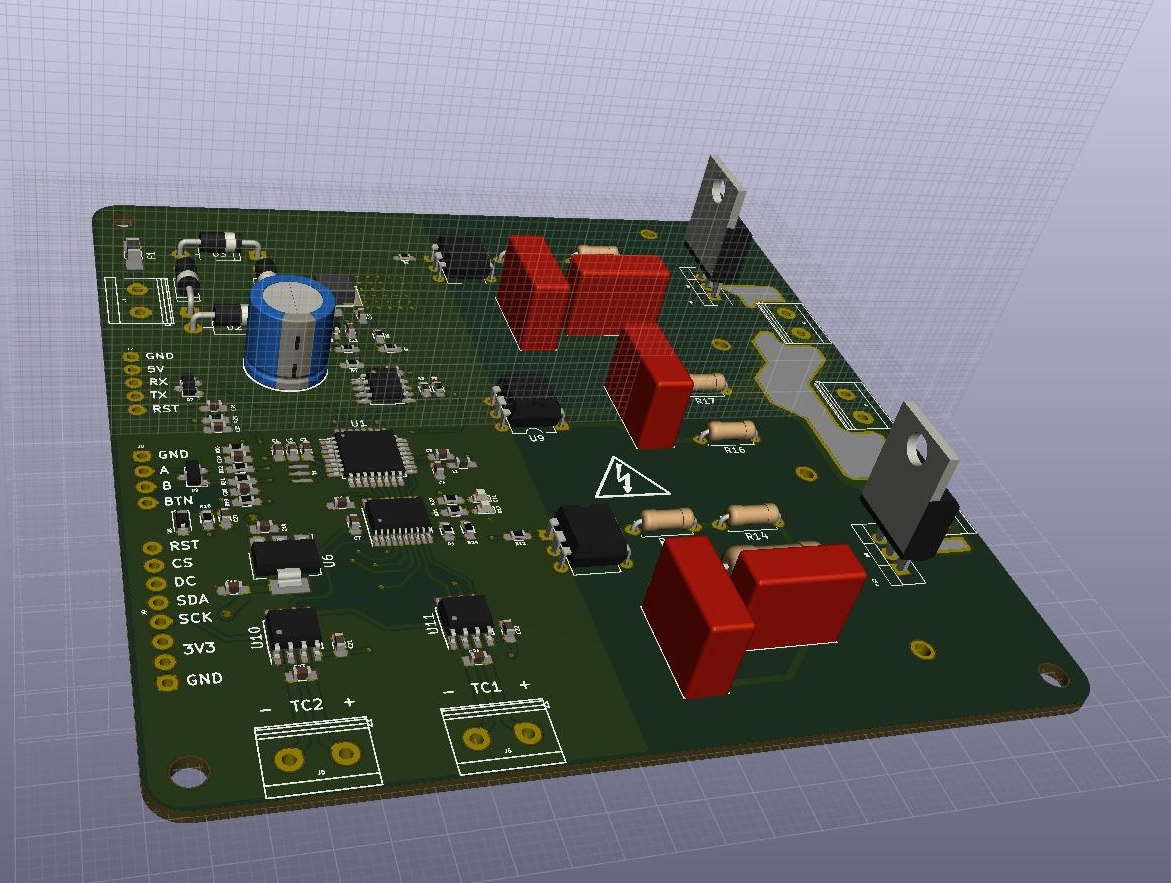

ReflowOvenController, from the project README
From the project README

Main components on the ReflowOvenController

ATMEGA328P-AUTXS0108EAT24CS512MP1470LM1117-3.3MOC3020MH11A1MMAX31855

ReflowOvenController bill of materials (BOM)

97 components, 52 distinct parts.

QtyPartRefs
1
ATMEGA328P-AU
U1
1
TXS0108E
U2
1
AT24CS512
U4
1
MP1470
U5
1
LM1117-3.3
U6
2
MOC3020M
U7, U8
1
H11A1M
U9
2
MAX31855
U10, U11
1
16MHz
Y1
3
CONN_01X02
J1, J5, J6
1
HEATER
J2
1
FAN
J3
1
MAIN
J4
1
M05
J7
1
M04
J8
1
M08
J9
1
1A
F1
2
XSD1226-362
HS1, HS2
6
TEST
TP1, TP2, TP3, TP4, TP5, TP6
4
1N4001
D1, D2, D3, D4
Show 32 more
QtyPartRefs
2
BTA16
D5, D6
2
PESD5V
D7, D9
1
PESD5V
D8
1
GREEN
D10
1
RED
D11
1
1K
L1
1
6.8uH
L2
1
4.7uF
C1
10
100nF
C2, C3, C4, C5, C6, C7, C8, C11 +2
1
470uF
C9
1
22uF
C10
3
1uF
C12, C14, C15
1
22uF
C13
2
50nF
C16, C18
2
10nF
C17, C19
1
100nF
C20
5
10nF
C23, C24, C27, C28, C29
1
NC
C25
1
4.7nF
C26
3
4.7K
R1, R2, R3
1
100K
R4
1
75K
R5
1
40.2K
R6
1
7.68K
R7
4
100
R8, R12, R21, R22
2
360
R9, R13
2
470
R10, R14
2
39
R11, R15
2
47K
R16, R17
4
10K
R18, R19, R20, R23
1
NC
R24
2
330
R26, R27

ReflowOvenController design files

The KiCad project lives in the wangyeee/OpenHardware repository on GitHub; these links point at the commit this page was built from.

ReflowOvenController: common questions

What microcontroller does the ReflowOvenController use?

The ReflowOvenController is built around the ATMEGA328P-AU, from the AVR/Arduino family.

How big is the ReflowOvenController PCB?

The ReflowOvenController measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ReflowOvenController?

97 components, from 52 distinct parts. The full bill of materials is listed on this page.

Where can I download the ReflowOvenController design files?

From the wangyeee/OpenHardware repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the ReflowOvenController design in my own project?

Yes, under the terms of its BSD-3-Clause license, which wangyeee chose for the repository.

Can I test firmware for the ReflowOvenController without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
