About the SimpleFCv2 PCB

SimpleFCv2 is an open source STM32 PCB design by wangyeee, published on GitHub under the BSD-3-Clause license. It is a 4-layer board measuring 42 × 50 mm, with 119 components from 58 distinct parts.

Its main chip is the STM32F405RGT6, from the STM32 family. Other key parts include the MS5611, MMC5883MA, ICM-20689, MP2403 and SPX3819M5. By type, the board carries 38 capacitors, 38 resistors, 15 diodes, 12 connectors, 11 ICs and 2 transistors.

It belongs with the robotics & motion, rf & radio and sensors designs in this gallery, and the repository also holds 1 earlier revision of it.

From the project

Collections of hardware design related to my drone project.

WARNING: The PCB design has not been fabricated, Use with caution!

- Onboard UBlox GPS receiver has been removed to reduce PCB size. - The MAG3110 magnetometer is replaced by MMC5883MA. - The 4 pin SWD connector has been replaced by 10-pin JTAG connector, with JTDI/JTDO signals available. - Schematics libraries have been updated to latest version from the KiCAD github repo. - One additional LED is added to the board, with 5 in total. - Optimization of MCU pin usage, all IO pins are used in this version, refer to the following table for details.

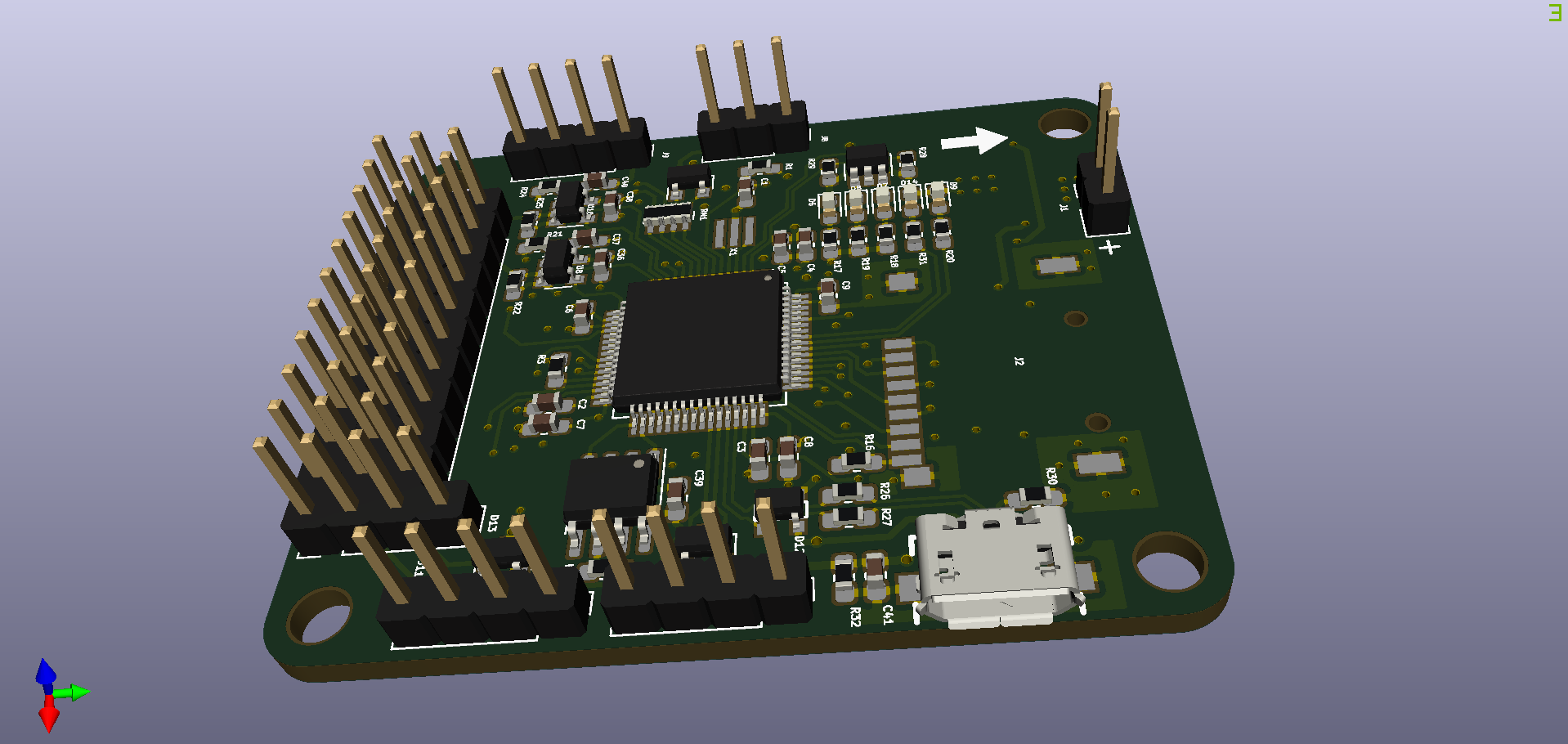

SimpleFCv2, from the project README
From the project README

Main components on the SimpleFCv2

SimpleFCv2 bill of materials (BOM)

119 components, 58 distinct parts.

QtyPartRefs
1
STM32F405RGT6
U1
1
MS5611
U2
1
MMC5883MA
U3
1
ICM-20689
U4
1
MP2403
U5
1
SPX3819M5
U6
1
AT24C512C
U7
2
74LVC1G86
U8, U10
1
SN74LVC245
U9
1
TJA1050
U11
1
AO3407A
Q1
1
AO6802
Q2
1
25Mhz
X1
1
M02
J1
1
Micro_SD_Card_Det
J2
4
M04
J3, J4, J9, J11
3
M10
J5, J6, J7
1
M03
J8
1
USB_B_Micro
J10
1
Conn_SWD
J12
Show 38 more
QtyPartRefs
1
BAT20J
D1
4
PESD3V3
D2, D3, D10, D11
2
1A
D4, D5
1
RED
D6
1
BLUE
D7
1
GREEN
D8
1
YELLOW
D9
1
PRTR5V0U2X
D12
1
PESDCAN
D13
1
ORANGE
D14
1
B340A
D15
1
1K
L1
1
10uH
L2
18
100nF
C1, C5, C6, C7, C8, C9, C11, C13 +10
4
2.2uf
C2, C3, C20, C30
2
10uF
C4, C15
2
1uF
C10, C14
1
470nF
C18
5
10nF
C19, C22, C32, C37, C40
2
10uF
C23, C24
1
3.3nF
C25
2
22uF
C28, C29
1
4.7uF
C31
8
10K
R1, R2, R3, R7, R8, R9, R14, R16
1
0
R4
3
4.7K
R5, R6, R13
2
100K
R10, R30
1
53.6K
R11
1
1K
R12
1
7.5K
R15
5
680
R17, R18, R19, R20, R31
4
1.5K
R21, R22, R24, R25
1
120
R23
2
22
R26, R27
2
2.2K
R28, R29
1
1M
R32
5
0
R33, R34, R35, R36, R37
1
100
RN1

SimpleFCv2 design files

The KiCad project lives in the wangyeee/OpenHardware repository on GitHub; these links point at the commit this page was built from.

SimpleFCv2: common questions

What microcontroller does the SimpleFCv2 use?

The SimpleFCv2 is built around the STM32F405RGT6, from the STM32 family.

How big is the SimpleFCv2 PCB?

The SimpleFCv2 measures 42 × 50 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the SimpleFCv2?

119 components, from 58 distinct parts. The full bill of materials is listed on this page.

Where can I download the SimpleFCv2 design files?

From the wangyeee/OpenHardware repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the SimpleFCv2 design in my own project?

Yes, under the terms of its BSD-3-Clause license, which wangyeee chose for the repository.

Can I test firmware for the SimpleFCv2 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
