About the ESP32-S3-Platform PCB

ESP32-S3-Platform is an open source ESP32 PCB design by WhirlingBits, published on GitHub under the MIT license. It is a 4-layer board measuring 97.5 × 90.6 mm, with 176 components from 51 distinct parts.

Its main chip is the ESP32-S3-WROOM-1, from the ESP32 family. Other key parts include the LTC3111EMSEPBF and CP2102N-A02-GQFN24. By type, the board carries 114 resistors, 25 capacitors, 19 diodes, 9 connectors, 3 ICs and 2 transistors.

It belongs with the power & battery, iot & wireless and dev boards & breakouts designs in this gallery.

From the project

ESP32-S3 Development Board with SD-Card and versatile power management 5V and up to 12V

Thanx to the buck/boost capability of the LTC3111 used the external power input voltage may supply a voltage between 3..15V.

Alternatively it is possible to use an external battery controller (e.g. Sparkfun Babysitter) which is connected on J5 whereas J5.4 (+5VD) will be the input for the controller and J5.1,2 the output.

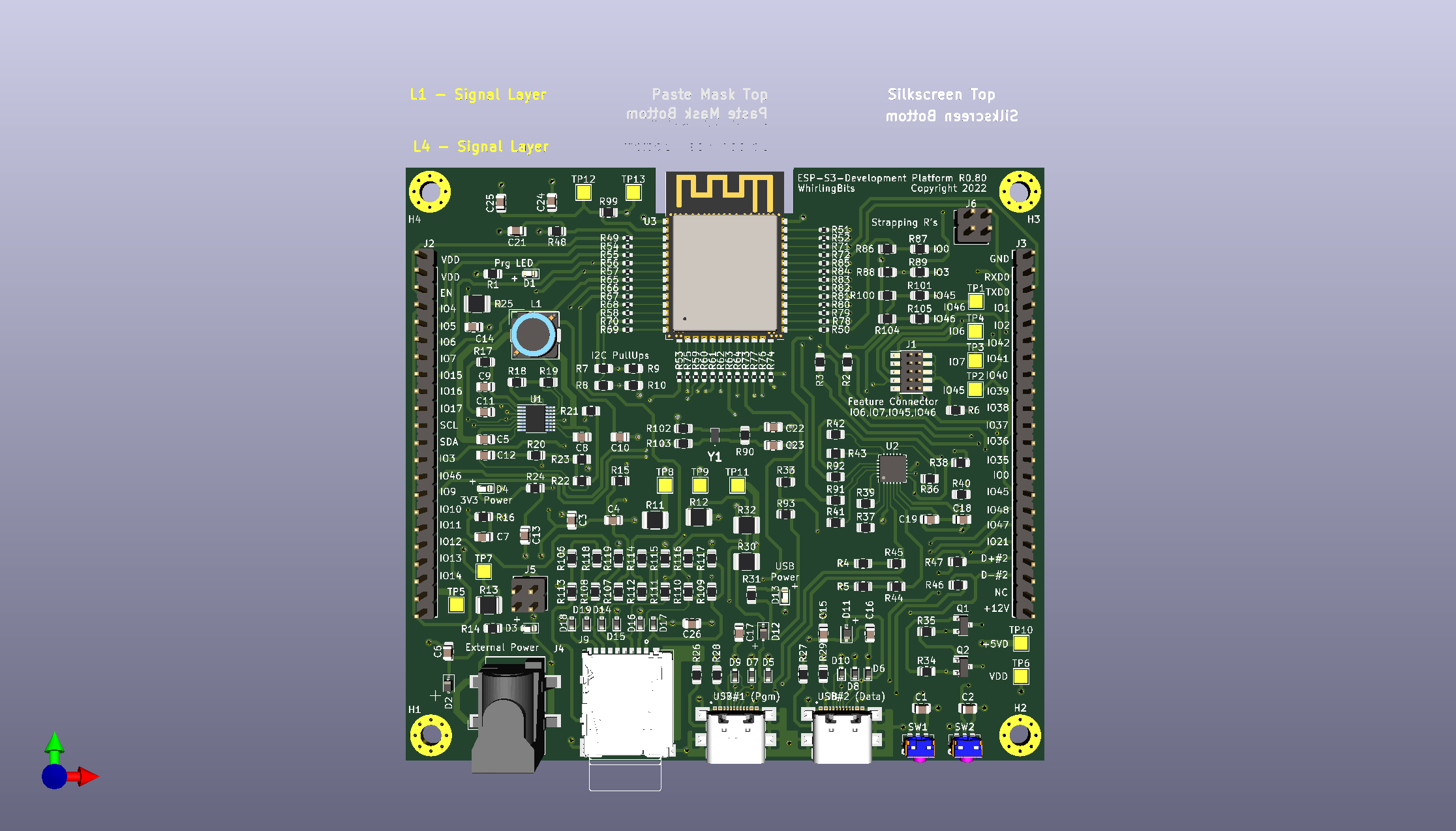

ESP32-S3-Platform, from the project README
From the project README

Main components on the ESP32-S3-Platform

LTC3111EMSEPBFCP2102N-A02-GQFN24ESP32-S3-WROOM-1

ESP32-S3-Platform bill of materials (BOM)

176 components, 51 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LTC3111EMSEPBF
U1
1
CP2102N-A02-GQFN24
U2
1
ESP32-S3-WROOM-1
U3
2
SS8050-G
Q1, Q2
1
XTAL 32,678kHz (C20S-12.5PF20PPM)
Y1
1
CONN_02X05_ODD_EVEN
Conn_02x05_Odd_Even
J1
2
Conn_01x22 (DNP)
J2, J3
1
PJ-002AH-SMT-TR (Barrel Jack)
J4
1
Conn_02x02_Top_Bottom
J5
1
Conn_02x02_Top_Bottom (DNP)
J6
2
USB4110-GF-A_REVB
J7, J8
1
DM3AT-SF-PEJM5
J9
2
SKRTLAE010
SW1, SW2
4
LTST-C191KRKT (Red)
D1, D3, D4, D13
3
BAT760-7
D2, D11, D12
12
PESD15VW1BCSFYL
D5, D6, D7, D8, D9, D10, D14, D15 +4
1
10uH - SLF7032T-100M1R4-2PF
L1
1
0.1uF, 50V (DNP)
C1
8
0.1uF, 50V
C2, C3, C5, C8, C15, C18, C21, C25
2
47uF, 22V
C4, C6
Show 31 more
QtyPartRefs
3
1uF, 16V
C7, C10, C14
1
22P
22p
C9
1
1500P
1500p
C11
1
47P
47p
C12
1
100uF, 6,3V
C13
3
4.7uF, 25V
C16, C17, C19
2
12pF, 50V
C22, C23
2
22uF, 10V
C24, C26
1
1K8
1k8
R1
24
0R
R2, R3, R6, R7, R8, R19, R37, R39 +16
3
1M (DNP)
R4, R5, R16
3
1k
R9, R10, R38
6
0R1
R11, R12, R13, R25, R30, R32
7
5K1
5k1
R14, R26, R27, R28, R29, R88, R101
1
1M
R15
1
41,2k
R17
1
0R (DNP)
R18
1
11,5k
R20
1
49R9
R21
1
845K
845k
R22
1
270K
261k
R23
1
1K5
1k5
R24
1
2K2
2k2
R31
1
47.5K
43k
R33
10
10K
10k
R34, R35, R48, R106, R114, R115, R116, R117 +2
1
10k (DNP)
R36
4
22R
R44, R45, R46, R47
37
22R
R49, R50, R51, R52, R53, R54, R55, R56 +29
6
5k1 (DNP)
R86, R87, R89, R100, R104, R105
1
5.6M
R90
1
22.1K
22k
R93

ESP32-S3-Platform design files

The KiCad project lives in the WhirlingBits/ESP32-S3-Platform repository on GitHub; these links point at the commit this page was built from.

ESP32-S3-Platform: common questions

What microcontroller does the ESP32-S3-Platform use?

The ESP32-S3-Platform is built around the ESP32-S3-WROOM-1, from the ESP32 family.

How big is the ESP32-S3-Platform PCB?

The ESP32-S3-Platform measures 97.5 × 90.6 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the ESP32-S3-Platform?

176 components, from 51 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ESP32-S3-Platform design files?

From the WhirlingBits/ESP32-S3-Platform repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the ESP32-S3-Platform design in my own project?

Yes, under the terms of its MIT license, which WhirlingBits chose for the repository.

Can I test firmware for the ESP32-S3-Platform without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
