About the Miniscope v4-PYTHON480 PCB

Miniscope v4-PYTHON480 is an open source AVR/Arduino PCB design by Aharoni-Lab, published on GitHub under the GPL-3.0 license. It is a 6-layer board measuring 10.5 × 9 mm, with 32 components from 20 distinct parts.

Its main chip is the ATMEGA328-MU, from the AVR/Arduino family. Other key parts include the LTC3218 and TPL0102-100RUCR. By type, the board carries 19 capacitors, 4 resistors, 3 ICs, 2 connectors, 2 inductors and 1 transistor.

It belongs with the wearables designs in this gallery.

From the project

All things Miniscope v4

[Miniscope V4 Wiki] [Miniscope DAQ Software Wiki] [Miniscope DAQ Firmware Wiki] [Miniscope Wire-Free DAQ Wiki] [Miniscope-LFOV Wiki][2021 Virtual Miniscope Workshop Recording]

Open-source neural imaging in freely behaving animals

All information, guides, and tutorials can be found on the Miniscope-v4 Wiki Page.

Make sure to click Watch and Star in the upper right corner of this page to get updates on new features and releases.

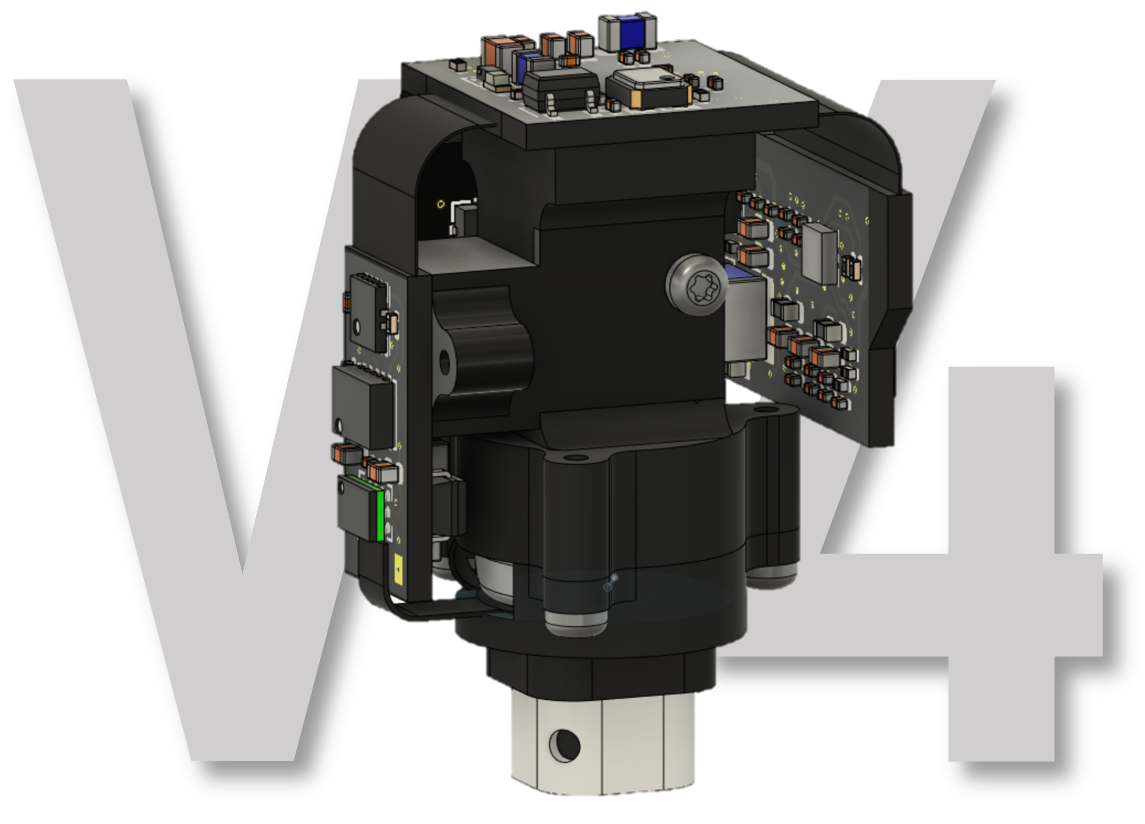

Miniscope v4-PYTHON480, from the project README
From the project README

Main components on the Miniscope v4-PYTHON480

Miniscope v4-PYTHON480 bill of materials (BOM)

32 components, 20 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATMEGA328-MU
LMV321IDCKR
U1
1
LTC3218
NOIP1SN0480A
U2
1
TPL0102-100RUCR
SiT_2.5mmx2mm
U3
1
MMBT3904LP-7B
Q1
1
Conn_01x20
J1
1
Conn_01x14
J2
1
LXZ1-PB01
LED_Small_ALT
D1
1
MBKK1608T3R3M
BLM18PG471SN1D
L1
1
BLM18PG471SN1D
L2
7
GRM033R61A104ME15D
C1, C8, C11, C12, C13, C16, C18
3
GRM155R60J475ME47D
GRM033R61A104ME15D
C2, C5, C7
2
GRM033R61A225ME47D
GRM033R61A104ME15D
C3, C4
3
GRM033R61A104ME15D
GRM155R60J106ME15D
C6, C10, C14
1
GRJ188R72A104KE11D
GRM033R61A104ME15D
C9
2
GRM155R60J106ME15D
GRM033R61A104ME15D
C15, C19
1
GRM033R61A104ME15D
GRM188R61E475KE11D
C17
1
ERJ-1GNF1022C
1.8K
R1
1
ERJ-1GNF1801C
DNL
R2
1
ERJ-1GNF1801C
47.7K
R3
1
ERJ-1GNF1801C
1K
R4

Miniscope v4-PYTHON480 design files

The KiCad project lives in the Aharoni-Lab/Miniscope-v4 repository on GitHub; these links point at the commit this page was built from.

Miniscope v4-PYTHON480: common questions

What microcontroller does the Miniscope v4-PYTHON480 use?

The Miniscope v4-PYTHON480 is built around the ATMEGA328-MU, from the AVR/Arduino family.

How big is the Miniscope v4-PYTHON480 PCB?

The Miniscope v4-PYTHON480 measures 10.5 × 9 mm, has 6 copper layers and is 0.7874 mm thick.

How many components are on the Miniscope v4-PYTHON480?

32 components, from 20 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Miniscope v4-PYTHON480 design files?

From the Aharoni-Lab/Miniscope-v4 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Miniscope v4-PYTHON480 design in my own project?

Yes, under the terms of its GPL-3.0 license, which Aharoni-Lab chose for the repository.

Can I test firmware for the Miniscope v4-PYTHON480 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
