MS v4 ETL LED Driver
Aharoni-Lab·Miniscope-v4·Development Files/Individual PCBs/Miniscope-v4-LED-ETL-Driver/KiCad/MS_v4_ETL_LED_Driver.kicad_pcb
About the MS v4 ETL LED Driver PCB
MS v4 ETL LED Driver is an open source AVR/Arduino PCB design by Aharoni-Lab, published on GitHub under the GPL-3.0 license. It is a 6-layer board measuring 6 × 10.5 mm, with 20 components from 15 distinct parts.
Its main chip is the ATMEGA328-MU, from the AVR/Arduino family. Other key parts include the LTC3218 and TPL0102-100RUCR. By type, the board carries 7 capacitors, 4 connectors, 3 ICs, 3 resistors, 2 diodes and 1 inductor.
From the project
All things Miniscope v4
A single PCB for driving an excitation LED and ETL.

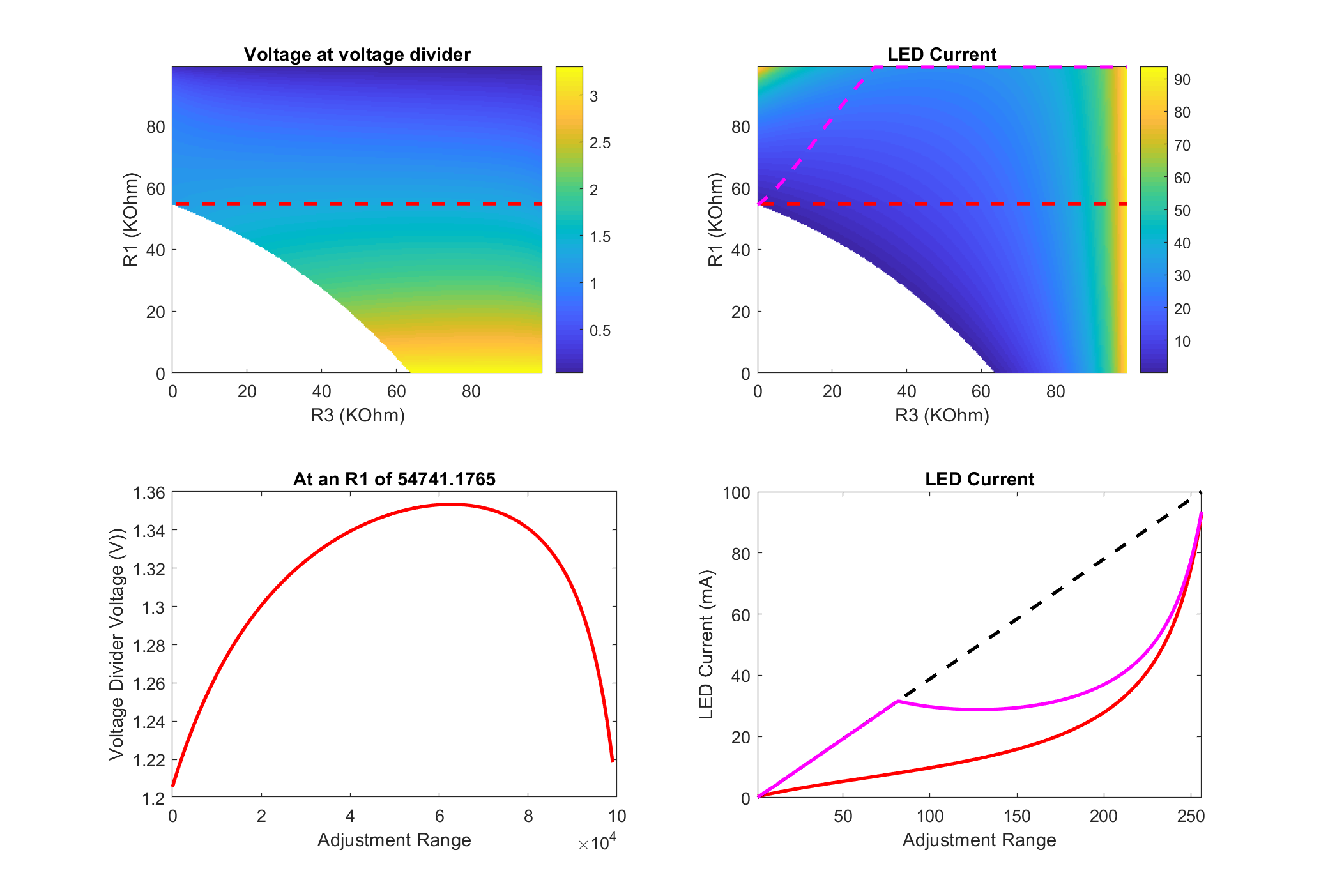

Holds a script that simulates the current output of the LED driver based on the dual digital potentiometer values.

Main components on the MS v4 ETL LED Driver
MS v4 ETL LED Driver bill of materials (BOM)
20 components, 15 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ATMEGA328-MU MAX14574EWL+ | BGA_15_NP50_3X5_155X255X69B31N | U1 |
| 1 | LTC3218 TPL0102-100RUCR | QFN_14_P40_200X200X40L40X20L | U2 |
| 1 | TPL0102-100RUCR LTC3218 | SON_11_P50_300X200X80L40X25T239X64L | U3 |
| 3 | Conn_01x01 | Conn_1x1_250x750_Pad | J1, J6, J7 |
| 1 | Conn_01x05 | B2B_Flex_05_Dual_Row_38milx24mil_Pad_20mil | J10 |
| 1 | LXZ1-PB01 BAS316 | SOD_323_250X125X110L30X32L | D1 |
| 1 | BAS316-TP LXZ1-PR01 | LED_LXZ1_PR01_L | D2 |
| 1 | MBKK1608T3R3M LQM18PN3R3MGHD | L_0603_1608Metric_L | L1 |
| 2 | GRM033R61A104ME15D GRM155R60J475ME87D | C_0402_1005Metric_L | C1, C6 |
| 2 | GRM155R60J475ME47D GRM033R61A225ME47D | C_0201_0603Metric_L | C2, C5 |
| 1 | GRM033R61A225ME47D 100nF 100V 0603 | C_0603_1608Metric_L | C3 |
| 1 | GRM033R61A225ME47D GRM033R61A104ME15D | C_0201_0603Metric_L | C4 |
| 1 | GRM155R60J475ME47D GRM033R61A104ME15D | C_0201_0603Metric_L | C7 |
| 1 | ERJ-1GNF1022C ERJ-1GEF1022C | R_0201_0603Metric_ERJ_L | R1 |
| 2 | ERJ-1GNF1801C ERJ-1GEF1022C | R_0201_0603Metric_ERJ_L | R2, R3 |
MS v4 ETL LED Driver design files
The KiCad project lives in the Aharoni-Lab/Miniscope-v4 repository on GitHub; these links point at the commit this page was built from.
MS v4 ETL LED Driver: common questions
What microcontroller does the MS v4 ETL LED Driver use?
The MS v4 ETL LED Driver is built around the ATMEGA328-MU, from the AVR/Arduino family.
How big is the MS v4 ETL LED Driver PCB?
The MS v4 ETL LED Driver measures 6 × 10.5 mm, has 6 copper layers and is 0.8 mm thick.
How many components are on the MS v4 ETL LED Driver?
20 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the MS v4 ETL LED Driver design files?
From the Aharoni-Lab/Miniscope-v4 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the MS v4 ETL LED Driver design in my own project?
Yes, under the terms of its GPL-3.0 license, which Aharoni-Lab chose for the repository.
Can I test firmware for the MS v4 ETL LED Driver without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
