Meteo station

alicjamusial·meteo-station-pcb·meteo_station/meteo_station.kicad_pcb

Meteo station PCB layout, top view — open source ESP32 board by alicjamusial
Simulate this board

About the Meteo station PCB

Meteo station is an open source ESP32 PCB design by alicjamusial, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 110 × 90 mm, with 23 components from 16 distinct parts.

Its main chip is the ESP32-WROOM, from the ESP32 family. Other key parts include the TP4056, LF33_TO220, DS18B20, BH1750 and BME280. By type, the board carries 6 ICs, 5 capacitors, 5 resistors, 2 diodes, 1 battery holder and 1 jumper.

It belongs with the power & battery, sensors and iot & wireless designs in this gallery.

From the project

Meteo station project - PCB based on ESP32.

Meteo station is my small after-hours project that contains of three repositories: - Meteo station PCB based on ESP32 (this repo) - Meteo station code - Meteo station 3D prints

As the name suggest, is a DIY self-sufficient weather measuring device. I decided to design it as a PCB board with goldpins to stick-in or stick-out individual components and sensors (ESP32, BME280 etc.) to make it more reusable. It could have - of course - been integrated on board, but it would be more expensive and time-consuming to create.

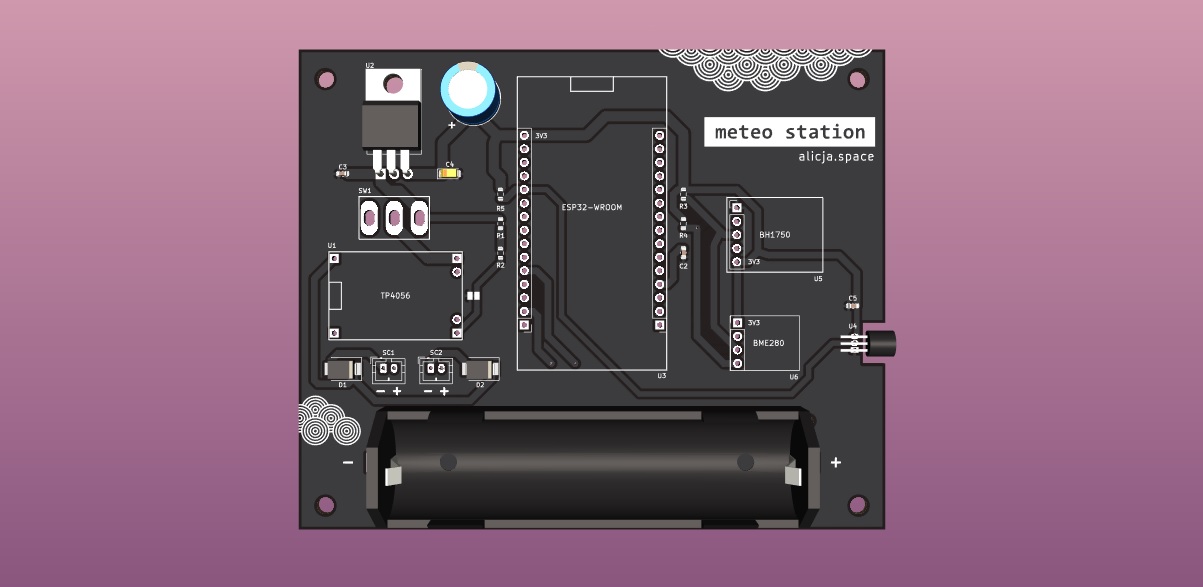

Meteo station, from the project README
From the project README

Main components on the Meteo station

TP4056LF33_TO220ESP32-WROOMDS18B20BH1750BME280

Meteo station bill of materials (BOM)

23 components, 16 distinct parts.

QtyPartRefs
1
TP4056
U1
1
LF33_TO220
U2
1
ESP32-WROOM
U3
1
DS18B20
U4
1
BH1750
U5
1
BME280
U6
1
Battery
BT1
1
SolderJumper
JP1
2
Solar_Cell
SC1, SC2
1
SW_SPDT
SW1
2
D_Schottky
D1, D2
1
2200uF
C1
3
100nF
C2, C3, C5
1
2.2uF
C4
2
10K
R1, R2
3
4.7K
R3, R4, R5

Meteo station design files

The KiCad project lives in the alicjamusial/meteo-station-pcb repository on GitHub; these links point at the commit this page was built from.

Meteo station: common questions

What microcontroller does the Meteo station use?

The Meteo station is built around the ESP32-WROOM, from the ESP32 family.

How big is the Meteo station PCB?

The Meteo station measures 110 × 90 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Meteo station?

23 components, from 16 distinct parts. The full bill of materials is listed on this page.

Where can I download the Meteo station design files?

From the alicjamusial/meteo-station-pcb repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Meteo station design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which alicjamusial chose for the repository.

Can I test firmware for the Meteo station without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
