Esp32-loradv transceiver

alonsoo-rodriguez·esp32-loradv-transceiver·extras/schematics/lora_tracker.kicad_pcb

Esp32-loradv transceiver PCB layout, top view — open source ESP32 board by alonsoo-rodriguez
Simulate this board

About the Esp32-loradv transceiver PCB

Esp32-loradv transceiver is an open source ESP32 PCB design by alonsoo-rodriguez, published on GitHub. It is a 2-layer board measuring 40 × 95.3 mm, with 30 components from 18 distinct parts.

Its main chip is the ESP32, from the ESP32 family. Other key parts include the E22-400M30S, RA-01, INP441, MAX98357A and SSD1306. By type, the board carries 11 capacitors, 7 ICs, 7 resistors, 3 connectors and 2 switches.

It belongs with the rf & radio designs in this gallery.

From the project

This is transceiver board for ESP32 DV handheld transceiver with integrated modules, except battery and charge controller.

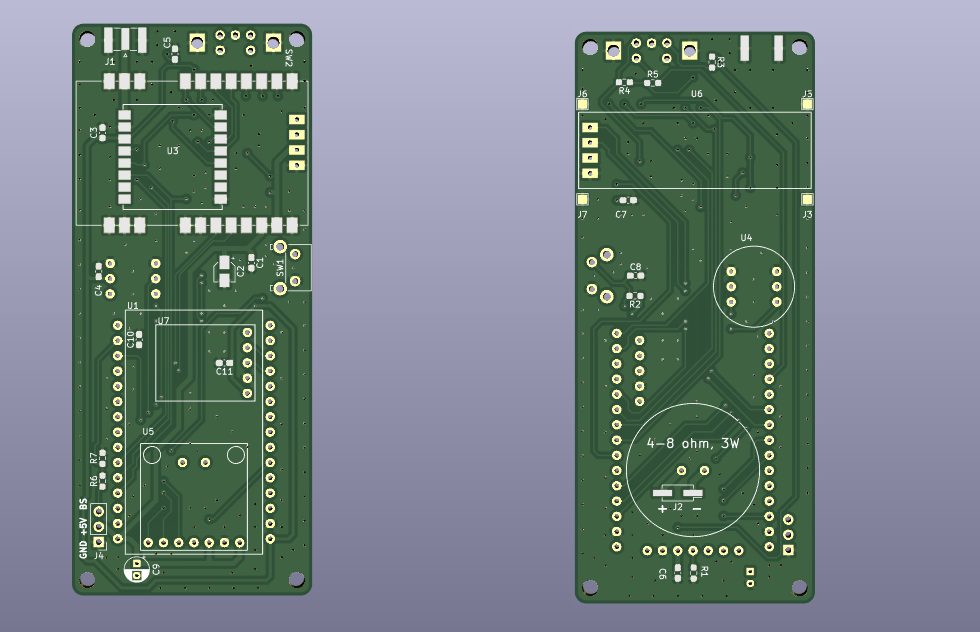

Esp32-loradv transceiver, from the project README
From the project README

Main components on the Esp32-loradv transceiver

ESP32E22-400M30SRA-01INP441MAX98357ASSD1306ATGM336H

Esp32-loradv transceiver bill of materials (BOM)

30 components, 18 distinct parts.

QtyPartRefs
1
ESP32
U1
1
E22-400M30S
U2
1
RA-01
U3
1
INP441
U4
1
MAX98357A
U5
1
SSD1306
U6
1
ATGM336H
U7
1
ANT
J1
1
Conn_01x02
J2
1
Conn_01x03_Female
J4
1
SW_Push
SW1
1
EC11
SW2
8
100nF
C1, C3, C4, C5, C6, C7, C10, C11
1
100uF
C2
1
0.1uF
C8
1
47uF
C9
1
100k
R1
6
10k
R2, R3, R4, R5, R6, R7

Esp32-loradv transceiver design files

The KiCad project lives in the alonsoo-rodriguez/esp32-loradv-transceiver repository on GitHub; these links point at the commit this page was built from.

Esp32-loradv transceiver: common questions

What microcontroller does the Esp32-loradv transceiver use?

The Esp32-loradv transceiver is built around the ESP32, from the ESP32 family.

How big is the Esp32-loradv transceiver PCB?

The Esp32-loradv transceiver measures 40 × 95.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Esp32-loradv transceiver?

30 components, from 18 distinct parts. The full bill of materials is listed on this page.

Where can I download the Esp32-loradv transceiver design files?

From the alonsoo-rodriguez/esp32-loradv-transceiver repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Esp32-loradv transceiver design in my own project?

The repository has no license, so all rights stay with alonsoo-rodriguez. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Esp32-loradv transceiver without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
