Esp32-led controller

arkandas·esp32-led-controller·v2/kicad/esp32-led-controller-v2.kicad_pcb

Esp32-led controller PCB layout, top view — open source ESP32 board by arkandas
Simulate this board

About the Esp32-led controller PCB

Esp32-led controller is an open source ESP32 PCB design by arkandas, published on GitHub under the MIT license. It is a 2-layer board measuring 93.4 × 42.6 mm, with 61 components from 43 distinct parts.

Its main chip is the C2913202, from the ESP32 family. Other key parts include the LMR33630ADDAR, TLV62569APDRLR, SN74AHCT125PWR, AHT20_C2757850 and C474882. By type, the board carries 20 capacitors, 16 resistors, 6 ICs, 6 switches, 3 LEDs and 3 diodes.

It belongs with the displays & leds, sensors and iot & wireless designs in this gallery, and the repository also holds 1 earlier revision of it.

From the project

Controller for ws2812b/sk6812 LEDs

A custom ESP32-based controller for WS2812B/SK6812/WS2814 LED strips with web interface and Alexa integration.

The following documentation applies to Version 2 of the project. All files are located in the v2/ directory.

- 🎨 Web Interface - Real-time control with environment monitoring - 🗣️ Alexa Integration - Voice control support - 🔘 Physical Buttons - Manual brightness/mode control - 🌈 Multiple Effects - Rainbow, chase, breathing animations - 📱 Custom Colors - Full RGBW color picker - 🌡️ Temperature & Humidity - AHT20 sensor for environment monitoring - 💡 Status LEDs - 3x RGB status…

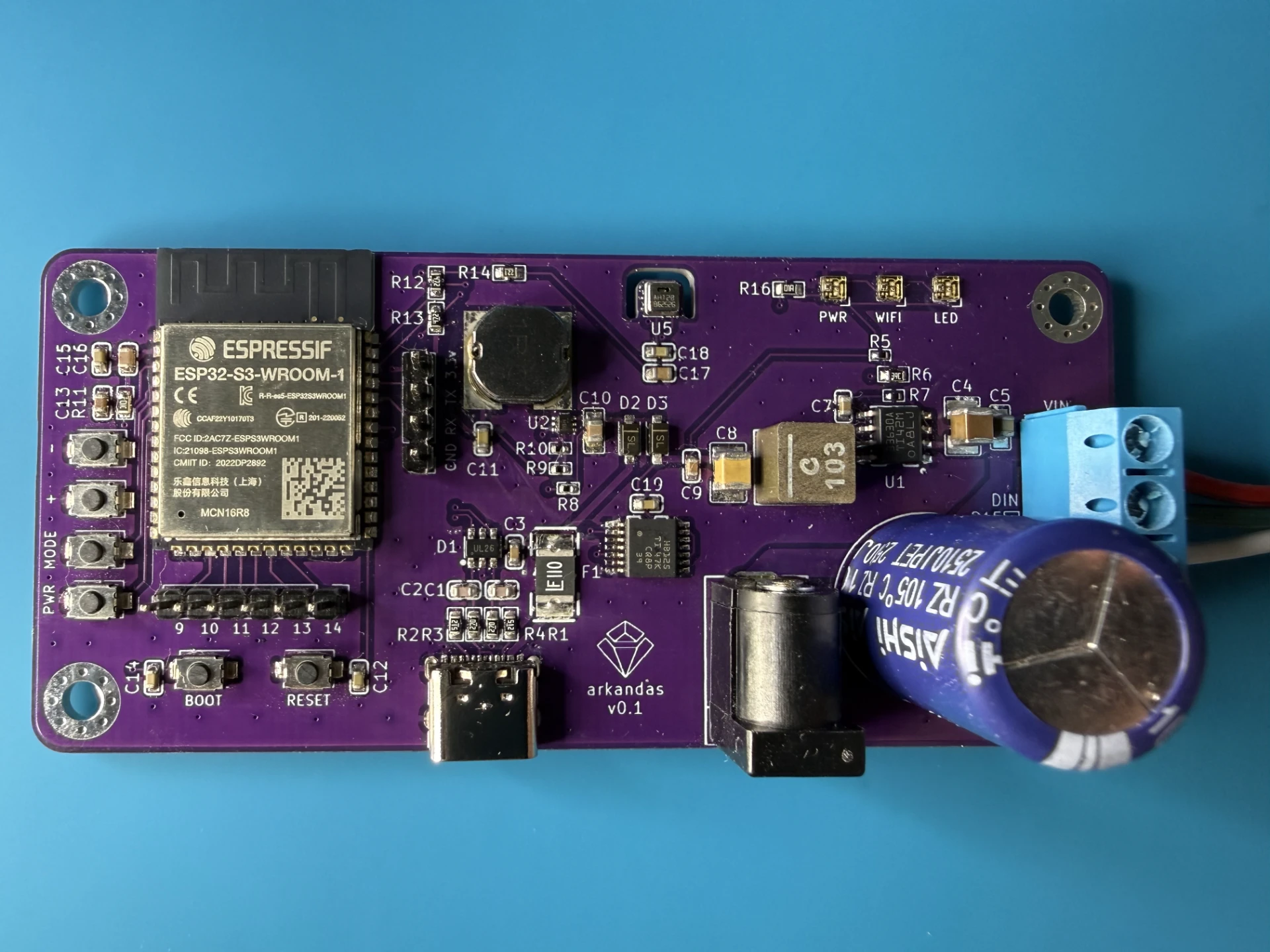

Esp32-led controller, from the project README
From the project README

Main components on the Esp32-led controller

LMR33630ADDARTLV62569APDRLRC2913202SN74AHCT125PWRAHT20_C2757850C474882

Esp32-led controller bill of materials (BOM)

61 components, 43 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LMR33630ADDAR
U1
1
TLV62569APDRLR
U2
1
C2913202
ESP32-S3-WROOM-1(N16R8)
U3
1
SN74AHCT125PWR
U4
1
AHT20_C2757850
U5
1
C474882
LED_STRIP_CONN
U9
1
UART
J1
1
GPIO
J2
1
DC-005-5A-2.5
DC1
1
1.1A
F1
1
C720477
RESET
SW1
1
C720477
BOOT
SW2
1
C720477
-
SW3
1
C720477
+
SW4
1
C720477
MODE
SW5
1
C720477
POWER
SW6
1
C2765186
TYPE-C 16PIN 2MD(073)
USB1
3
SK6805-EC20
LED1, LED2, LED3
1
USBLC6-2SC6
D1
2
B5819W
D2, D3
Show 23 more
QtyPartRefs
1
10UH
10uH
L1
1
1UH
1uH
L2
2
22PF
22pf
C1, C2
7
0.1UF
0.1uF
C3, C9, C12, C14, C15, C18, C19
1
10UF
10uF
C4
1
220NF
220nF
C5
1
0.1UF
0.1uF
C6
2
1UF
1uF
C7, C13
1
47UF
47uF
C8
1
4.7UF
4.7uF
C10
1
22UF
22uF
C11
2
10UF
10uF
C16, C17
1
1000UF
1000uF
C20
2
5.1K
R1, R2
2
27OHM
27ohm
R3, R4
3
100K
R5, R7, R10
1
24.9K
R6
1
475K
R8
1
453K
R9
1
10K
R11
2
4.7K
4.7k
R12, R13
1
220OHM
220ohm
R14
2
100OHM
100ohm
R15, R16

Esp32-led controller design files

The KiCad project lives in the arkandas/esp32-led-controller repository on GitHub; these links point at the commit this page was built from.

Esp32-led controller: common questions

What microcontroller does the Esp32-led controller use?

The Esp32-led controller is built around the C2913202, from the ESP32 family.

How big is the Esp32-led controller PCB?

The Esp32-led controller measures 93.4 × 42.6 mm, has 2 copper layers and is 1.600198 mm thick.

How many components are on the Esp32-led controller?

61 components, from 43 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Esp32-led controller design files?

From the arkandas/esp32-led-controller repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Esp32-led controller design in my own project?

Yes, under the terms of its MIT license, which arkandas chose for the repository.

Can I test firmware for the Esp32-led controller without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
