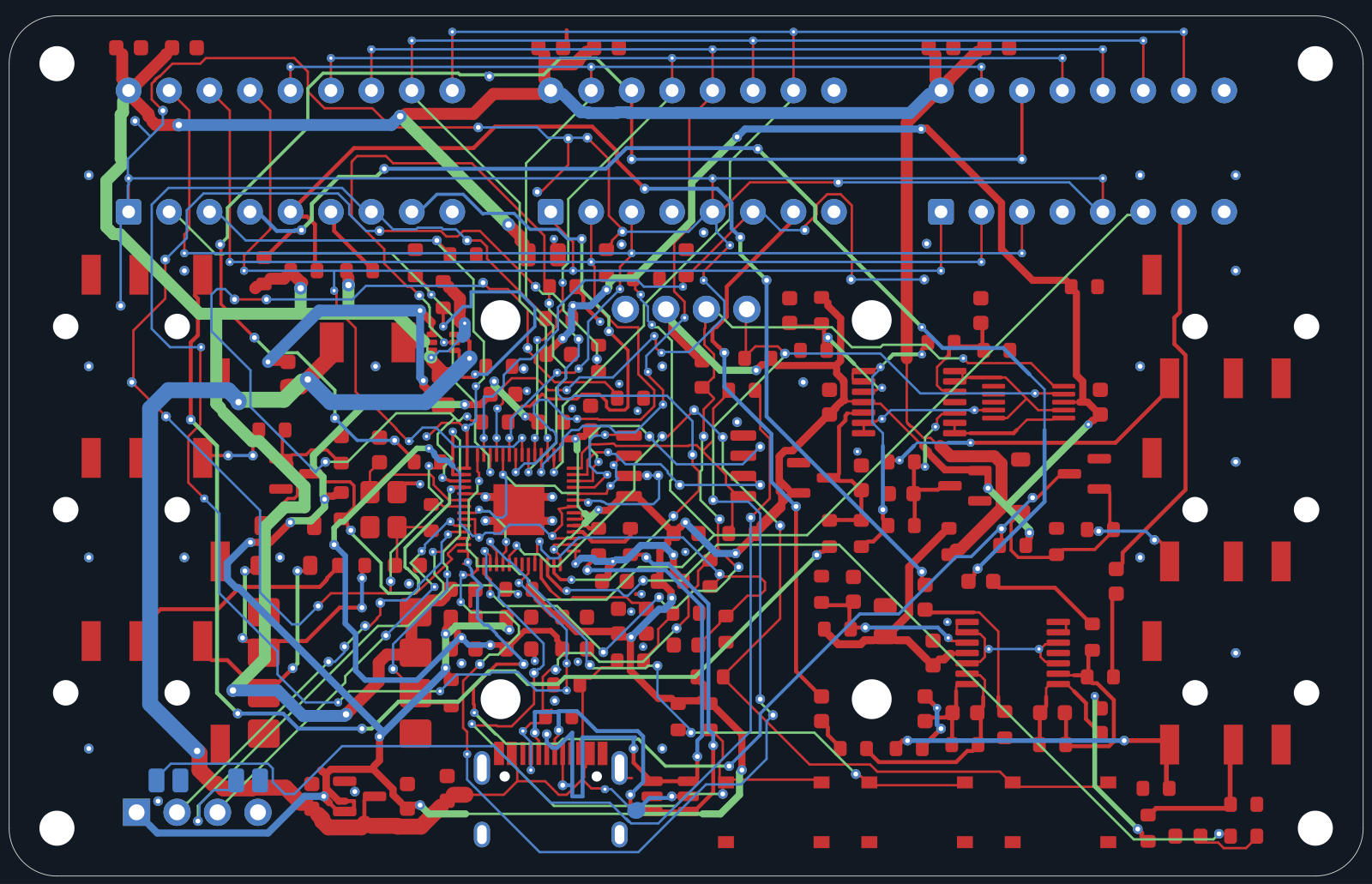

Chiptune usb cv
About the Chiptune usb cv PCB
Chiptune usb cv is an open source RP2040/RP2350 PCB design by Bongorian, published on GitHub. It is a 4-layer board measuring 85 × 54 mm, with 148 components from 148 distinct parts.
Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the W25Q16JVSSIQ, TPS61023DRLR, AP2120N-3.2TRG1, USBLC6-2SC6 and SAA1099 DIP18. By type, the board carries 64 resistors, 47 capacitors, 12 ICs, 9 connectors, 6 diodes and 3 switches.
It belongs with the audio and displays & leds designs in this gallery.
From the project
RP2040 chiptune gadget with SAA1099, dual SN76489AN, USB MIDI, CV/gate and OLED UI
SAA1099 × 1、SN76489AN × 2、RP2040を搭載した小型チップチューン音源のハードウェアプロジェクトです。 USB MIDI、TRS MIDI、2系統のCV／ゲート入力と、OLED・3ボタンによる操作を想定しています。 回路図、配線済みPCB、JLCPCB向け製造データ、設計資料を収録しています。
開発状況: PCBの配線と設計ルール検査は完了しています。実機ファームウェアと組み立て後の動作検証は開発中です。
routed/ChiptuneUSBCV.kicadpro を開いてください。 製造用のPCBは同じディレクトリの ChiptuneUSBCV.kicadpcb です。
KiCad 9.0.9で作成しています。シンボルとフットプリントは同梱し、${KIPRJMOD}から参照します。 一部の3DモデルにはKiCad標準ライブラリが必要です。
Main components on the Chiptune usb cv
Chiptune usb cv bill of materials (BOM)
148 components, 148 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | RP2040 | Board_U1 | U1 |
| 1 | W25Q16JVSSIQ | Board_U2 | U2 |
| 1 | TPS61023DRLR | Board_U3 | U3 |
| 1 | AP2120N-3.2TRG1 | Board_U5 | U5 |
| 1 | USBLC6-2SC6 | Board_U9 | U9 |
| 1 | SAA1099 DIP18 | Board_U10 | U10 |
| 1 | SN76489AN DIP16 | Board_U11 | U11 |
| 1 | SN76489AN DIP16 | Board_U12 | U12 |
| 1 | C191867 6N137S(T1) | Board_U13 | U13 |
| 1 | TLV9004IPWR | Board_U14 | U14 |
| 1 | C2058050 TLV9004IPWR CV BUFFER | Board_U15 | U15 |
| 1 | ADS1115IDGSR | Board_U16 | U16 |
| 1 | C20526 MMBT3904(RANGE:100-300) | Board_Q3 | Q3 |
| 1 | C20526 MMBT3904(RANGE:100-300) | Board_Q4 | Q4 |
| 1 | C20625731 ABM8-272-T3 12MHz | Board_Y1 | Y1 |
| 1 | C165948 USB-C MIDI DEVICE / POWER | Board_J1 | J1 |
| 1 | C95562 TRS MIDI IN TYPE A | Board_J2 | J2 |
| 1 | C95562 STEREO LINE OUT | Board_J3 | J3 |
| 1 | SWD | Board_J4 | J4 |
| 1 | C5248080 HS96L03W2C03 OLED INTERFACE | Board_J5 | J5 |
Show 128 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CV1_IN | Board_J6 | J6 |
| 1 | GATE1_IN | Board_J7 | J7 |
| 1 | CV2_IN | Board_J8 | J8 |
| 1 | GATE2_IN | Board_J9 | J9 |
| 1 | BOOT | Board_JP1 | JP1 |
| 1 | RESET | Board_JP2 | JP2 |
| 1 | C318884 UI_MINUS | Board_SW5 | SW5 |
| 1 | C318884 UI_OK | Board_SW6 | SW6 |
| 1 | C318884 UI_PLUS | Board_SW7 | SW7 |
| 1 | 1N4148W | Board_D1 | D1 |
| 1 | C2286 RED STATUS | Board_D2 | D2 |
| 1 | BAT54S | Board_D3 | D3 |
| 1 | BAT54S | Board_D4 | D4 |
| 1 | 1N4148W | Board_D5 | D5 |
| 1 | 1N4148W | Board_D6 | D6 |
| 1 | C22859 10R analog RC filter | Board_FB1 | FB1 |
| 1 | C325980 SLO0520H1R0MTT 1uH | Board_L1 | L1 |
| 1 | C1644 15p C0G | Board_C1 | C1 |
| 1 | C1644 15p C0G | Board_C2 | C2 |
| 1 | 100N 100n | Board_C3 | C3 |
| 1 | 100N 100n | Board_C4 | C4 |
| 1 | 100N 100n | Board_C5 | C5 |
| 1 | 100N 100n | Board_C6 | C6 |
| 1 | 100N 100n | Board_C7 | C7 |
| 1 | 100N 100n | Board_C8 | C8 |
| 1 | 100N 100n | Board_C9 | C9 |
| 1 | 100N 100n | Board_C10 | C10 |
| 1 | 100N 100n | Board_C11 | C11 |
| 1 | 100N 100n | Board_C12 | C12 |
| 1 | 100N 100n | Board_C13 | C13 |
| 1 | 1u | Board_C14 | C14 |
| 1 | 1u | Board_C15 | C15 |
| 1 | 1u | Board_C16 | C16 |
| 1 | C45783 22u 25V | Board_C18 | C18 |
| 1 | C45783 22u 25V | Board_C19 | C19 |
| 1 | C19666 4.7u 16V | Board_C21 | C21 |
| 1 | C19666 4.7u 16V | Board_C22 | C22 |
| 1 | 100N 100n | Board_C28 | C28 |
| 1 | 100N 100n | Board_C29 | C29 |
| 1 | 100N 100n | Board_C30 | C30 |
| 1 | C19666 4.7u 16V | Board_C31 | C31 |
| 1 | C19666 4.7u 16V | Board_C32 | C32 |
| 1 | C19666 4.7u 16V | Board_C33 | C33 |
| 1 | 100N 100n | Board_C34 | C34 |
| 1 | C45783 22u 25V | Board_C35 | C35 |
| 1 | 100N 100n | Board_C36 | C36 |
| 1 | C19666 4.7u 16V | Board_C37 | C37 |
| 1 | 1u | Board_C38 | C38 |
| 1 | 1u | Board_C39 | C39 |
| 1 | 1u | Board_C40 | C40 |
| 1 | 1u | Board_C41 | C41 |
| 1 | C1620 470p X7R | Board_C42 | C42 |
| 1 | C19702 10u 10V | Board_C43 | C43 |
| 1 | C1620 470p X7R | Board_C44 | C44 |
| 1 | C19702 10u 10V | Board_C45 | C45 |
| 1 | 100N 100n | Board_C50 | C50 |
| 1 | 100N 100n | Board_C51 | C51 |
| 1 | 1u | Board_C52 | C52 |
| 1 | 100N 100n | Board_C53 | C53 |
| 1 | 100N 100n | Board_C54 | C54 |
| 1 | 100N 100n | Board_C55 | C55 |
| 1 | 100N 100n | Board_C56 | C56 |
| 1 | 100N 100n | Board_C57 | C57 |
| 1 | 100N 100n | Board_C58 | C58 |
| 1 | 1k | Board_R1 | R1 |
| 1 | 10K 10k | Board_R2 | R2 |
| 1 | 10K 10k | Board_R3 | R3 |
| 1 | 10R | Board_R4 | R4 |
| 1 | 1k | Board_R5 | R5 |
| 1 | 100K 100k | Board_R6 | R6 |
| 1 | 22K 22k | Board_R7 | R7 |
| 1 | 3k | Board_R8 | R8 |
| 1 | 27R | Board_R11 | R11 |
| 1 | 27R | Board_R12 | R12 |
| 1 | 4.7K 4.7k | Board_R16 | R16 |
| 1 | 4.7K 4.7k | Board_R17 | R17 |
| 1 | 33R | Board_R26 | R26 |
| 1 | 33R | Board_R27 | R27 |
| 1 | 100K 100k | Board_R28 | R28 |
| 1 | 100K 100k | Board_R29 | R29 |
| 1 | 100K 100k | Board_R30 | R30 |
| 1 | 100K 100k | Board_R31 | R31 |
| 1 | 10K 10k | Board_R32 | R32 |
| 1 | 100K 100k | Board_R35 | R35 |
| 1 | 100K 100k | Board_R36 | R36 |
| 1 | 100K 100k | Board_R37 | R37 |
| 1 | 220R | Board_R38 | R38 |
| 1 | 2.2K 2.2k | Board_R39 | R39 |
| 1 | 10K 10k | Board_R40 | R40 |
| 1 | 10K 10k | Board_R41 | R41 |
| 1 | 10K 10k | Board_R42 | R42 |
| 1 | 1.5K 1.5k | Board_R43 | R43 |
| 1 | 1.5K 1.5k | Board_R44 | R44 |
| 1 | 22K 22k | Board_R45 | R45 |
| 1 | 22K 22k | Board_R46 | R46 |
| 1 | 22K 22k | Board_R47 | R47 |
| 1 | 22K 22k | Board_R48 | R48 |
| 1 | 10K 10k | Board_R49 | R49 |
| 1 | 100R | Board_R50 | R50 |
| 1 | 100K 100k | Board_R51 | R51 |
| 1 | 10K 10k | Board_R52 | R52 |
| 1 | 100R | Board_R53 | R53 |
| 1 | 100K 100k | Board_R54 | R54 |
| 1 | 2.2K 2.2k | Board_R55 | R55 |
| 1 | 5.1K 5.1k | Board_R58 | R58 |
| 1 | 5.1K 5.1k | Board_R59 | R59 |
| 1 | 100K 100k | Board_R61 | R61 |
| 1 | 100K 100k | Board_R62 | R62 |
| 1 | 100K 100k | Board_R63 | R63 |
| 1 | 100K 100k | Board_R64 | R64 |
| 1 | 10K 10k | Board_R66 | R66 |
| 1 | 10K 10k | Board_R67 | R67 |
| 1 | C855559 100k 0.1% | Board_R68 | R68 |
| 1 | C95204 10k 0.1% | Board_R69 | R69 |
| 1 | C855559 100k 0.1% | Board_R70 | R70 |
| 1 | C95204 10k 0.1% | Board_R71 | R71 |
| 1 | C855559 100k 0.1% | Board_R72 | R72 |
| 1 | C95204 10k 0.1% | Board_R73 | R73 |
| 1 | 2.2K 2.2k | Board_R74 | R74 |
| 1 | 100K 100k | Board_R76 | R76 |
| 1 | 100K 100k | Board_R77 | R77 |
| 1 | 10K 10k | Board_R78 | R78 |
| 1 | 100K 100k | Board_R79 | R79 |
| 1 | 100K 100k | Board_R80 | R80 |
| 1 | 10K 10k | Board_R81 | R81 |
| 1 | 10K 10k | Board_R82 | R82 |
| 1 | 10K 10k | Board_R83 | R83 |
| 1 | 10K 10k | Board_R84 | R84 |
Chiptune usb cv design files
The KiCad project lives in the Bongorian/chiptune-usb-cv repository on GitHub; these links point at the commit this page was built from.
Chiptune usb cv: common questions
What microcontroller does the Chiptune usb cv use?
The Chiptune usb cv is built around the RP2040, from the RP2040/RP2350 family.
How big is the Chiptune usb cv PCB?
The Chiptune usb cv measures 85 × 54 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Chiptune usb cv?
148 components, from 148 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Chiptune usb cv design files?
From the Bongorian/chiptune-usb-cv repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Chiptune usb cv design in my own project?
The repository has no license, so all rights stay with Bongorian. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Chiptune usb cv without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
