Agentdeck PCB layout, top view — open source ESP32 board by Brillar0101

About the Agentdeck PCB

Agentdeck is an open source ESP32 PCB design by Brillar0101, published on GitHub under the MIT license. It is a 2-layer board measuring 150 × 110 mm, with 119 components from 27 distinct parts.

Its main chip is the ESP32-S3-WROOM-1-N8R2, from the ESP32 family. Other key parts include the SN74AHCT1G125, USBLC6-2SC6, TP4056 and RT9080-33GJ5. By type, the board carries 31 capacitors, 23 switches, 21 LEDs, 21 diodes, 13 resistors and 5 ICs.

It belongs with the keyboards and power & battery designs in this gallery, and the repository also holds 1 earlier revision of it.

From the project

RP2040 macropad for supervising AI coding agents: 13 hot-swap keys with per-key RGB status, encoder, joystick, 4-layer PCB, CircuitPython firmware, printable enclosure

AgentDeck is an open-source desk macropad for supervising AI coding agents.

AgentDeck is optimized for people running several coding agents at once who want glanceable status and one-hand control. It is a desk device, not a portable one: USB-C only, no battery, no radio.

Six agent keys light up with each agent's live state (idle, thinking, working, blocked, done). Press one to focus that session. The command keys accept or reject work, the dial scrubs and confirms, and the joystick navigates. A host bridge maps Claude Code hooks to the key colours, so the board answers "which of my sessions…

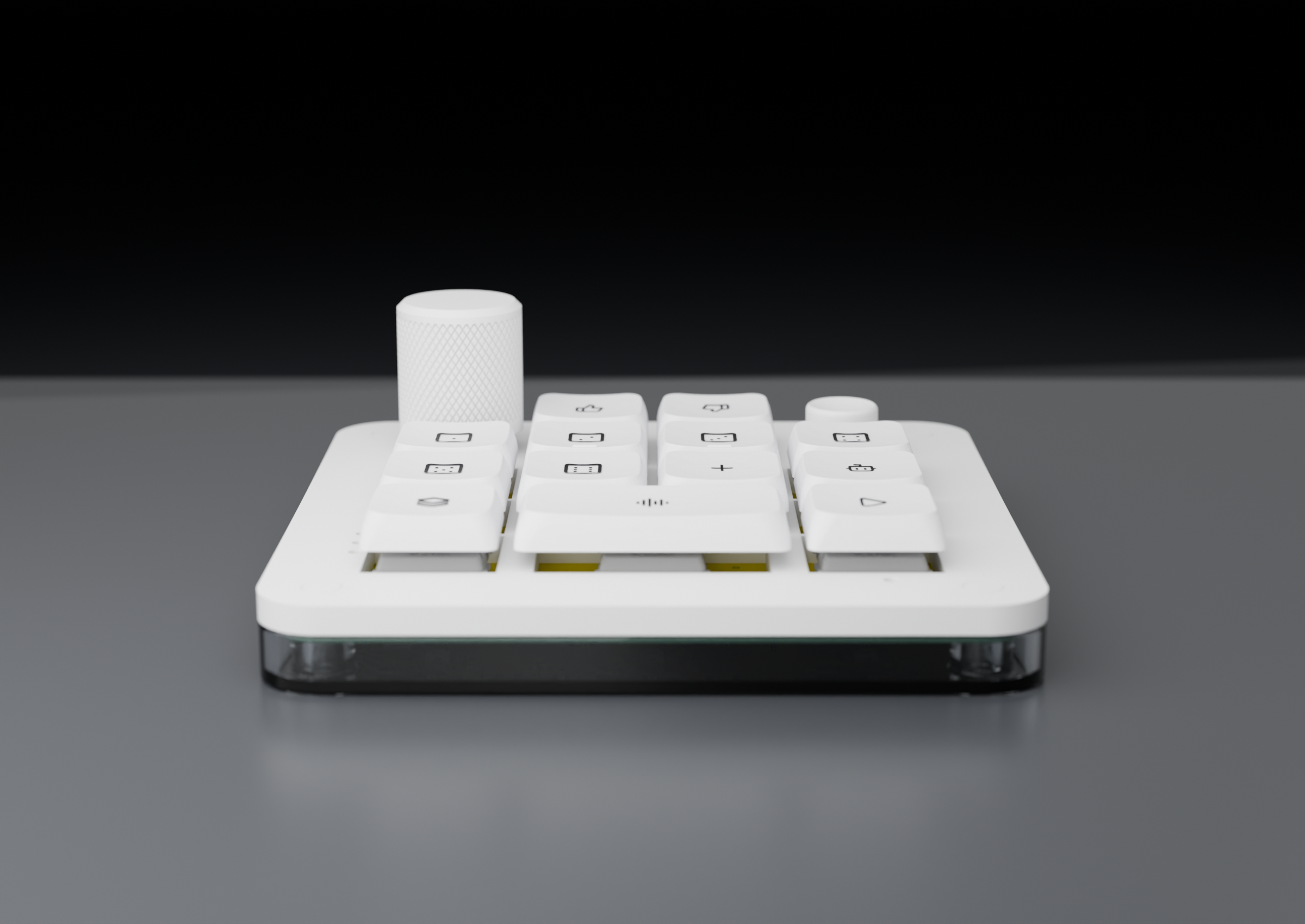

Agentdeck, from the project README
From the project README

Main components on the Agentdeck

ESP32-S3-WROOM-1-N8R2SN74AHCT1G125USBLC6-2SC6TP4056RT9080-33GJ5

Agentdeck bill of materials (BOM)

119 components, 27 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S3-WROOM-1-N8R2
WIRELM-SMD_ESP32-S3-WROOM-1
U1
1
SN74AHCT1G125
SOT-23-5_L3.0-W1.7-P0.95-LS2.8-BR
U2
1
USBLC6-2SC6
SOT-23-6_L2.9-W1.6-P0.95-LS2.8-BL
U3
1
TP4056
ESOP-8_TP4056
U4
1
RT9080-33GJ5
SOT-23-5_L3.0-W1.7-P0.95-LS2.8-BR
U5
1
AO3401A
SOT-23
Q1
1
TYPE-C-31-M-12
USB-C_SMD-TYPE-C-31-M-12_1
J1
1
C295747
JST_PH_S2B-PH-SM4-TB_1x02-1MP_P2.00mm_Horizontal
J2
1
EC11
SW-TH_EC11E1820402
ENC1
1
SKRHABE010
SKQUCAA010
JS1
20
C400229
ChocV1_Direct
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +12
1
MSK12C02
SW25
2
SW-SMD_4P-L5.1-W5.1-P3.70-LS6.5-TL_H1.5
SW26, SW27
20
SK6812MINI-E
LED-SMD_4P-L3.2-W2.8-LS5.9_SK6812MINI-E
LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +12
1
HS96L03W2C03
OLED_HS96L03
OLED1
20
1N4148W
D_SOD-123
D1, D2, D3, D4, D5, D6, D7, D8 +12
1
SS34
D_SMA
D25
27
100NF
C_0603_1608Metric
C1, C2, C3, C5, C8, C9, C10, C12 +19
2
10UF
C_0805_2012Metric
C4, C11
2
1UF
C_0805_2012Metric
C6, C7
Show 7 more
QtyPartRefs
2
5.1K
R_0603_1608Metric
R1, R2
1
2.4K
R_0603_1608Metric
R3
4
10K
R_0603_1608Metric
R4, R5, R9, R10
2
100K
R_0603_1608Metric
R6, R7
1
47K
R_0603_1608Metric
R8
1
330R
R_0603_1608Metric
R11
2
4.7K
R_0603_1608Metric
R12, R13

Agentdeck design files

The KiCad project lives in the Brillar0101/agentdeck repository on GitHub; these links point at the commit this page was built from.

Agentdeck: common questions

What microcontroller does the Agentdeck use?

The Agentdeck is built around the ESP32-S3-WROOM-1-N8R2, from the ESP32 family.

How big is the Agentdeck PCB?

The Agentdeck measures 150 × 110 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Agentdeck?

119 components, from 27 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Agentdeck design files?

From the Brillar0101/agentdeck repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Agentdeck design in my own project?

Yes, under the terms of its MIT license, which Brillar0101 chose for the repository.

Can I test firmware for the Agentdeck without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
