About the KU-14194HB-RevB PCB
KU-14194HB-RevB is an open source PCB design by bwack, published on GitHub. It is a 2-layer board measuring 390.2 × 180.3 mm, with 221 components from 90 distinct parts.
Other key parts include the CIA_U1, CIA_U2, 2364A, 2332A and 2114. By type, the board carries 97 capacitors, 34 resistors, 32 ICs, 26 inductors, 10 connectors and 5 transistors.
It belongs with the retro computing designs in this gallery.
From the project

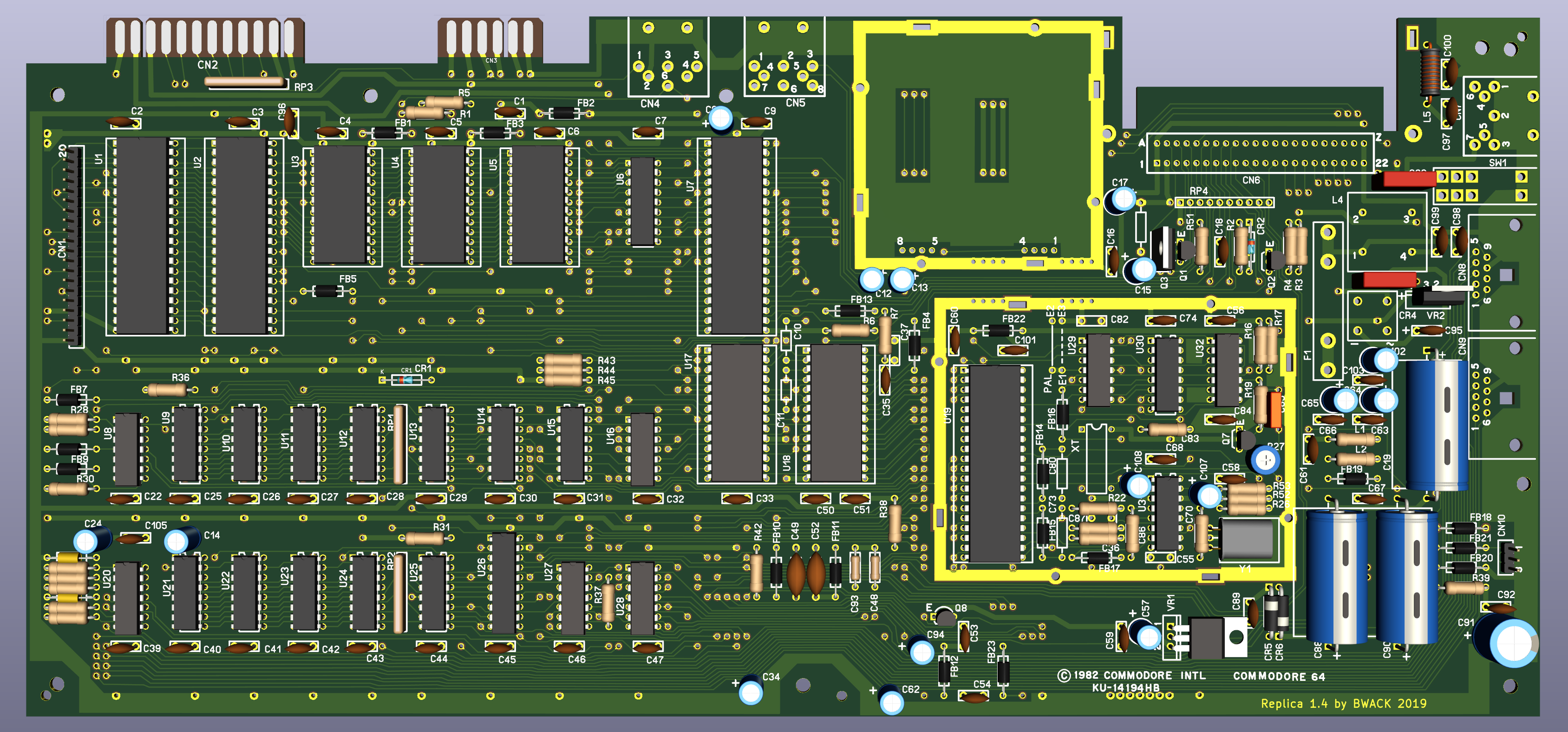

The rare KU14194HB C64 Motherboard schematics and layout. Retraced in and imported from SprintLayout.
The rare KU14194HB C64 Motherboard schematics and layout. Retraced in and imported from SprintLayout.
This PCB is a replica. It includes the mistakes that Commodore made.
It is necessary to cut a trace above R37 on the bottom side, and add a 1K resistor from R37 and up to a via. See the images folder to where to cut and add a resistor.
Notice how the main crystal oscillator Y1 body is grounded with a wire.

Main components on the KU-14194HB-RevB
KU-14194HB-RevB bill of materials (BOM)
221 components, 90 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CIA_U1 | DIP40 | U1 |
| 1 | CIA_U2 | DIP40 | U2 |
| 2 | 2364A | DIP24 | U3, U4 |
| 1 | 2332A | DIP24 | U5 |
| 1 | 2114 | DIP18 | U6 |
| 1 | 6510_MPU | DIP40 | U7 |
| 1 | 7406N | DIP14 | U8 |
| 8 | 4164-2 | DIP16 | U9, U10, U11, U12, U21, U22, U23, U24 |
| 2 | 74LS257 | DIP16 | U13, U25 |
| 1 | 74LS258 | DIP16 | U14 |
| 1 | 74LS139 | DIP16 | U15 |
| 2 | 4066_U28 | DIP14 | U16, U28 |
| 1 | PLA_U17 | DIP28 | U17 |
| 1 | 6581 | DIP28 | U18 |
| 1 | VIC | DIP40 | U19 |
| 1 | 556 | DIP14 | U20 |
| 1 | 74LS373 | DIP20 | U26 |
| 1 | 7408_U27 | DIP14 | U27 |
| 1 | 74LS74 | DIP14 | U29 |
| 1 | 74LS193 | DIP16 | U30 |
Show 70 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74LS629N | DIP16 | U31 |
| 1 | MC4044 | DIP14 | U32 |
| 1 | MODULATOR_LONGBOARD | MODULATOR_PORT_LONGBOARD | M1 |
| 4 | 2SC1815 | Q_NPN_ECB | Q1, Q2, Q7, Q8 |
| 1 | TP298/2SD880 | TO-220-3_Vertical | Q3 |
| 1 | Crystal | CRYSTAL | Y1 |
| 1 | KEYBOARD_20PIN_MALE | KEYBOARD_CON | CN1 |
| 1 | USER_PORT_CON | EDGE_CON_24P | CN2 |
| 1 | CASSETTE_PORT_CON | EDGE_CON_12P_TAPE | CN3 |
| 1 | SERIAL_BUS_CON | SERIAL_CON_DIN6 | CN4 |
| 1 | AV_CONN | AV_CON_DIN8 | CN5 |
| 1 | EXPANSION_PORT | EXPANSION_PORT | CN6 |
| 1 | POWER_CON | POWER_CON_DIN7 | CN7 |
| 2 | CONTROL_PORT | JOYPORT_DB9 | CN8, CN9 |
| 1 | LED_CONNECTOR | LED_CON | CN10 |
| 1 | IN4371 | ZENER_12.7mm | CR1 |
| 1 | IN755 | ZENER_12.7mm | CR2 |
| 1 | BRIDGE_RECTIFIER | BRIDGE_RECTIFIER | CR4 |
| 2 | 1N4001 | RECTIFIER_TH_P12.7mm | CR5, CR6 |
| 1 | JUMPER_WIRE | JUMPER_WIRE | E1 |
| 1 | 1A | FUSE | F1 |
| 2 | 33 | RP_ARRAY_7WAY | RP1, RP2 |
| 1 | R_ARRAY_7WAY_US | RP_ARRAY_7WAY | RP3 |
| 1 | R_ARRAY_9WAY_US | RP_ARRAY_9WAY | RP4 |
| 1 | POWER_SWITCH | POWER_SWITCH | SW1 |
| 1 | 7812 | VOTLAGE_REGULATOR_TO220 | VR1 |
| 1 | 7805 | VOTLAGE_REGULATOR_TO220 | VR2 |
| 1 | NOT USED | DIP4_DIP14_but_4_pins | XT1 |
| 13 | FERRITE_NARROW | FERRITE_BEAD_TH_P12.7mm | FB1, FB2, FB3, FB5, FB7, FB8, FB9, FB16 +5 |
| 9 | FERRITE_BEAD | FERRITE_BEAD_TH_P12.7mm | FB4, FB10, FB11, FB12, FB13, FB14, FB15, FB18 +1 |
| 2 | 2.2uH | RESISTOR | L1, L2 |
| 1 | CHOKE | CHOKE | L4 |
| 1 | 1.2uH | INDUCTOR_P15.24mm | L5 |
| 54 | .1 | CAP_P5.08mm | C1, C2, C3, C4, C5, C6, C7, C9 +46 |
| 14 | 10uF | CAP_ELYT_RADIAL_P2.54mm | C8, C12, C13, C14, C15, C17, C24, C34 +6 |
| 2 | 470pF | CAP_AXIAL_P10.16mm | C10, C11 |
| 1 | 2200uF | LARGE_ELECTROLYTIC_33x18_P38.10mm_AXIAL_TH | C19 |
| 2 | .22 | CAP_POLY_100V_TH_P10.16mm | C20, C21 |
| 1 | 360pF | CAP_AXIAL_P12.7mm | C23 |
| 4 | NC | CAP_P5.08mm | C35, C37, C55, C87 |
| 1 | 20pF | RESISTOR | C36 |
| 1 | 51pF | CAP_AXIAL_P12.7mm | C38 |
| 2 | 1800pF | RESISTOR_10.16mm | C48, C93 |
| 2 | .1 | CAP_P12mm | C49, C52 |
| 1 | 15pF 5% | RESISTOR | C70 |
| 2 | NC | CAP_AXIAL_P12.7mm | C73, C80 |
| 2 | 82pF | RESISTOR | C83, C86 |
| 1 | .47 | CAP_P5.08mm | C85 |
| 2 | 470uF | LARGE_ELECTROLYTIC_33x18_P38.10mm_AXIAL_TH | C88, C90 |
| 1 | 100uF | CAP_ELYT_RADIAL_P5.08mm | C91 |
| 2 | .22 | CAP_P5.08mm | C97, C100 |
| 2 | 10 | CAP_ELYT_RADIAL_P2.54mm | C107, C108 |
| 4 | 3K3 | RESISTOR | R1, R43, R44, R45 |
| 2 | 1.5K | RESISTOR | R2, R51 |
| 2 | 10K | RESISTOR | R3, R7 |
| 9 | 1K | RESISTOR | R4, R6, R16, R28, R29, R30, R31, R36 +1 |
| 1 | 560 | RESISTOR | R5 |
| 1 | 2K7 | RESISTOR | R17 |
| 1 | 15K | RESISTOR | R19 |
| 1 | 0R | RESISTOR | R22 |
| 1 | NC | RESISTOR | R23 |
| 2 | 100 | RESISTOR | R26, R53 |
| 1 | 500 | POTMETER | R27 |
| 2 | 47K | RESISTOR | R33, R34 |
| 1 | 470K | RESISTOR | R35 |
| 1 | 2.7K | RESISTOR | R37 |
| 1 | 390 | RESISTOR | R39 |
| 2 | 1M | RESISTOR | R41, R50 |
| 1 | ~ | RESISTOR | R42 |
| 1 | 330 | RESISTOR | R52 |
KU-14194HB-RevB design files
The KiCad project lives in the bwack/KU-14194HB-RevB-KiCad repository on GitHub; these links point at the commit this page was built from.
KU-14194HB-RevB: common questions
How big is the KU-14194HB-RevB PCB?
The KU-14194HB-RevB measures 390.2 × 180.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the KU-14194HB-RevB?
221 components, from 90 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the KU-14194HB-RevB design files?
From the bwack/KU-14194HB-RevB-KiCad repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the KU-14194HB-RevB design in my own project?
The repository has no license, so all rights stay with bwack. Use it as a reference, and ask the author before reusing the design.
