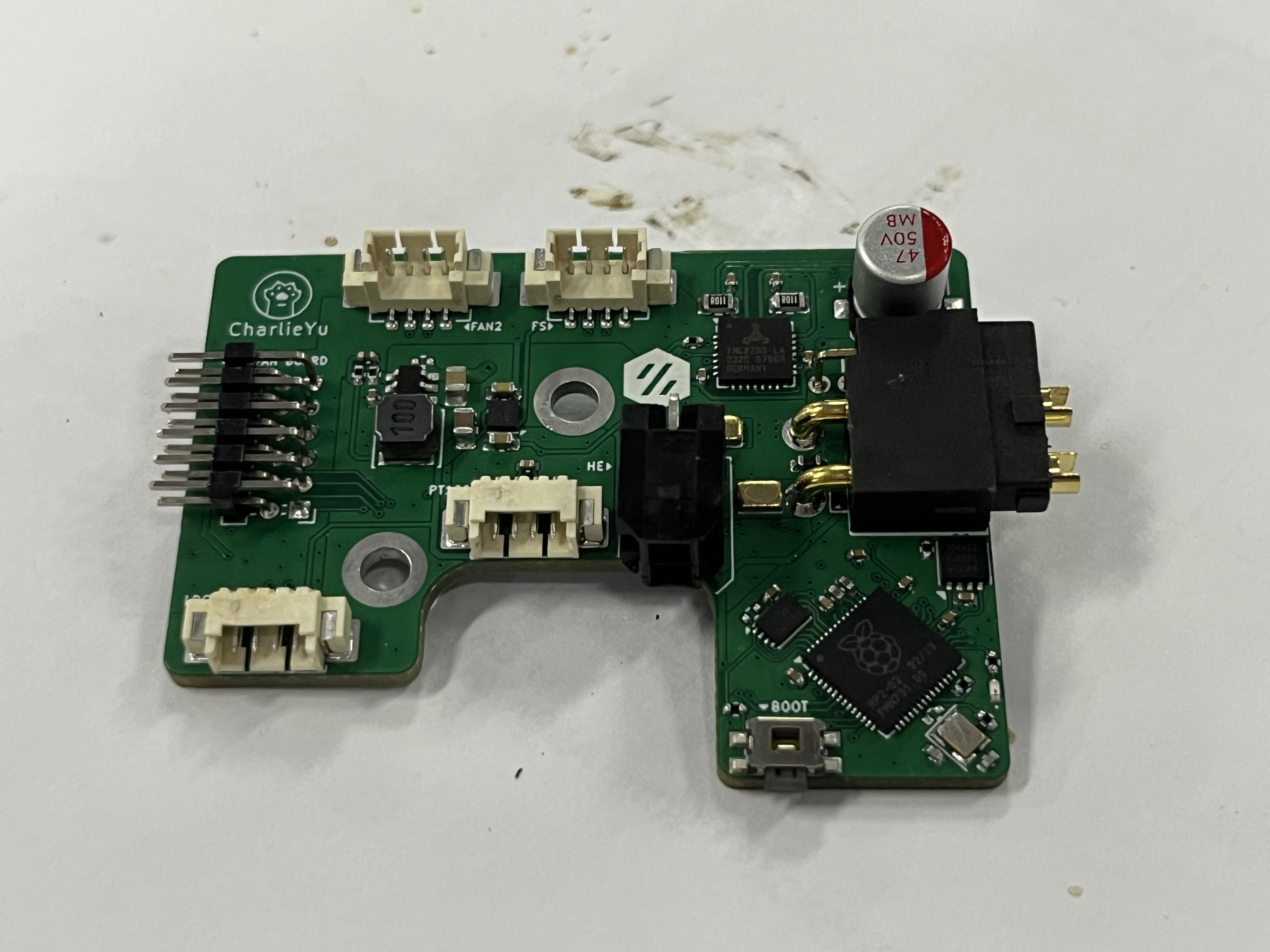

StealthBurner CAN Main
About the StealthBurner CAN Main PCB
StealthBurner CAN Main is an open source RP2040/RP2350 PCB design by CharlieYu4994, published on GitHub. It is a 4-layer board measuring 53 × 40 mm, with 87 components from 51 distinct parts.
Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the W25Q16JVUXIQ, TJA1042TK-3, TPS560430YF, LP5912-3.3DRV and TMC2209-LA. By type, the board carries 36 capacitors, 20 resistors, 10 ICs, 9 connectors, 4 diodes and 2 switches.
From the project
为 Voron Design 的 StealthBurner 设计的 CAN 总线工具头板
Main components on the StealthBurner CAN Main
StealthBurner CAN Main bill of materials (BOM)
87 components, 51 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | RP2040 | QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm | U1 |
| 1 | W25Q16JVUXIQ | USON-8_2.0x3.0mm_P0.5mm | U2 |
| 1 | TJA1042TK-3 | DFN-8-1EP_3x3mm_P0.65mm_EP1.55x2.4mm | U3 |
| 1 | TPS560430YF | SOT-23-6 | U4 |
| 1 | LP5912-3.3DRV | WSON-6-1EP_2x2mm_P0.65mm_EP1x1.6mm | U5 |
| 1 | TMC2209-LA | QFN-28-1EP_5x5mm_P0.5mm_EP3.75x3.75mm | U6 |
| 1 | OR | SOT-353_SC-70-5 | U7 |
| 1 | LIS2DW12 | LGA-12_2x2mm_P0.5mm | U8 |
| 1 | MAX31865XTP MAX31865xTP | TQFN-20-1EP_5x5mm_P0.65mm_EP3.25x3.25mm | U9 |
| 1 | LM50 | SOT-23 | U10 |
| 1 | BUK9M4R3-40H | LFPAK33 | Q1 |
| 1 | 12MHZ 12MHz | Crystal_SMD_2520-4Pin_2.5x2.0mm | Y1 |
| 1 | XT30PB_IN | AMASS_XT30PW-M_1x02_P2.50mm_Horizontal | J1 |
| 1 | Download | USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal | J2 |
| 1 | Excluder | JST_PH_B4B-PH-SM4-TB_1x04-1MP_P2.00mm_Vertical | J3 |
| 1 | PT100 | Molex_PicoBlade_53261-0471_1x04-1MP_P1.25mm_Horizontal | J4 |
| 1 | Hotend | Molex_Micro-Fit_3.0_43045-0200_2x01_P3.00mm_Horizontal | J5 |
| 1 | FAN2 | Molex_PicoBlade_53398-0471_1x04-1MP_P1.25mm_Vertical | J6 |
| 1 | LDC | Molex_PicoBlade_53261-0471_1x04-1MP_P1.25mm_Horizontal | J7 |
| 1 | FS | Molex_PicoBlade_53398-0471_1x04-1MP_P1.25mm_Vertical | J8 |
Show 31 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | FAN | PinHeader_2x06_P2.00mm_Horizontal | J9 |
| 1 | Select | Select | S1 |
| 1 | BOOT | Panasonic_EVQPUJ_EVQPUA | SW1 |
| 2 | PAD | PAD | TP1, TP2 |
| 2 | LED | LED_0402_1005Metric | D1, D4 |
| 1 | Schottky | D_SOD-882D | D2 |
| 1 | RCLAMP0522P | SLP1610P4 | D3 |
| 1 | 120R@100MHz | L_0603_1608Metric | FB1 |
| 1 | 10UH 10uH | L_Changjiang_FTC303020D | L1 |
| 23 | 100NF 100nF | C_0402_1005Metric | C1, C4, C5, C7, C8, C9, C10, C11 +15 |
| 2 | 15PF 15pF | C_0402_1005Metric | C2, C3 |
| 3 | 1UF 1uF | C_0402_1005Metric | C6, C13, C31 |
| 1 | 2.2UF 2.2uF | C_1206_3216Metric | C16 |
| 1 | 1UF 1uF | C_0603_1608Metric | C17 |
| 1 | 22UF 22uF | C_0805_2012Metric | C18 |
| 1 | 2.2UF 2.2uF | C_0603_1608Metric | C19 |
| 1 | 100UF 100uF | CP_Elec_6.3x7.7 | C22 |
| 1 | 22NF 22nF | C_0402_1005Metric | C25 |
| 1 | 4.7UF 4.7uF | C_0805_2012Metric | C26 |
| 1 | 10NF 10nF | C_0402_1005Metric | C33 |
| 4 | 1K | R_0402_1005Metric | R1, R3, R5, R19 |
| 5 | 10K | R_0402_1005Metric | R2, R10, R11, R14, R20 |
| 1 | NC | R_0402_1005Metric | R4 |
| 1 | 430R | R_0402_1005Metric | R6 |
| 1 | 120R/TBD | R_0805_2012Metric | R7 |
| 2 | 5.1K | R_0402_1005Metric | R8, R9 |
| 1 | 88.7K | R_0402_1005Metric | R12 |
| 1 | 22.1K | R_0402_1005Metric | R13 |
| 2 | 200MR 200mR | R_0805_2012Metric | R15, R16 |
| 1 | 430R | R_0603_1608Metric | R17 |
| 1 | 2.2K | R_0402_1005Metric | R18 |
StealthBurner CAN Main design files
The KiCad project lives in the CharlieYu4994/SB_CAN repository on GitHub; these links point at the commit this page was built from.
StealthBurner CAN Main: common questions
What microcontroller does the StealthBurner CAN Main use?
The StealthBurner CAN Main is built around the RP2040, from the RP2040/RP2350 family.
How big is the StealthBurner CAN Main PCB?
The StealthBurner CAN Main measures 53 × 40 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the StealthBurner CAN Main?
87 components, from 51 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the StealthBurner CAN Main design files?
From the CharlieYu4994/SB_CAN repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the StealthBurner CAN Main design in my own project?
The repository has no license, so all rights stay with CharlieYu4994. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the StealthBurner CAN Main without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
