FliphackV1 PCB layout, top view — open source ESP32 board by ChladpavPy

About the FliphackV1 PCB

FliphackV1 is an open source ESP32 PCB design by ChladpavPy, published on GitHub under the MIT license. It is a 2-layer board measuring 53 × 76 mm, with 58 components from 34 distinct parts.

Its main chip is the C3013946, from the ESP32 family. Other key parts include the TSOP4838, C32574, C7519 and C86534. By type, the board carries 17 capacitors, 17 resistors, 8 connectors, 5 ICs, 4 diodes and 3 transistors.

It belongs with the rf & radio, iot & wireless and displays & leds designs in this gallery.

From the project

A custom, pocket sized hardware multitool inspired by the Flipper Zero. Built to learn custom PCB design and integrate specific modules like GPS and long-range RF, including also the other Filpper Zero modules. Designed entirely from scratch in KiCad and Fusion 360.

A custom, pocket sized hardware multitool inspired by the Flipper Zero. Built to learn custom PCB design and integrate specific modules like GPS and long-range RF, including also the other Filpper Zero modules. Designed entirely from scratch in KiCad and Fusion 360.

Microcontroller: ESP32-S3 WROOM 1U (16MB Flash, 8MB PSRAM) with external wifi antena Display: 1.69" IPS TFT LCD (ST7789 SPI) Wireless and RF: Sub-GHz (CC1101), 2.4GHz (nRF24L01+PA+LNA), NFC/RFID (PN532), and also external WIFI antena Navigation: GPS (NEO-8M) Storage: MicroSD Card module for SD card Infrared: High-power IR…

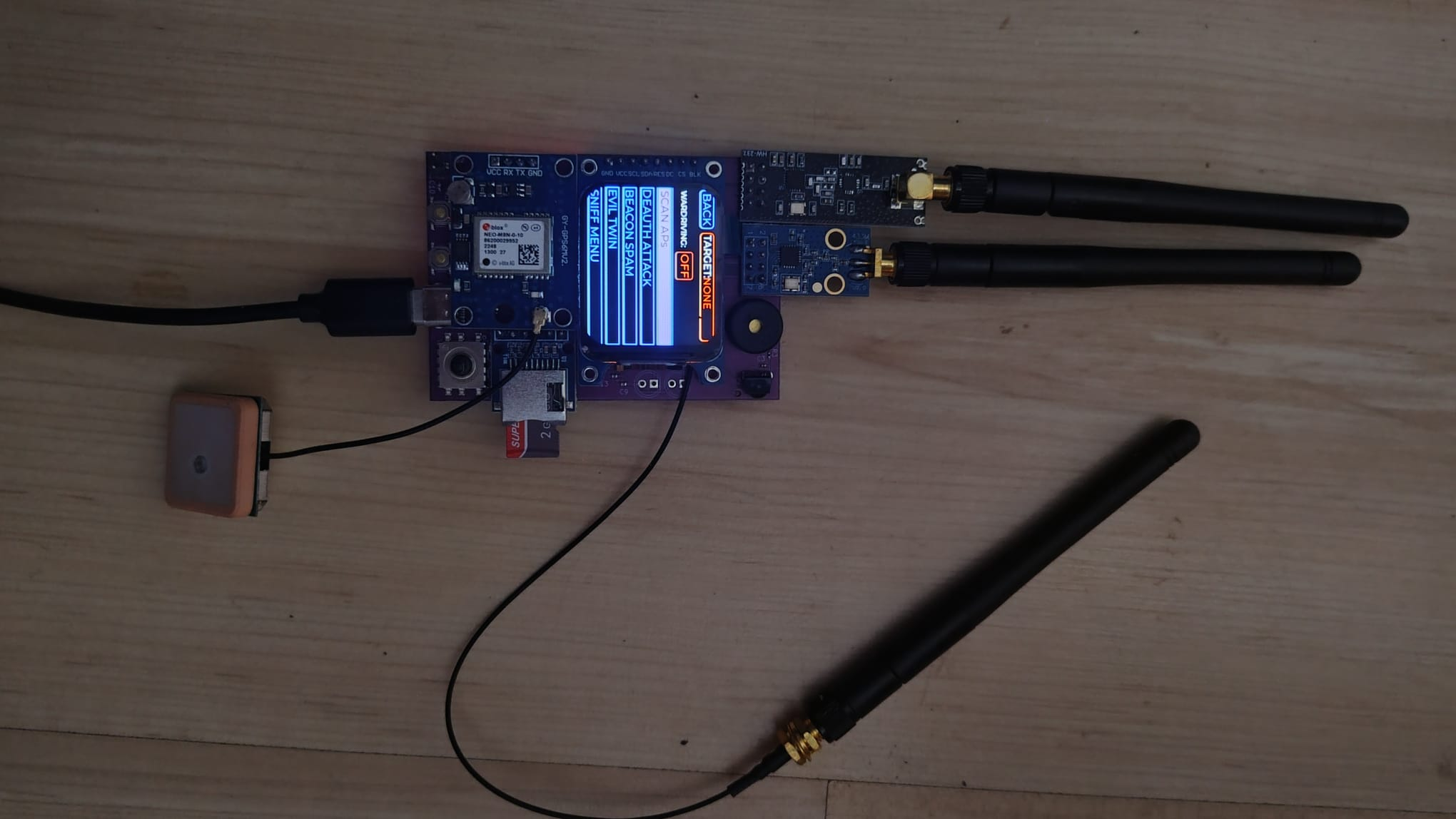

FliphackV1, from the project README
From the project README

Main components on the FliphackV1

C3013946TSOP4838C32574C7519C86534

FliphackV1 bill of materials (BOM)

58 components, 34 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C3013946
ESP32-S3-WROOM-1U
U1
1
TSOP4838
TSOP38438
U2
1
C32574
MCP73831-2-OT
U3
1
C7519
USBLC6-2SC6
U4
1
C86534
XC6220B331MR
U5
1
C15127
AO3401A
Q1
2
C20917
AO3400A
Q2, Q3
1
C19274016
USB_C_Receptacle_USB2.0_14P
J1
1
CONN_01X02_PIN
Conn_01x02_Pin
J2
1
J_NRF24
J4
1
CC1101_MODULE
CC1101_Module
J6
1
NFC_PN532
J9
1
SD_Card_Module
J10
1
1.69 inch IPS TFT LCD Display Module ST7789 SPI
J11
1
NEO-8M GPS Module
J12
1
Buzzer
BZ1
1
C318884
Flash
Flash1
1
C318884
Reset
Reset2
1
C2858290
Button_Switch_SMD:SW-SMD-6P-L10.5-W10.0_C2858290
SW1
1
C2286
LED
D1
Show 14 more
QtyPartRefs
1
C2480
SS14
D4
2
IR LED
D7, D8
11
C15525
10uF
C1, C2, C6, C7, C8, C9, C11, C12 +3
3
C1525
100nF
C3, C4, C10
1
C52923
1uF
C5
2
C1525
0.1uF
C22, C35
2
C4109
2K
R1, R15
2
C17168
0R
R2, R18
2
C25076
100R
R3, R5
4
C25744
10K
R4, R11, R13, R21
2
C17675
4.7R
R8, R9
2
C25764
200K
R12, R19
2
C25905
5.1K
R14, R17
1
C25741
100K
R20
