About the ProtoBoard PCB

ProtoBoard is an open source ESP32 PCB design by ciborg971, published on GitHub under the MIT license. It is a 4-layer board measuring 56 × 48 mm, with 84 components from 28 distinct parts.

Its main chip is the ESP32-S3-MINI-1, from the ESP32 family. Other key parts include the CD74HC4067SM, LM1084-5.0, HY2120, WS2812-2020 and LM1084-3.3. By type, the board carries 31 resistors, 24 capacitors, 14 ICs, 11 connectors, 2 transistors and 2 switches.

It belongs with the power & battery and iot & wireless designs in this gallery.

From the project

A small PCB for great (next gen) gloves

A small board (48 x 56 mm) for great gloves !

Still a work in progress, current version does NOT work

This design does NOT work right now, do NOT buy it unless you can debug it by yourself You can buy the board via PCBWay using the file ProtoBoard.kicad_pcb.zip and the BOM ProtoBoard.xlsx.

This project is sponsored by PCBWay, thanks to them for their quality PCB + assembly !

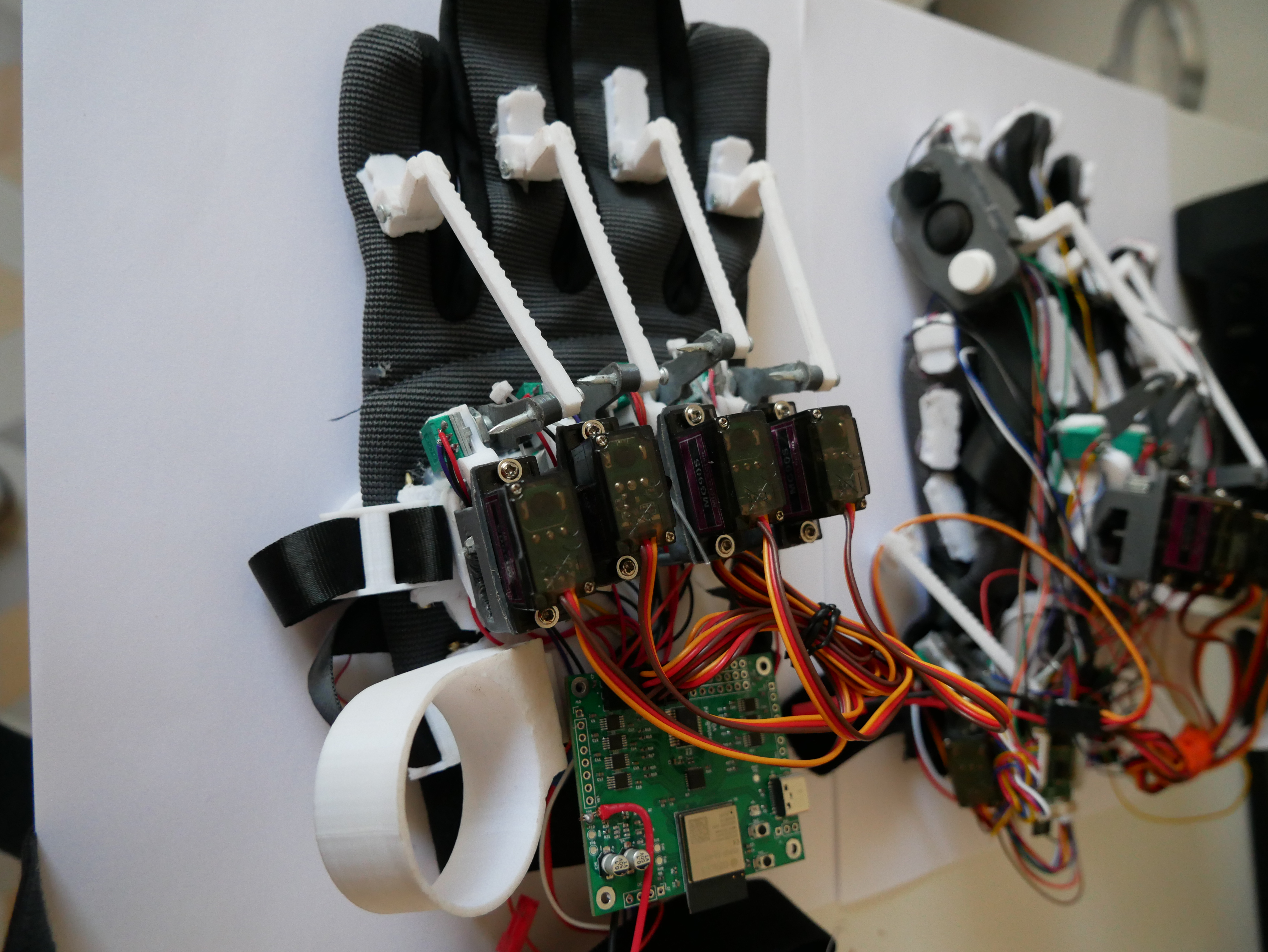

ProtoBoard, from the project README
From the project README

Main components on the ProtoBoard

ESP32-S3-MINI-1CD74HC4067SMLM1084-5.0HY2120WS2812-2020LM1084-3.3TCA9548ARGERDRV2605LDGS

ProtoBoard bill of materials (BOM)

84 components, 28 distinct parts.

QtyPartRefs
1
ESP32-S3-MINI-1
U1
1
CD74HC4067SM
U2
1
LM1084-5.0
U3
1
HY2120
U4
1
WS2812-2020
U5
1
LM1084-3.3
U6
1
TCA9548ARGER
U7
7
DRV2605LDGS
U8, U9, U10, U11, U12, U13, U14
2
HX2300A
Q1, Q2
1
Conn_01x03_Female
J1
1
TYPE-C-31-M-12
J2
1
Conn_01x04_Female
J3
3
Conn_01x10_Female
J4, J7, J9
3
Conn_01x05_Female
J5, J6, J8
2
Conn_01x08_Female
J10, J12
2
SW_Push
SW1, SW2
10
10uF
C1, C5, C6, C8, C10, C11, C12, C17 +2
2
0.1uF
C2, C4
3
22uF
C3, C7, C9
7
1uF
C13, C14, C15, C16, C20, C21, C22
Show 8 more
QtyPartRefs
2
0.1uF
C25, C26
1
5M
R1
1
1M
R2
2
5K1
R3, R5
8
10K
R4, R6, R7, R8, R9, R10, R11, R12
16
4.7K
R13, R14, R15, R16, R17, R18, R19, R20 +8
1
2K
R29
2
330R
R30, R31

ProtoBoard design files

The KiCad project lives in the ciborg971/ProtoBoard repository on GitHub; these links point at the commit this page was built from.

ProtoBoard: common questions

What microcontroller does the ProtoBoard use?

The ProtoBoard is built around the ESP32-S3-MINI-1, from the ESP32 family.

How big is the ProtoBoard PCB?

The ProtoBoard measures 56 × 48 mm, has 4 copper layers and is 4.69 mm thick.

How many components are on the ProtoBoard?

84 components, from 28 distinct parts. The full bill of materials is listed on this page.

Where can I download the ProtoBoard design files?

From the ciborg971/ProtoBoard repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ProtoBoard design in my own project?

Yes, under the terms of its MIT license, which ciborg971 chose for the repository.

Can I test firmware for the ProtoBoard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
