POV-Display

Circuit-Digest·POV-Display·PCB/POV LED.kicad_pcb

POV-Display PCB layout, top view — open source ESP32 board by Circuit-Digest

About the POV-Display PCB

POV-Display is an open source ESP32 PCB design by Circuit-Digest, published on GitHub. It is a 2-layer board measuring 208 × 58 mm, with 324 components from 27 distinct parts.

Its main chip is the ESP32-WROOM-32D, from the ESP32 family. Other key parts include the 74HC595D-Q100,118, TP4056-42-ESOP8, AH3572-SA-7, CH340K and DDC114TU-7-F. By type, the board carries 135 resistors, 130 diodes, 25 ICs, 25 capacitors, 4 connectors and 2 LEDs.

It belongs with the displays & leds designs in this gallery.

From the project

DIY POV Display Tutorial using ESP32 Arduino

DIY POV Display Tutorial using ESP32 Arduino

Click here For other ESP32 tutorials. Persistence of Vision is a fundamental principle that allows our eyes to perceive continuous motion from separate images, a concept crucial to the illusion of motion in cinema. When I was a kid, I was always fascinated with it. So, in this project, we are going to use this fascinating optical phenomenon to create a cool-looking POV Display. You must have seen a lot of such projects on the web, but most of them are limited to very low resolution and just display some texts and geometries. We plan to create a…

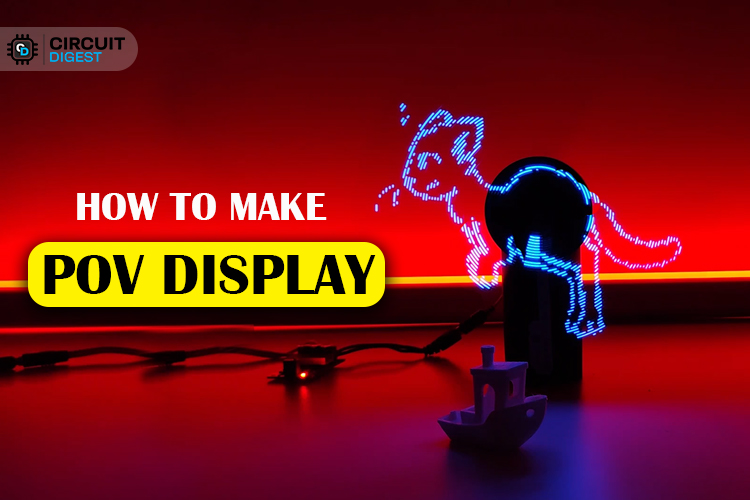

POV-Display, from the project README
From the project README

Main components on the POV-Display

74HC595D-Q100,118TP4056-42-ESOP8AH3572-SA-7ESP32-WROOM-32DCH340KDDC114TU-7-F100KAO3041AMS1117-3.3

POV-Display bill of materials (BOM)

324 components, 27 distinct parts — part numbers from the project's BOM.

QtyPartRefs
16
74HC595D-Q100,118
74HC595D
IC1, IC2, IC3, IC4, IC5, IC6, IC7, IC8 +8
1
TP4056-42-ESOP8
TP4056
IC9
2
AH3572-SA-7
U1, U3
1
ESP32-WROOM-32D
U2
1
CH340K
ch340k
U4
1
DDC114TU-7-F
U5
1
100K
U6
1
AO3041
U7
1
AMS1117-3.3
U8
1
USB_C_RECEPTACLE_USB2.0
USB_C_Receptacle_USB2.0
J1
2
B2B-PH-SM4-TB(LF)(SN)
J2, J3
1
CONN_01X02
Conn_01x02
J4
1
UBOOT
BOOT1
1
RST
RST1
1
3.3K
Rprog1
2
CHG
LED1, LED2
128
LED_Small_Filled
D1, D2, D3, D4, D5, D6, D7, D8 +120
1
SS34
D67
1
POW_LED
D68
17
10UF
10uf
C1, C2, C3, C4, C5, C6, C7, C8 +9
Show 7 more
QtyPartRefs
4
0.1UF
0.1uf
C9, C10, C15, C16
3
10U
10u
C18, C19, C21
1
2.2UF
2.2uF
C20
130
1K
R1, R2, R3, R4, R5, R6, R7, R8 +122
2
10K
R66, R68
2
1.3K
R74, R75
1
470R
R76

POV-Display design files

The KiCad project lives in the Circuit-Digest/POV-Display repository on GitHub; these links point at the commit this page was built from.

POV-Display: common questions

What microcontroller does the POV-Display use?

The POV-Display is built around the ESP32-WROOM-32D, from the ESP32 family.

How big is the POV-Display PCB?

The POV-Display measures 208 × 58 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the POV-Display?

324 components, from 27 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the POV-Display design files?

From the Circuit-Digest/POV-Display repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the POV-Display design in my own project?

The repository has no license, so all rights stay with Circuit-Digest. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the POV-Display without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
