About the AQEYE-SB-D1 PCB

AQEYE-SB-D1 is an open source PCB design by CIRCUITSTATE, published on GitHub under the MIT license. It is a 2-layer board measuring 80 × 30 mm, with 65 components from 47 distinct parts.

Other key parts include the SCD40-D-R2, SGP40-D-R4, LM66200DRLR, TPS61023DRLR and AP22804AW5-7. By type, the board carries 23 connectors, 14 capacitors, 14 resistors, 5 ICs, 4 test points and 2 jumpers.

It belongs with the sensors designs in this gallery.

From the project

Sensor board for the AQEYE-D1 Air Quality Monitor.

AQEYE-SB-D1 is a PCB designed to hold the sensors for the AQEYE-D1 Air Quality Monitor project by CIRCUITSTATE Electronics. The board is designed to be connected to either the ESP32-S3-Touch-LCD-2.8 from Waveshare or the AQEYE-MB-D1 main board. A separate sensor board was designed to keep the sensitive components away from external interferences such as noise, heat and other effects. This also makes it easier to replace the sensors or to add new sensors in the future without having to redesign the main board. AQEYE-SB-D1 is a completely open-source hardware (OSHW) project designed in the…

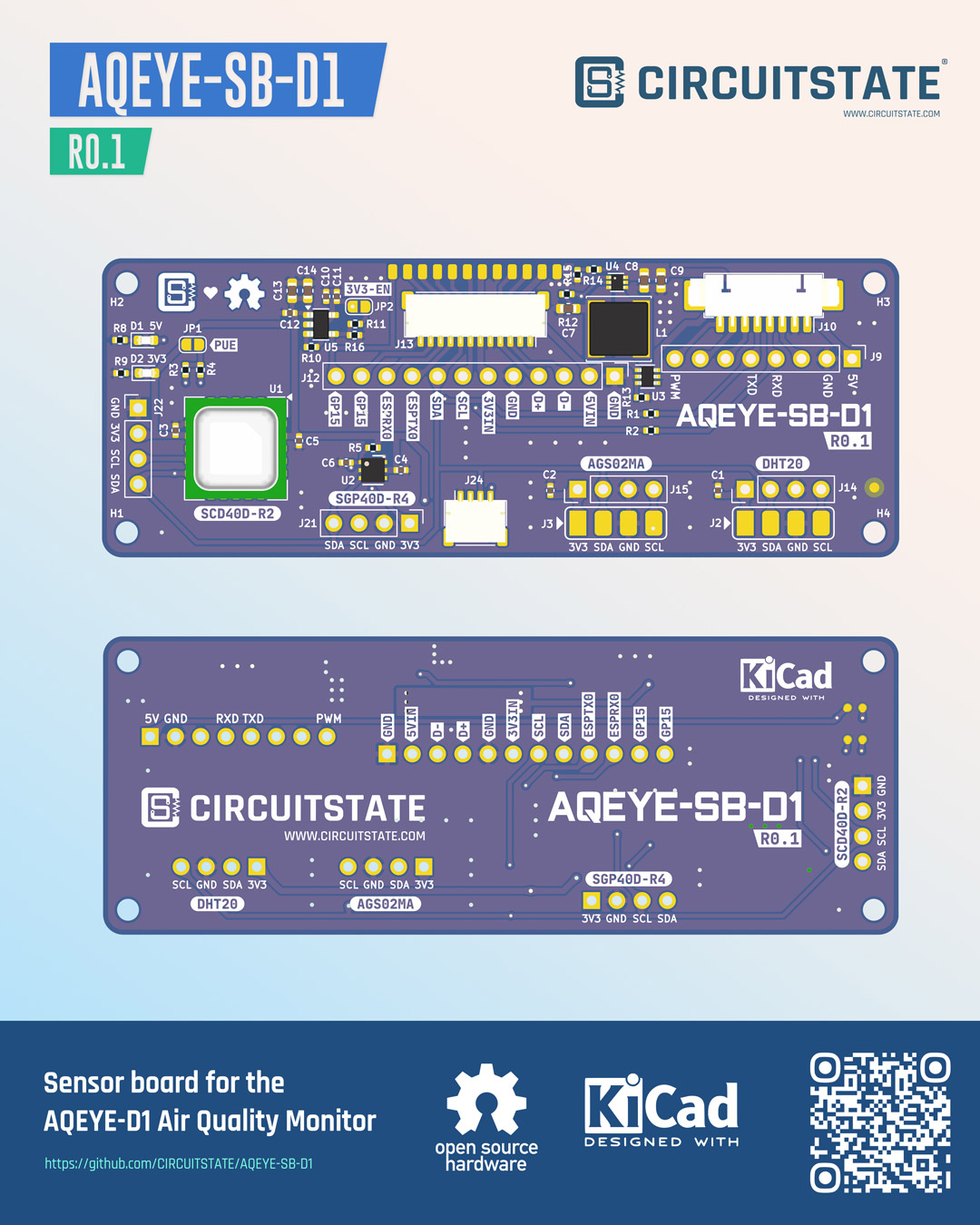

AQEYE-SB-D1, from the project README
From the project README

Main components on the AQEYE-SB-D1

SCD40-D-R2SGP40-D-R4LM66200DRLRTPS61023DRLRAP22804AW5-7

AQEYE-SB-D1 bill of materials (BOM)

65 components, 47 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SCD40-D-R2
Sensirion
U1
1
SGP40-D-R4
Sensirion
U2
1
LM66200DRLR
LM66100DCKR
Texas Instruments
U3
1
TPS61023DRLR
TPS61023
Texas Instruments
U4
1
AP22804AW5-7
AP22804AW5
Diodes Inc
U5
1
DNP
GPIO15
DNP
J1
1
DNP
DHT20_PAD
DNP
J2
1
DNP
AGS02MA_PAD
DNP
J3
1
DNP
GPIO18
DNP
J4
1
DNP
ESP_RXD0
DNP
J5
1
DNP
ESP_TXD0
DNP
J6
1
DNP
I2C_SDA
DNP
J7
1
DNP
I2C_SCL
DNP
J8
1
DNP
ZH06_Pin
DNP
J9
1
0532610871
ZH06_PicoBlade
Molex
J10
1
DNP
+3.3V
DNP
J11
1
DNP
MB_PINS
DNP
J12
1
SM12B-SRSS-TB
MB_CONNECTOR
JST
J13
1
DHT20
Asair
J14
1
AGS02MA
Asair
J15
Show 27 more
QtyPartRefs
2
DNP
GND
DNP
J16, J20
1
DNP
USB_D+
DNP
J17
1
DNP
USB_D-
DNP
J18
1
DNP
+5V
DNP
J19
1
DNP
SGP40-D-R4_CONN
DNP
J21
1
DNP
SCD40-D-R2_CONN
DNP
J22
1
SM04B-SRSS-TB
STEMMA-QT
JST
J24
1
DNP
I2C_PUE
DNP
JP1
1
DNP
3V3_EN
DNP
JP2
1
DNP
5V_LED_P
DNP
TP1
1
DNP
5V_LED_M
DNP
TP2
1
DNP
3V3_LED_P
DNP
TP3
1
DNP
3V3_LED_M
DNP
TP4
1
XL-1608SURC-06
5V_LED
XINGLIGHT
D1
1
XL-1608UOC-06
3V3_LED
XINGLIGHT
D2
1
CD54-1R0M
1uH
SHUOXING
L1
6
CC0402KRX5R6BB104
0.1uF
Yageo
C1, C2, C3, C5, C10, C12
3
GRM155R61A106ME11D
10uF
Murata
C4, C6, C11
5
CL10A226MP8NUNE
22uF
Samsung
C7, C8, C9, C13, C14
3
RC0402FR-071KL
1K
Yageo
R1, R2, R11
2
RC0402FR-075K1L
5.1K
Yageo
R3, R4
1
RC0402FR-074R7L
4.7R
Yageo
R5
1
RC0402FR-07330RL
330R
Yageo
R8
1
RC0402FR-7D220RL
220R
Yageo
R9
4
RC0402FR-0710KL
10K
Yageo
R10, R12, R13, R16
1
RC0402FR-07732KL
732K
Yageo
R14
1
RC0402FR-07100KL
100K
Yageo
R15

AQEYE-SB-D1 design files

The KiCad project lives in the CIRCUITSTATE/AQEYE-SB-D1 repository on GitHub; these links point at the commit this page was built from.

AQEYE-SB-D1: common questions

How big is the AQEYE-SB-D1 PCB?

The AQEYE-SB-D1 measures 80 × 30 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the AQEYE-SB-D1?

65 components, from 47 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the AQEYE-SB-D1 design files?

From the CIRCUITSTATE/AQEYE-SB-D1 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the AQEYE-SB-D1 design in my own project?

Yes, under the terms of its MIT license, which CIRCUITSTATE chose for the repository.
