Drishtikon PCB layout, top view — open source ESP32 board by Debanx3
Simulate this board

About the Drishtikon PCB

Drishtikon is an open source ESP32 PCB design by Debanx3, published on GitHub under the MIT license. It is a 4-layer board measuring 58.5 × 38.5 mm, with 40 components from 25 distinct parts.

Its main chip is the ESP32-S3-WROOM-1, from the ESP32 family. Other key parts include the TLV75801PDBV and D3V3XA4B10LP. By type, the board carries 10 capacitors, 8 connectors, 7 resistors, 5 diodes, 3 ICs and 2 switches.

It belongs with the iot & wireless designs in this gallery.

From the project

EdgeAI based human detection system for automated control of resistive and inductive loads at workspaces

+ The beginnings: Drishtikon is a framework consisting of two modules, the mainboard and the controller modules that can be powered directly from the 220VAC mains in dorms, libraries and canteens. The two boards communicate with each other using a BLE protocol and the mainboard is connected to the internet via Wi-Fi, it connects to the local network using hard coding.

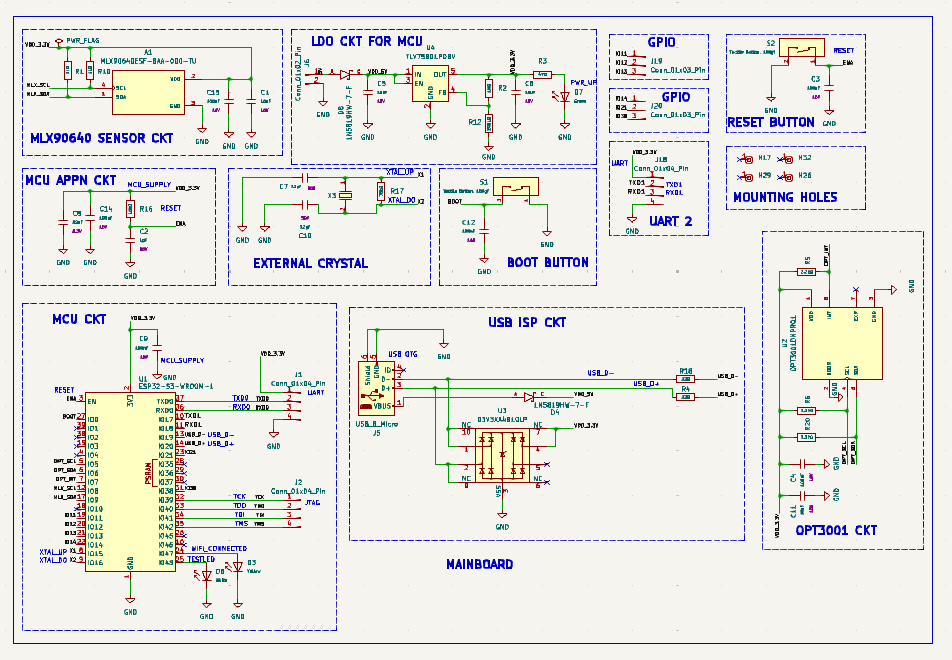

Drishtikon, from the project README
From the project README

Main components on the Drishtikon

ESP32-S3-WROOM-1TLV75801PDBVD3V3XA4B10LP

Drishtikon bill of materials (BOM)

40 components, 25 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S3-WROOM-1
U5
1
TLV75801PDBV
U6
1
D3V3XA4B10LP
U7
1
Q13FC1350000400
Seiko Epson
X1
1
CONN_01X02_PIN
Conn_01x02_Pin
J8
2
CONN_01X04_PIN
Conn_01x04_Pin
J9, J10
1
USB_B_Micro
J11
4
CONN_01X05_SOCKET
Conn_01x05_Socket
J13, J14, J15, J16
4
~
H22, H23, H24, H25
2
C720477
Tactile Button, 160gf
XUNPU
S3, S4
1
C2297
Green
Hubei KENTO Elec
D1
1
C34499
White
Hubei KENTO Elec
D2
1
C2296
Yellow
Hubei KENTO Elec
D5
2
1N5819HW-7-F
D9, D10
4
100NF
100nF
Samsung Electro-Mechanics
C13, C16, C19, C25
2
10UF
10uF
Samsung Electro-Mechanics
C17, C21
2
12PF
12pF
FH(Guangdong Fenghua Advanced Tech)
C18, C24
1
1PF
1pF
FH(Guangdong Fenghua Advanced Tech)
C20
1
22UF
22uF
Samsung Electro-Mechanics
C23
2
22Ω
UNI-ROYAL(Uniroyal Elec)
R7, R19
Show 5 more
QtyPartRefs
1
10kΩ
UNI-ROYAL(Uniroyal Elec)
R8
1
75kΩ
UNI-ROYAL(Uniroyal Elec)
R9
1
47Ω
UNI-ROYAL(Uniroyal Elec)
R11
1
1MΩ
UNI-ROYAL(Uniroyal Elec)
R14
1
200kΩ
UNI-ROYAL(Uniroyal Elec)
R15

Drishtikon design files

The KiCad project lives in the Debanx3/Drishtikon repository on GitHub; these links point at the commit this page was built from.

Drishtikon: common questions

What microcontroller does the Drishtikon use?

The Drishtikon is built around the ESP32-S3-WROOM-1, from the ESP32 family.

How big is the Drishtikon PCB?

The Drishtikon measures 58.5 × 38.5 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Drishtikon?

40 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Drishtikon design files?

From the Debanx3/Drishtikon repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Drishtikon design in my own project?

Yes, under the terms of its MIT license, which Debanx3 chose for the repository.

Can I test firmware for the Drishtikon without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
