About the Chipignite discover PCB

Chipignite discover is an open source RP2040/RP2350 PCB design by efabless, published on GitHub under the Apache-2.0 license. It is a 4-layer board measuring 53.5 × 65.5 mm, with 139 components from 46 distinct parts.

Its main chip is the SC0914(13), from the RP2040/RP2350 family. Other key parts include the TLV1117LV33DCYR, TPD1E05U06QDPYRQ1, 157112V12700, W25Q32JVSSIQ and AP2112K-1.2TRG1. By type, the board carries 52 capacitors, 50 resistors, 10 diodes, 9 connectors, 7 ICs and 6 switches.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

This FPGA experimentation and development board was developped for efabless chipignite workshops and labs to serve as an easy to use experimentation board and stepping stone towards ASIC digital design, allowing for simple migration of design to Tiny Tapeout projects.

It is released as open hardware, and all the design files are included here, as akicad project.

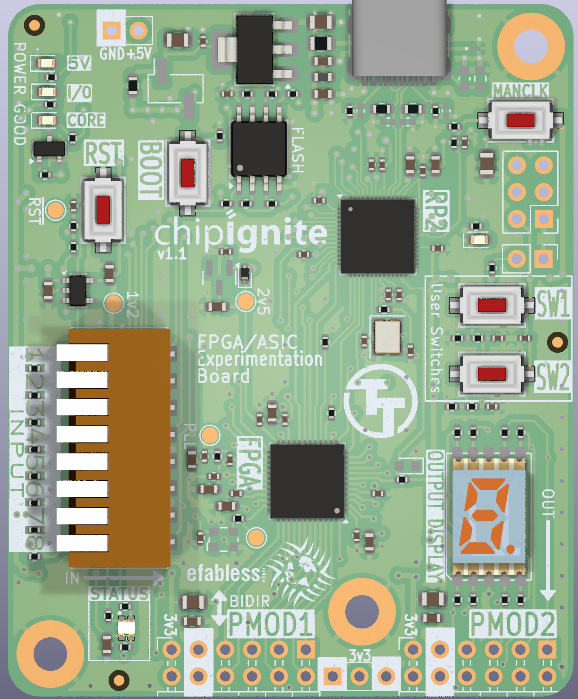

Chipignite discover, from the project README — From the project README

Main components on the Chipignite discover

TLV1117LV33DCYR TPD1E05U06QDPYRQ1 157112V12700 SC0914(13)W25Q32JVSSIQ AP2112K-1.2TRG1 ICE40UP5K-SG48ITR

Chipignite discover bill of materials (BOM)

139 components, 46 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	TLV1117LV33DCYR TLV1117LV33	SOT-223-3_TabPin2	U1
1	TPD1E05U06QDPYRQ1	Texas_DPY0002A_0.6x1mm_P0.65mm	U2
1	157112V12700	WL_S7DS-157112V12700	U3
1	SC0914(13) RP2040	QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm	U4
1	W25Q32JVSSIQ W25Q32JVSS	SOIC-8_5.23x5.23mm_P1.27mm	U5
1	AP2112K-1.2TRG1 AP2112K-1.2	SOT-23-5	U6
1	ICE40UP5K-SG48ITR	QFN-48-1EP_7x7mm_P0.5mm_EP5.6x5.6mm	U7
1	DMN2005K-7 DMN2005K	SOT-23	Q1
1	KC2520Z24.0000C1KX00 24MHz	Oscillator_SMD_ECS_2520MV-xxx-xx-4Pin_2.5x2.0mm	X1
1	ABM8W-12.0000MHZ-7-B1U-T3 12.0MHz	Crystal_SMD_3225-4Pin_3.2x2.5mm	Y1
2	CONN_01X02 Conn_01x02	PinHeader_1x02_P2.54mm_Vertical	J1, J10
1	10129380-902001BLF Conn_01x02	PinHeader_1x02_P2.54mm_Vertical_SMD_Pin1Right	J2
1	CONN_01X03 Conn_01x03	PinHeader_1x03_P2.54mm_Vertical	J3
1	USB-TYPE-C-019 USB_C	USB_C_Receptacle_HRO_TYPE-C-31-M-12	J4
2	613012243121	PinSocket_2x06_P2.54mm_PMODHost1A	J5, J6
1	CONN_02X03_ODD_EVEN Conn_02x03_Odd_Even	PinHeader_2x03_P2.54mm_Vertical	J7
1	61300611121 Conn_01x06	PinHeader_1x06_P2.54mm_Vertical_SMD_Pin1Right	J11
1	0ZCK0035FF2G 350mA	Fuse_0805_2012Metric	F1
5	434121025816	434121025816	SW1, SW2, SW3, SW4, SW5
1	DSPV08LSGET 193-8MSR	GENERIC_PIANO_8DIP	SW6

Show 26 more

Qty	Part	Footprint	Refs
2	0603ESDA-AEC1 TVS	R_0603_1608Metric	D1, D2
2	LED	LED_0603_1608Metric	D3, D6
1	1N4448WT	D_SOD-523	D4
1	BAS19LT1G BAS19	SOT-23	D5
1	EAST1616RGBB4 RGB	LED_EAST1616RGBA3	D7
3	CSL1901YW1 Yellow	LED_0603_1608Metric	D8, D9, D10
1	MFBM1V1608-121-R 120R	L_0603_1608Metric	FB1
8	CL10A105KA8NNNC C_1u_0603_50V	C_0603_1608Metric	C1, C2, C12, C13, C33, C34, C51, C52
4	GRM21BR6YA106KE43L C_10u_0805_35V	C_0805_2012Metric	C3, C48, C49, C50
1	CL21A226KOQNNNG 22uF	C_0805_2012Metric	C4
25	GRM155R71H104KE14J C_100n_0402_50V	C_0402_1005Metric	C5, C11, C16, C17, C18, C19, C20, C21 +17
4	CC0402JRNPO9BN330 C_33p_0402_50V	C_0402_1005Metric	C6, C7, C8, C9
1	6800PF 6800pF	C_0603_1608Metric	C10
2	CC0402CRNPO9BN4R0 4pF	C_0402_1005Metric	C14, C15
6	GRM188R61E475KE11D C_4p7u_0603_25V	C_0603_1608Metric	C26, C28, C30, C32, C35, C46
1	GRM188R61A106KE69D C_10u_0603_10V	C_0603_1608Metric	C39
2	CR0402-FX-5101GLF R_5k1_0402	R_0402_1005Metric	R1, R2
1	1M	R_0603_1608Metric	R3
6	CR0402-FX-1001GLF R_1k_0402	R_0402_1005Metric	R4, R7, R10, R20, R21, R29
14	RC0402FR-0710KL R_10k_0402	R_0402_1005Metric	R5, R6, R9, R11, R12, R13, R14, R15 +6
1	RLED	R_0402_1005Metric	R8
3	RC0402FR-07100RL R_100R_0402	R_0402_1005Metric	R17, R24, R25
2	CR0402-FX-68R0GLF R_68R_0402	R_0402_1005Metric	R26, R27
1	RC0402FR-071K2L R_1k2_0402	R_0402_1005Metric	R30
19	510R	R_0402_1005Metric	R31, R32, R33, R34, R35, R36, R37, R38 +11
1	CRG0603ZR R_0R_0603_JUMPER	R_0603_1608Metric	R50

Chipignite discover design files

The KiCad project lives in the efabless/chipignite_discover repository on GitHub; these links point at the commit this page was built from.

LayoutChipigniteExplain.kicad_pcb
SchematicChipigniteExplain.kicad_sch
BOMpcba/bom/ChipigniteExplain-bom-all.csv

Chipignite discover: common questions

What microcontroller does the Chipignite discover use?

The Chipignite discover is built around the SC0914(13), from the RP2040/RP2350 family.

How big is the Chipignite discover PCB?

The Chipignite discover measures 53.5 × 65.5 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Chipignite discover?

139 components, from 46 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Chipignite discover design files?

From the efabless/chipignite_discover repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Chipignite discover design in my own project?

Yes, under the terms of its Apache-2.0 license, which efabless chose for the repository.

Can I test firmware for the Chipignite discover without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
