MecProInverter PCB layout, top view — open source ESP32 board by Eg0st

About the MecProInverter PCB

MecProInverter is an open source ESP32 PCB design by Eg0st, published on GitHub. It is a 4-layer board measuring 104 × 168 mm, with 172 components from 68 distinct parts.

Its main chip is the ESP32-S3-MINI-1-N8, from the ESP32 family. Other key parts include the ADUM3160, TYPE-C_16PIN_2MD(073), LVE2560E, TPS563201DDCR and SKRKAEE020. By type, the board carries 67 resistors, 55 capacitors, 21 ICs, 11 diodes, 8 connectors and 3 switches.

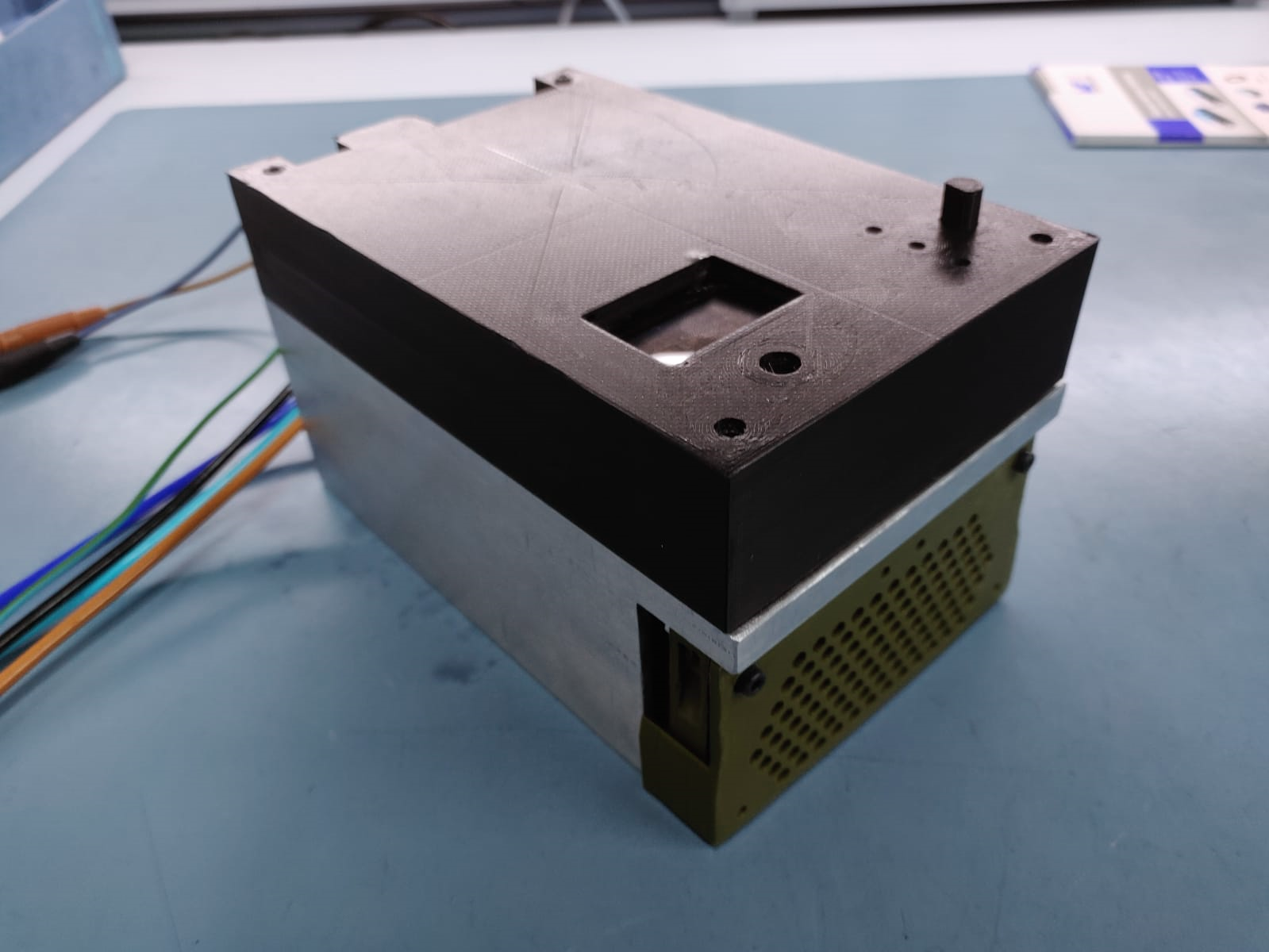

MecProInverter, from the project README
From the project README

Main components on the MecProInverter

ESP32-S3-MINI-1-N8ADUM3160TYPE-C_16PIN_2MD(073)LVE2560ETPS563201DDCRSKRKAEE020TLA2528IRTERCC6904SO-30ATEA1-0505HIIKCM20L60GAPSRV05-4MR6T1GADUM1201ARZ-RL7PMV100EPARRK09D113000F_10K

MecProInverter bill of materials (BOM)

172 components, 68 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S3-MINI-1-N8
U1
1
ADUM3160
U2
1
TYPE-C_16PIN_2MD(073)
U3
1
LVE2560E
U4
1
TPS563201DDCR
U5
2
SKRKAEE020
U6, U7
1
TLA2528IRTER
U8
3
CC6904SO-30A
U9, U10, U11
1
TEA1-0505HI
U12
1
IKCM20L60GA
U13
4
PSRV05-4MR6T1G
U14, U17, U19, U20
2
ADUM1201ARZ-RL7
U15, U16
1
PMV100EPAR
U18
1
RK09D113000F_10K
RK09D113000F_10k
U21
2
DMN3404L
Q1, Q2
1
ISO_Data
J3
1
Motor
J4
1
Display
J5
1
MAX312820
J6
1
Test
J7
Show 48 more
QtyPartRefs
1
U_ZK
J8
1
U_VS
J9
1
Net
J10
2
0022232031
Molex
Fan1, Fan2
1
RT314A12
K2
1
IRM-20-15
PS1
3
PTS645SM95SMTR92LFS
SW1, SW2, SW3
1
WS2812B
D3
1
LED_3.3V
D3V3
4
D
D4, D5, D6, D7
4
D
D8, D9, D10, D11
1
LED_15V
D15V1
1
2.2UH
2.2uH
L1
3
1MF
1mF
C1, C2, C3
1
1MF
locked
C4
26
100NF
100nF
C5, C6, C15, C16, C19, C21, C23, C24 +18
8
1UF
1uF
C7, C28, C29, C30, C31, C32, C50, C52
6
10NF
10nF
C8, C9, C10, C11, C12, C13
3
4.7UF
4.7uF
C14, C17, C18
3
10UF
22uF
C20, C22, C37
3
22UF
22uF
C25, C27, C40
2
220NF
100nF
C38, C39
1
14.4
R1
8
121
R2, R3, R4, R26, R27, R29, R30, R32
8
165
121
R5, R6, R7, R8, R9, R10, R38, R48
1
33.2K
33k
R11
9
10K
10k
R12, R19, R23, R34, R40, R57, R58, R59 +1
1
121
R13
2
820
R14, R47
3
100K
R15, R16, R17
1
90
R18
3
1K
R20, R21, R22
2
1.6K
1.6k
R24, R25
1
100K
10k
R28
1
0
R31
1
1.8K
1.8k
R33
1
999M
R35
2
24
R36, R37
1
33K
33k
R39
1
3,3k
R41
1
4.7K
4.7k
R42
4
10M
R43, R44, R45, R65
3
33K
33k
R46, R63, R64
4
180
121
R49, R50, R51, R52
4
0
R53, R54, R55, R56
1
330
R60
1
3.3K
3.3k
R61
2
5.1K
5.1k
R66, R67

MecProInverter design files

The KiCad project lives in the Eg0st/MecProInverter repository on GitHub; these links point at the commit this page was built from.

MecProInverter: common questions

What microcontroller does the MecProInverter use?

The MecProInverter is built around the ESP32-S3-MINI-1-N8, from the ESP32 family.

How big is the MecProInverter PCB?

The MecProInverter measures 104 × 168 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the MecProInverter?

172 components, from 68 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the MecProInverter design files?

From the Eg0st/MecProInverter repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the MecProInverter design in my own project?

The repository has no license, so all rights stay with Eg0st. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the MecProInverter without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
