About the Ulx3s PCB
Ulx3s is an open source ESP32 PCB design by emard, published on GitHub under the MIT license. It is a 4-layer board measuring 94 × 50.8 mm, with 212 components from 64 distinct parts.
Its main chip is the ESP-WROOM-32, from the ESP32 family. Other key parts include the LFE5U-85F-6BG381C, MT48LC16M16A2TG-6A, TLV62569DBVR, FT231XS and MCP7940NT-I/SN. By type, the board carries 70 capacitors, 66 resistors, 29 diodes, 11 ICs, 5 connectors and 5 inductors.
It belongs with the iot & wireless, usb & debug tools and rf & radio designs in this gallery.
From the project

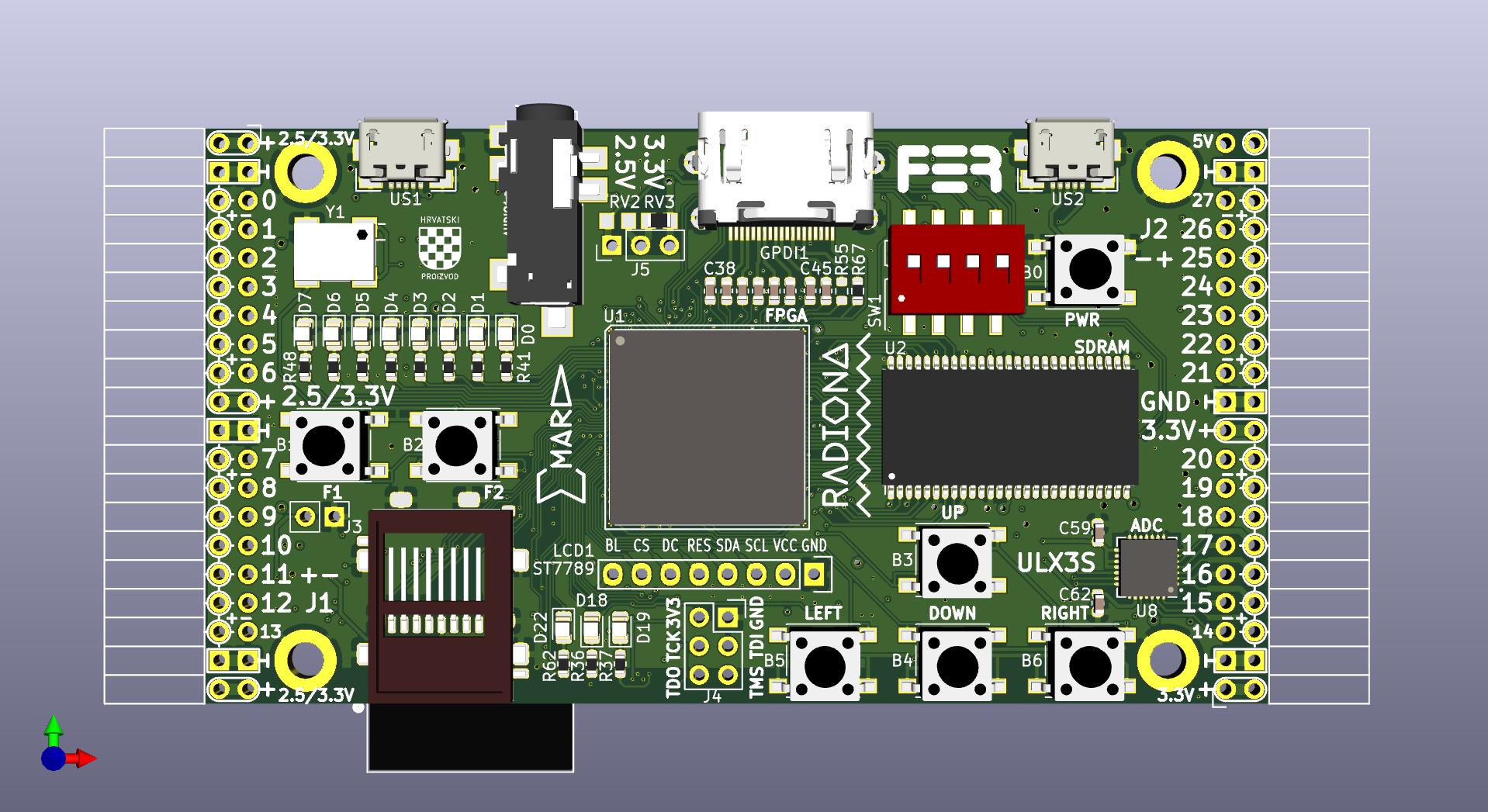

PCB for ULX3S FPGA R&D board
ULX3S = University digital Logic Learning Xtensible board release 3 with SDRAM, Successor of ULX2S.
Manual Quickstart Binaries ULX3S at Kitspace
Prototypes available at SKRIPTARNICA, local shop inside of FER university.
This is a small (94x51 mm) standalone FPGA board for education, research and general purpose, with a full featured selection of chips which I all wanted on a low-cost PCB, but haven't found on the market. It's open source and open hardware because if it is good for our development of f32c SOC, it should be also good to other projects.

Main components on the Ulx3s
Ulx3s bill of materials (BOM)
212 components, 64 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LFE5U-85F-6BG381C | BGA-381_pitch0.8mm_dia0.4mm | U1 |
| 1 | MT48LC16M16A2TG-6A MT48LC16M16A2TG | TSOP54 | U2 |
| 3 | TLV62569DBVR TLV62569DBV | TSOT-25 | U3, U4, U5 |
| 1 | FT231XS FT231XQ | FT231X-QFN-20-1EP_4x4mm_P0.5mm_EP2x2mm | U6 |
| 1 | MCP7940NT-I/SN MCP7940NT | SOT96-1 | U7 |
| 1 | MAX11125ATI+ MAX11125 | MAX1112x-TQFN-28-1EP_5x5mm_Pitch0.5mm | U8 |
| 1 | ESP-WROOM-32 ESP32 | ESP32 | U9 |
| 1 | IS25LP128F-JBLE | SOA008-150-208mil | U10 |
| 1 | PCA9306D | SM8 | U11 |
| 1 | BC857 | SOT-23 | Q1 |
| 1 | 2N7002 | SOT-23 | Q2 |
| 1 | FNETHE025 | Crystal_SMD_7050_4Pads | Y1 |
| 1 | LFXTAL016178REEL 32768Hz | Crystal_SMD_ABS07 | Y2 |
| 2 | CONN_02X20 | Socket_Strip_Angled_2x20 | J1, J2 |
| 1 | WIFI_OFF | PinHeader_1x02_P2.54mm_Vertical | J3 |
| 1 | CONN_02X03 | Socket_Strip_Straight_2x03 | J4 |
| 1 | VJ1 | PinHeader_1x03_P2.54mm_Vertical | J5 |
| 1 | SJ-43516-SMT JACK_TRS_6PINS | CUI_SJ-43516-SMT | AUDIO1 |
| 7 | PTS645 | SW_SPST_PTS645 | B0, B1, B2, B3, B4, B5, B6 |
| 1 | 3000TR CR1225 | Keystone_3000_1x12mm-CoinCell | BAT1 |
Show 44 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 10029449-111RLF GPDI-D | CONN-10029449-111RLF | GPDI1 |
| 1 | ST7789 | st7789 | LCD1 |
| 3 | 15K 15k | R_0603_1608Metric | RA1, RA2, RA3 |
| 1 | RC0603FR-1018KL 18k | R_0603_1608Metric | RB1 |
| 1 | AC0603FR-104K7L 4.7k | R_0603_1608Metric | RB2 |
| 1 | RT0603FRE073K3L 3.3k | R_0603_1608Metric | RB3 |
| 1 | RC0805JR-070RL 0 | R_0805_2012Metric_Pad1.29x1.40mm_HandSolder | RV3 |
| 1 | SCHD3A0100 104031-0811 | SCHD3A100-104031-0811 | SD1 |
| 1 | 219-4MST SW_DIP_x04 | SW_DIP_x4_W8.61mm_Slide_LowProfile | SW1 |
| 2 | 10118192-0001LF MICRO_USB | USB-MICRO-B-FCI-10118192-0001LF | US1, US2 |
| 4 | LTST-C170KRKT RED | LED_0805_2012Metric | D0, D4, D11, D19 |
| 2 | LTST-C170KFKT ORANGE | LED_0805_2012Metric | D1, D5 |
| 3 | LTST-C170TGKT GREEN | LED_0805_2012Metric | D2, D6, D18 |
| 3 | LTST-C170TBKT BLUE | LED_0805_2012Metric | D3, D7, D22 |
| 1 | STPS2L30AF STPS2L40AF | D_SMA | D8 |
| 11 | 1N4148WS 1N914 | D_SOD-323_HandSoldering | D10, D13, D14, D16, D17, D23, D24, D25 +3 |
| 2 | NSR0530HT1G BAT54W | D_SOD-323_HandSoldering | D12, D15 |
| 2 | BZT52C3V6S 3.6V | D_SOD-323_HandSoldering | D20, D21 |
| 1 | 3.6V | D_SOD-323_HandSoldering | D30 |
| 3 | 2.2UH 2.2uH | L_1008_1210 | L1, L2, L3 |
| 2 | CV201210-330K 33uH | L_0805_2012Metric_Pad1.15x1.40mm_HandSolder | L4, L5 |
| 15 | CC0805ZKY5V5BB226 22uF | C_0805_2012Metric | C1, C3, C4, C5, C7, C8, C9, C11 +7 |
| 4 | CS0603KRX7R9BB471 100pF | C_0603_1608Metric | C2, C6, C10, C18 |
| 10 | CC0805MRX5R6BB225 2.2uF | C_0805_2012Metric | C13, C16, C17, C19, C20, C22, C23, C24 +2 |
| 4 | CC0603KRX7R8BB224 220nF | C_0603_1608Metric | C14, C59, C60, C62 |
| 17 | 22NF 22nF | C_0603_1608Metric | C25, C26, C27, C28, C29, C30, C31, C32 +9 |
| 8 | CC0603KRX7R8BB224 22nF | C_0603_1608Metric | C38, C39, C40, C41, C42, C43, C44, C45 |
| 2 | CC0603CRNPO9BN3R3 4.7pF | C_0603_1608Metric | C56, C57 |
| 10 | 22nF | C_0603_1608Metric | C63, C64, C65, C66, C67, C68, C69, C70 +2 |
| 6 | AC0603FR-104K7L 4.7k | R_0603_1608Metric | R1, R3, R4, R25, R26, R30 |
| 1 | RC0603FR-1018KL 18k | R_0603_1608Metric | R2 |
| 1 | RC0603FR-132M2L 2.2M | R_0603_1608Metric | R5 |
| 9 | RC0603FR-071K1L 1.1k | R_0603_1608Metric | R6, R8, R14, R18, R29, R40, R54, R57 +1 |
| 7 | RC0603FR-07130RL 130 | R_0603_1608Metric | R7, R10, R17, R21, R39, R51, R60 |
| 8 | 15K 15k | R_0603_1608Metric | R9, R13, R31, R32, R33, R34, R63, R64 |
| 4 | RC0603FR-0710KL 10k | R_0603_1608Metric | R11, R12, R27, R28 |
| 17 | RC0603FR-07549RL 549 | R_0603_1608Metric | R15, R19, R35, R36, R37, R41, R42, R43 +9 |
| 3 | RC0603FR-07270RL 270 | R_0603_1608Metric | R16, R20, R59 |
| 2 | RT0603FRE073K3L 3.3k | R_0603_1608Metric | R22, R23 |
| 1 | AC0603FR-10100KL 100k | R_0603_1608Metric | R24 |
| 1 | 73L2R47J 0.47 | R_0603_1608Metric | R38 |
| 4 | AC0603JR-0727RL 27 | R_0603_1608Metric | R49, R50, R52, R53 |
| 1 | 15k | R_0603_1608Metric | R56 |
| 1 | 549 | R_0603_1608Metric | R67 |
Ulx3s design files
The KiCad project lives in the emard/ulx3s repository on GitHub; these links point at the commit this page was built from.
- Layoutulx3s.kicad_pcb
- BOMdoc/ulx3s_bom.csv
Ulx3s: common questions
What microcontroller does the Ulx3s use?
The Ulx3s is built around the ESP-WROOM-32, from the ESP32 family.
How big is the Ulx3s PCB?
The Ulx3s measures 94 × 50.8 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Ulx3s?
212 components, from 64 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Ulx3s design files?
From the emard/ulx3s repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Ulx3s design in my own project?
Yes, under the terms of its MIT license, which emard chose for the repository.
Can I test firmware for the Ulx3s without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
