UPIC46

emertcakir·uPIC46·hardware/uPIC46/uPIC46.kicad_pcb

UPIC46 PCB layout, top view — open source PIC board by emertcakir

About the UPIC46 PCB

UPIC46 is an open source PIC PCB design by emertcakir, published on GitHub under the MIT license. It is a 2-layer board measuring 66.6 × 41.3 mm, with 90 components from 39 distinct parts.

Its main chip is the PIC18F46K22-I/PT, from the PIC family. Other key parts include the TPD2E2U06DCK, 24LC256, FT231XQ-R, AMS1117-3.3 and MCP2515-xST. By type, the board carries 31 capacitors, 30 resistors, 9 ICs, 8 diodes, 7 connectors and 2 inductors.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

PIC18F46K22-based versatile development board with CAN, RS-485, EEPROM, RTC, and user LEDs

The uPIC46 is a development board designed around the Microchip PIC18F46K22-I/PT microcontroller. It is intended for hobbyists, students, and professionals who want a versatile platform for learning, prototyping, and industrial communication testing.

CRITICAL WARNING: This PCB design is currently an experimental, unverified prototype (AS-IS). I have not yet manufactured or functionally tested this version. Proceeding with production carries a high risk of failure and is undertaken solely at your own risk.

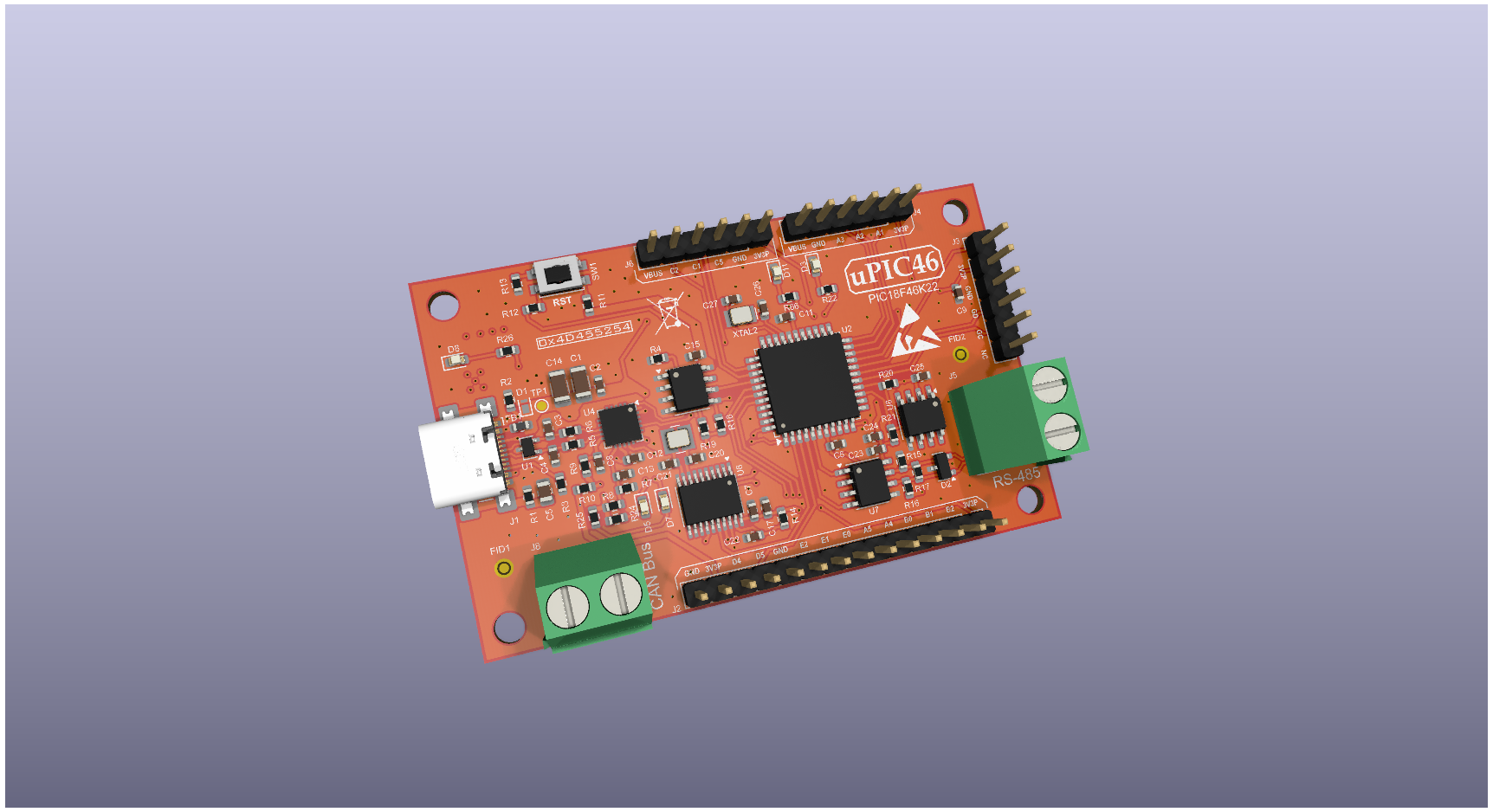

UPIC46, from the project README
From the project README

Main components on the UPIC46

TPD2E2U06DCKPIC18F46K22-I/PT24LC256FT231XQ-RAMS1117-3.3MCP2515-xSTMAX3485CSA+TDS3231MZSN65HVD230

UPIC46 bill of materials (BOM)

90 components, 39 distinct parts.

QtyPartRefs
1
TPD2E2U06DCK
U1
1
PIC18F46K22-I/PT
U2
1
24LC256
U3
1
FT231XQ-R
U4
1
AMS1117-3.3
U5
1
MCP2515-xST
U6
1
MAX3485CSA+T
U7
1
DS3231MZ
U8
1
SN65HVD230
U9
1
USB_C_Receptacle_USB2.0_16P
J1
1
Conn_01x14_Socket
J2
1
Conn_PIC_ICSP_ICD
J3
2
Conn_01x06_Socket
J4, J6
2
Screw_Terminal_01x02
J5, J8
1
SW_Push
SW1
1
NX3225GD-8MHZ-STD-CRA-3
NDK America, Inc.
XTAL1
1
ECS-.327-12.5-34B-TR
ECS Inc.
XTAL2
1
PTVS5V0Z1USKYL
D1
1
SM712_SOT23
D2
5
LED
D3, D5, D7, D8, D11
Show 19 more
QtyPartRefs
1
PESD1CAN,215
PESD1CAN_215
Nexperia USA Inc.
D6
1
FerriteBead
FB1
1
WE-SL2
L3
3
1uF
C1, C10, C19
14
100nF
C2, C6, C7, C8, C9, C11, C12, C15 +6
2
47pF
C3, C4
1
2.2nF
C5
1
10nF
C13
1
4.7uF
C14
3
10uF
C16, C18, C57
4
12pF
C20, C21, C26, C27
2
100pF
C59, C62
2
100R
R1, R12
3
5.1k
R2, R3, R4
8
0R
R5, R6, R9, R10, R13, R31, R38, R39
1
15k
R7
9
10k
R8, R11, R14, R15, R16, R18, R19, R20 +1
2
120R
R17, R32
5
1k
R22, R24, R25, R26, R66

UPIC46 design files

The KiCad project lives in the emertcakir/uPIC46 repository on GitHub; these links point at the commit this page was built from.

UPIC46: common questions

What microcontroller does the UPIC46 use?

The UPIC46 is built around the PIC18F46K22-I/PT, from the PIC family.

How big is the UPIC46 PCB?

The UPIC46 measures 66.6 × 41.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the UPIC46?

90 components, from 39 distinct parts. The full bill of materials is listed on this page.

Where can I download the UPIC46 design files?

From the emertcakir/uPIC46 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the UPIC46 design in my own project?

Yes, under the terms of its MIT license, which emertcakir chose for the repository.

Can I test firmware for the UPIC46 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug PIC firmware against it before you order a PCB.
