About the STRATOSDRONES PCB

STRATOSDRONES is an open source ESP32 PCB design by equationstratos, published on GitHub under the MIT license. It is a 4-layer board measuring 38 × 74 mm, with 109 components from 44 distinct parts.

Its main chip is the ESP32-P4NRW32, from the ESP32 family. Other key parts include the W25Q128JVSIQ, ESP32-C6-MINI-1, TP4056-42-ESOP8, SY8089AAAC and ICM-42688-P. By type, the board carries 42 capacitors, 31 resistors, 10 ICs, 10 connectors, 5 diodes and 4 transistors.

It belongs with the iot & wireless and sensors designs in this gallery.

From the project

A 4-layer, 36×70 mm Tello-style portrait controller board for the STRATOSDRONE: chip-down ESP32-P4 (flight + camera + hardware H.264) with an ESP32-C6-MINI-1 Wi-Fi co-processor, IMU / barometer / ToF / optical-flow sensors, a MIPI-CSI camera FFC at the nose, 1S USB-C charging at

A 4-layer, 36×70 mm Tello-style portrait controller board for the STRATOSDRONE: chip-down ESP32-P4 (flight + camera + hardware H.264) with an ESP32-C6-MINI-1 Wi-Fi co-processor, IMU / barometer / ToF / optical-flow sensors, a MIPI-CSI camera FFC at the nose, 1S USB-C charging at the rear, and four corner brushed-motor drivers. It drops into the printed body pod (../frame/tellostyle/`).

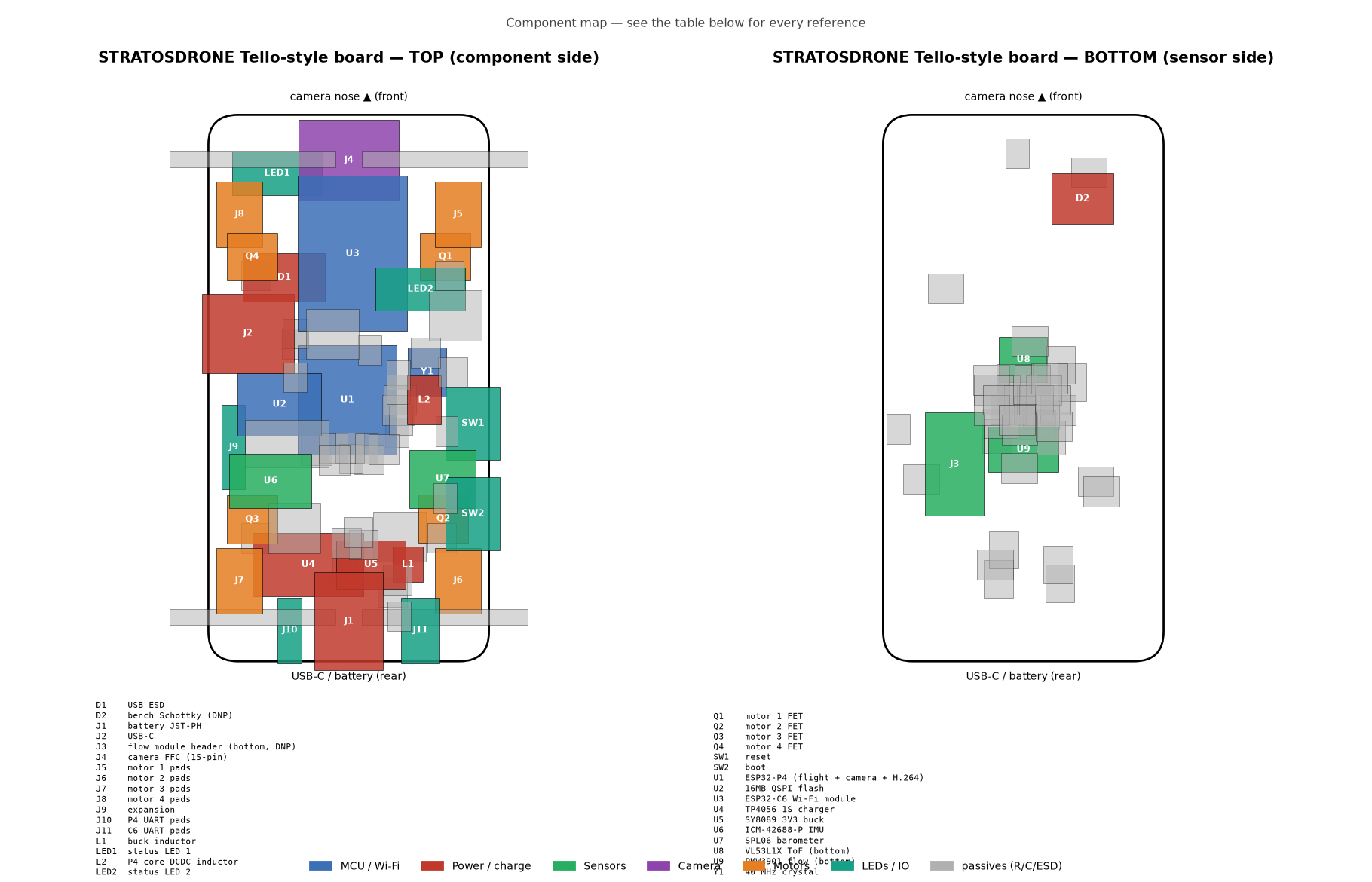

STRATOSDRONES, from the project README
From the project README

Main components on the STRATOSDRONES

ESP32-P4NRW32W25Q128JVSIQESP32-C6-MINI-1TP4056-42-ESOP8SY8089AAACICM-42688-PSPL06-001VL53L1XPMW3901MBTLV62569DBVR

STRATOSDRONES bill of materials (BOM)

109 components, 44 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-P4NRW32
U1
1
W25Q128JVSIQ
U2
1
ESP32-C6-MINI-1
U3
1
TP4056-42-ESOP8
U4
1
SY8089AAAC
U5
1
ICM-42688-P
U6
1
SPL06-001
U7
1
VL53L1X
U8
1
PMW3901MB
U9
1
TLV62569DBVR
U10
4
AO3400A
Q1, Q2, Q3, Q4
1
40MHZ
40MHz
Y1
1
BATT_PH2
J1
1
USB-C-16P
J2
1
CAM_FFC15
J4
1
MOTOR1
J5
1
MOTOR2
J6
1
MOTOR3
J7
1
MOTOR4
J8
1
EXP
J9
Show 24 more
QtyPartRefs
1
DBG
J10
1
C6DBG
J11
1
C720477
RESET
SW1
1
C720477
BOOT
SW2
2
WS2812B-2020
LED1, LED2
1
USBLC6-2SC6
D1
4
SS34
D3, D4, D5, D6
1
10UH
10uH
L1
1
2.2UH
2.2uH
L2
4
10UF
10uF
C1, C2, C3, C36
2
22UF
22uF
C4, C5
26
100NF
100nF
C6, C11, C12, C13, C14, C15, C16, C17 +18
5
1UF
1uF
C7, C10, C33, C38, C40
2
10PF
10pF
C8, C9
2
10UF
10uF
C26, C27
1
20PF
20pF
C37
2
5.1K
5.1k
R1, R2
1
1.2K
1.2k
R3
3
453K
453k
R4, R30, R31
8
100K
100k
R5, R6, R7, R8, R26, R27, R28, R29
6
10K
10k
R9, R10, R13, R14, R15, R21
2
10K
4.02k
R11, R12
5
51K
51k
R16, R17, R18, R19, R20
4
100R
R22, R23, R24, R25

STRATOSDRONES design files

The KiCad project lives in the equationstratos/STRATOSDRONES repository on GitHub; these links point at the commit this page was built from.

STRATOSDRONES: common questions

What microcontroller does the STRATOSDRONES use?

The STRATOSDRONES is built around the ESP32-P4NRW32, from the ESP32 family.

How big is the STRATOSDRONES PCB?

The STRATOSDRONES measures 38 × 74 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the STRATOSDRONES?

109 components, from 44 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the STRATOSDRONES design files?

From the equationstratos/STRATOSDRONES repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the STRATOSDRONES design in my own project?

Yes, under the terms of its MIT license, which equationstratos chose for the repository.

Can I test firmware for the STRATOSDRONES without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
