RPi-MCP2517
About the RPi-MCP2517 PCB

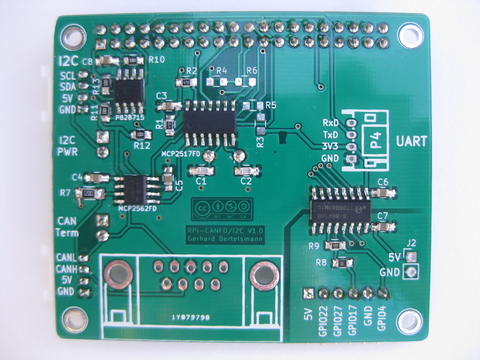

RPi-MCP2517 is an open source PIC PCB design by GBert, published on GitHub. It is a 2-layer board measuring 65 × 56.5 mm, with 35 components from 29 distinct parts.
Its main chip is the PIC18F25K80, from the PIC family. Other key parts include the MCP2517FD, MCP2562FD and SN65HVD230. By type, the board carries 13 resistors, 9 connectors, 8 capacitors, 4 ICs and 1 crystal.
From the project
miscellaneous stuff / unsorted
RPI-I2C/CAN Adapter with optional I2C Bus Extender ==================================================
Main components on the RPi-MCP2517
RPi-MCP2517 bill of materials (BOM)
35 components, 29 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MCP2517FD | so-14 | U1 |
| 1 | MCP2562FD | so-8 | U2 |
| 1 | SN65HVD230 P82B715 | so-8 | U3 |
| 1 | PIC18F25K80 SI8641-SOIC | so-16 | U4 |
| 1 | 16MHZ 4MHz | crystal_hc-49s | Y1 |
| 1 | Conn_01x06 | Pin_Header_Angled_1x06_Pitch2.54mm | J1 |
| 1 | Conn_01x02 | Pin_Header_Straight_1x02_Pitch2.54mm | J2 |
| 1 | DB9_Female_MountingHoles | DB_9M | J3 |
| 1 | CONN_02X20 | Socket_Strip_Straight_2x20 | P1 |
| 2 | CONN_01X02 | Pin_Header_Angled_1x02 | P2, P8 |
| 3 | CONN_01X04 | s4b-ph-kl | P3, P4, P9 |
| 1 | 100NF 22pF | C_0805_HandSoldering | C1 |
| 1 | 22pF | C_0805_HandSoldering | C2 |
| 2 | 18PF 100nF | C_0805_HandSoldering | C3, C4 |
| 1 | 10UF 100nF | C_0805_HandSoldering | C5 |
| 2 | 100NF 100nF | C_0805_HandSoldering | C6, C8 |
| 1 | 100nF | C_0805_HandSoldering | C7 |
| 1 | 10K 4k7 | R_0805_HandSolderingII | R1 |
| 2 | 680 4k7 | R_0805_HandSolderingII | R2, R3 |
| 1 | 4K7 4k7 | R_0805_HandSolderingII | R4 |
Show 9 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 680 0 | R_0805_HandSolderingII | R5 |
| 1 | 3K3 0 | R_0805_HandSolderingII | R6 |
| 1 | 3K3 120 | R_1206_HandSolderingII | R7 |
| 1 | 0 | R_0805_HandSolderingII | R8 |
| 1 | 3K3 50 | R_0805_HandSolderingII | R9 |
| 1 | 3K3 3k3 | R_0805_HandSolderingII | R10 |
| 1 | 120 3k3 | R_0805_HandSolderingII | R11 |
| 1 | 270 3k3 | R_0805_HandSolderingII | R12 |
| 1 | 3k3 | R_0805_HandSolderingII | R13 |
RPi-MCP2517 design files
The KiCad project lives in the GBert/misc repository on GitHub; these links point at the commit this page was built from.
RPi-MCP2517: common questions
What microcontroller does the RPi-MCP2517 use?
The RPi-MCP2517 is built around the PIC18F25K80, from the PIC family.
How big is the RPi-MCP2517 PCB?
The RPi-MCP2517 measures 65 × 56.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the RPi-MCP2517?
35 components, from 29 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the RPi-MCP2517 design files?
From the GBert/misc repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the RPi-MCP2517 design in my own project?
The repository has no license, so all rights stay with GBert. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the RPi-MCP2517 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug PIC firmware against it before you order a PCB.
