About the Wizard flute PCB

Wizard flute is an open source ESP32 PCB design by gregdavill, published on GitHub. It is a 4-layer board measuring 40.1 × 12.7 mm, with 49 components from 28 distinct parts.

Its main chip is the ESP32-S2, from the ESP32 family. Other key parts include the USBLC6-2P6, TLV62569DRLR and W25Q32JVZPIQ. By type, the board carries 16 capacitors, 16 resistors, 5 inductors, 4 ICs, 3 transistors and 1 crystal.

It belongs with the displays & leds and iot & wireless designs in this gallery.

From the project

Compact 4 digit 7-segment clock display controlled with an ESP32-S2

~ Current Status: Prototype boards ordered ~

Note: This design was performed in KiCad nightly , you will need a Nightly build to open and edit these source files.

A Compact 4 digit 7-segment clock display with an ESP32-S2 control board.

It is powered off a USB-C connection on the side of the unit, and features 1 button.

This design will become a desk clock that sets it's time from your local WiFi using NTP.

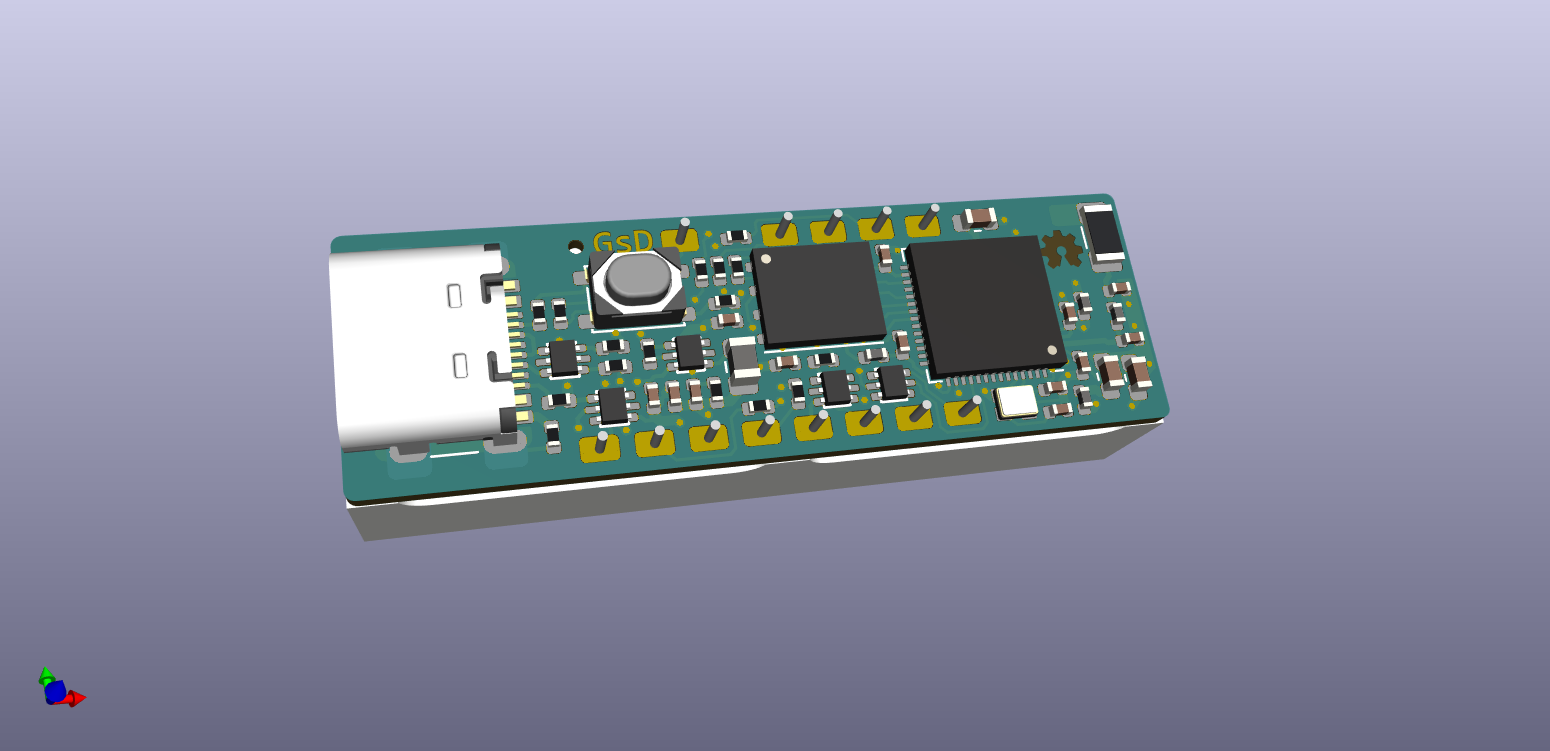

Wizard flute, from the project README
From the project README

Main components on the Wizard flute

USBLC6-2P6TLV62569DRLRESP32-S2W25Q32JVZPIQ

Wizard flute bill of materials (BOM)

49 components, 28 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
USBLC6-2P6
USBLC6-2
U1
1
TLV62569DRLR
TLV62569DRL
U2
1
ESP32-S2
U3
1
W25Q32JVZPIQ
U4
3
EM6K7T2R
Q_DUAL_NMOS_S1G1D2S2G2D1
Q1, Q2, Q3
1
SX20Y040000BC1T
40MHz
Y1
1
USB4105-GF-A
USB_C
J1
1
SLDA31-2R400G-S2TF
Antenna
AE1
1
KEM-3942-AY
LE1
1
TACT
SW1
3
BLM15BC241SN1D
240R
FB1, FB2, FB3
1
SLM20122R2MIT
2.2uH
L1
1
TBD
L2
1
CC0402KRX5R6BB475
4.7uF
C1
2
CC0402MRX5R5BB225
2.2uF
C2, C7
2
CC0402GRNPO9BN180
18pF
C3, C4
1
CC0402CRNPO9BN6R8
6.8pF
C5
1
CC0402KRX5R6BB105
1uF
C6
3
CC0603KRX5R5BB106
10u
C8, C14, C19
4
CC0402ZRY5V7BB104
100n
C9, C12, C13, C15
Show 8 more
QtyPartRefs
2
TBD
C10, C11
1
RC0402FR-071ML
1M
R1
2
RC0402FR-075K1L
5k1
R2, R3
2
RC0402FR-0722RL
22E
R4, R5
1
RC0402FR-07210KL
210k
R6
1
RC0402FR-0747KL
47k
R7
8
RC0402FR-0722RL
220R
R8, R9, R11, R12, R13, R14, R15, R16
1
RC0402FR-0710KL
10k
R10

Wizard flute design files

The KiCad project lives in the gregdavill/wizard-flute repository on GitHub; these links point at the commit this page was built from.

Wizard flute: common questions

What microcontroller does the Wizard flute use?

The Wizard flute is built around the ESP32-S2, from the ESP32 family.

How big is the Wizard flute PCB?

The Wizard flute measures 40.1 × 12.7 mm, has 4 copper layers and is 0.8 mm thick.

How many components are on the Wizard flute?

49 components, from 28 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Wizard flute design files?

From the gregdavill/wizard-flute repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Wizard flute design in my own project?

The repository has no license, so all rights stay with gregdavill. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Wizard flute without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
