About the Sca00 PCB

Sca00 is an open source PCB design by gzweigle, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 91.4 × 33 mm, with 32 components from 23 distinct parts.

Other key parts include the REF6030, ADS8881, SN74LV4051 and THS4281. By type, the board carries 9 capacitors, 7 test points, 6 connectors, 4 ICs, 4 resistors and 2 switches.

It belongs with the audio designs in this gallery.

From the project

Building a hybrid MIDI digital piano

A small data acquisition card that connects to the mainboard.

By modifying this small SCA board, designers can experiment with different ADC front-ends without having to make a new (expensive) IPS 2.0 board.

Compared to IPS 2.0, the more difficult to solder parts are on the SCA PCB. Mistakes are localized to a small, low-cost board.

The digital inputs (a, b, c) determine which analog input is routed to the ADC. |c|b|a| pin number| |-|-|-|-| |0|0|0|4| |0|0|1|5| |0|1|0|6| |0|1|1|3| |1|0|0|none (ground is selected)| |1|0|1|1| |1|1|0|none (ground is selected)| |1|1|1|2|

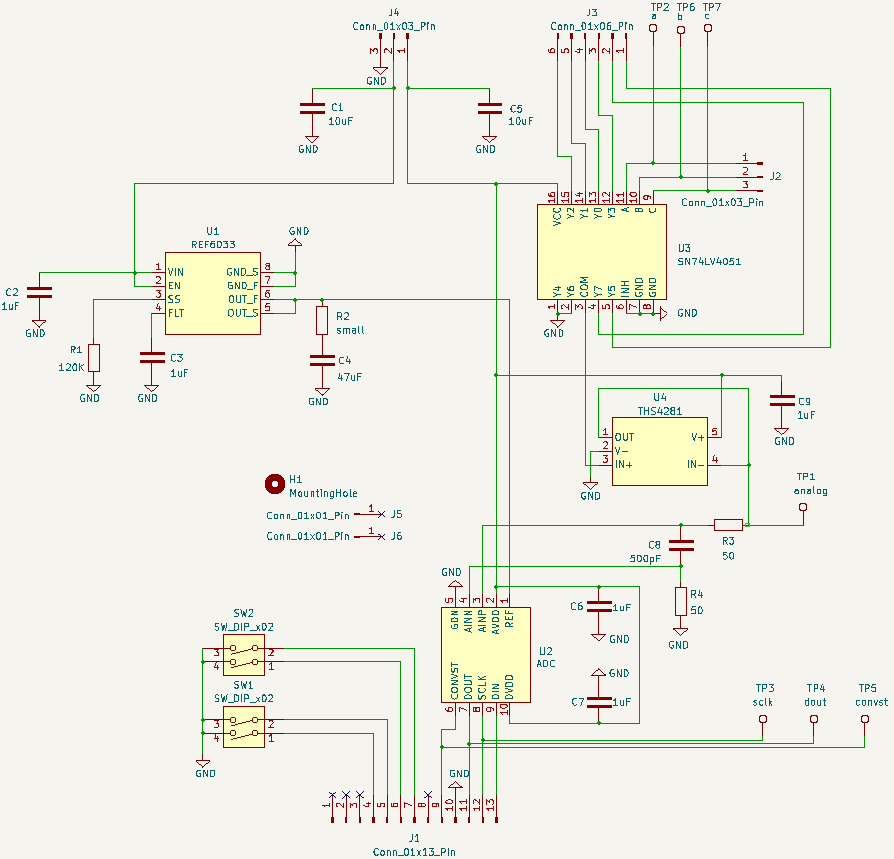

Sca00, from the project README
From the project README

Main components on the Sca00

REF6030ADS8881SN74LV4051THS4281

Sca00 bill of materials (BOM)

32 components, 23 distinct parts.

QtyPartRefs
1
REF6030
U1
1
ADS8881
U2
1
SN74LV4051
U3
1
THS4281
U4
1
Conn_01x13_Pin
J1
2
Conn_01x03_Pin
J2, J4
1
Conn_01x06_Pin
J3
2
Conn_01x01_Pin
J5, J6
2
SW_DIP_x02
SW1, SW2
1
analog
TP1
1
a
TP2
1
sclk
TP3
1
dout
TP4
1
convst
TP5
1
b
TP6
1
c
TP7
2
10uF
C1, C5
5
1uF
C2, C3, C6, C7, C9
1
47uF
C4
1
500pF
C8
Show 3 more
QtyPartRefs
1
120K
R1
1
small
R2
2
50
R3, R4
