Badge PCB layout, top view — open source RP2040/RP2350 board by hackclub

About the Badge PCB

Badge is an open source RP2040/RP2350 PCB design by hackclub, published on GitHub. It is a 2-layer board measuring 73 × 41 mm, with 65 components from 30 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the SC18IS606PWJ, e-paper, AP2112K-3.3, W25Q16JVSS and USBLC6-2P6. By type, the board carries 29 capacitors, 17 resistors, 6 ICs, 4 diodes, 2 connectors and 2 switches.

It belongs with the wearables and displays & leds designs in this gallery.

From the project

A YSWS for the northern hemisphere's summer and the aussie's winter. Run by @pmnlla, with love and loads of carrots.

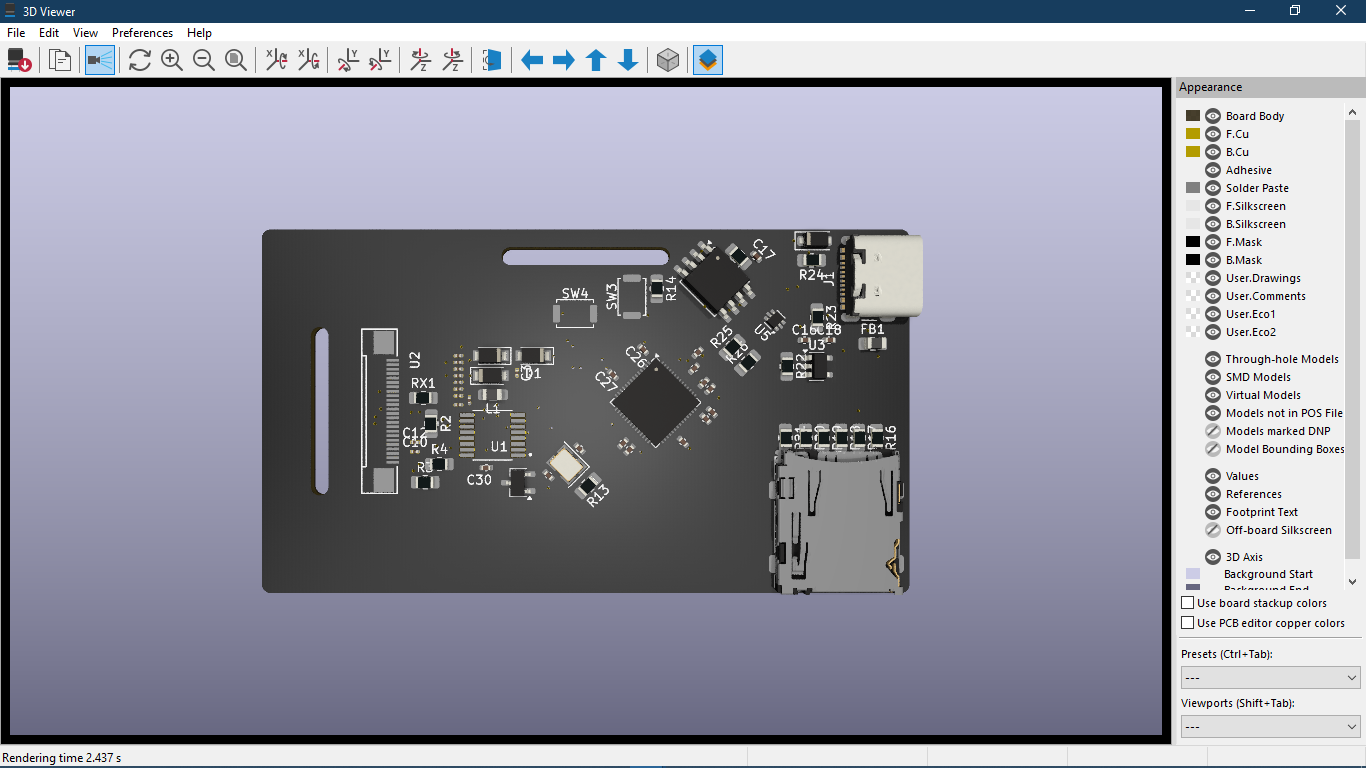

Badge, from the project README
From the project README

Main components on the Badge

SC18IS606PWJe-paperAP2112K-3.3W25Q16JVSSUSBLC6-2P6RP2040

Badge bill of materials (BOM)

65 components, 30 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SC18IS606PWJ
U1
1
e-paper
U2
1
AP2112K-3.3
U3
1
W25Q16JVSS
U4
1
USBLC6-2P6
U5
1
RP2040
U6
1
DMG1012UW-7
Q1
1
CRYSTAL_GND24
Crystal_GND24
Y1
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J1
1
Micro_SD_Card
J3
1
R
RX1
2
C318884
BOOT_SEL
SW3, SW4
3
D
D1, D5, D6
1
MBR1020VL
D4
1
FerriteBead_Small
FB1
1
68UH
68uH
L1
1
4.7U
4.7u
C2
10
1u
C3, C5, C6, C7, C8, C9, C10, C11 +2
1
0.1U
0.1u
C4
2
15PF
15pF
C14, C15
Show 10 more
QtyPartRefs
5
1UF
1uF
C16, C18, C21, C22, C30
2
100N
100n
C17, C29
8
100NF
100nF
C19, C20, C23, C24, C25, C26, C27, C28
2
20K
20k
R2, R3
1
3
R4
2
1k
R13, R14
1
DNF
R15
6
10K
10k
R16, R17, R18, R19, R20, R21
3
5.1K
R22, R23, R24
2
27.4
R25, R26

Badge design files

The KiCad project lives in the hackclub/reflow repository on GitHub; these links point at the commit this page was built from.

Badge: common questions

What microcontroller does the Badge use?

The Badge is built around the RP2040, from the RP2040/RP2350 family.

How big is the Badge PCB?

The Badge measures 73 × 41 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Badge?

65 components, from 30 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Badge design files?

From the hackclub/reflow repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Badge design in my own project?

The repository has no license, so all rights stay with hackclub. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Badge without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
