Esp8266

Hackuarium·esp-12e·kicad/esp8266.kicad_pcb

Esp8266 PCB layout, top view — open source ESP8266 board by Hackuarium

About the Esp8266 PCB

Esp8266 is an open source ESP8266 PCB design by Hackuarium, published on GitHub. It is a 2-layer board measuring 85 × 75 mm, with 47 components from 28 distinct parts.

Its main chip is the ESP-12E, from the ESP8266 family. Other key parts include the MCP73831-2, MCP1703-33, MS5637, MCP1703-50 and Si7020-A20. By type, the board carries 11 resistors, 9 capacitors, 8 connectors, 7 ICs, 4 transistors and 4 diodes.

It belongs with the iot & wireless and displays & leds designs in this gallery.

From the project

Read information on: https://www.kloppenborg.net/images/blog/esp8266/esp8266-esp12e-specs.pdf

Read information on: https://www.kloppenborg.net/images/blog/esp8266/esp8266-esp12e-specs.pdf

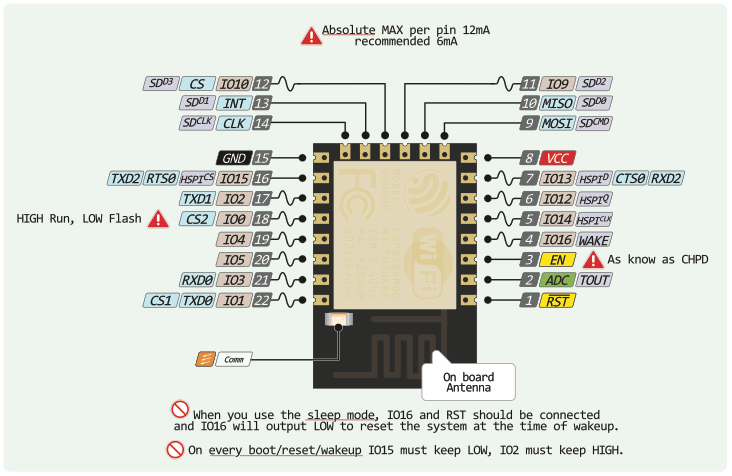

Available pins: http://www.rabbithacks.com/esp8266/esp12-e-directly-usable-gpio-pins/

PWM on all the pins ! HSPI (screen or other): 12 13 14 15 PWM: R12 G15 B13 ADC: TOUT I2C: SCL14 SDA2

You need to maintain SW2 while pressing SW1 (reset) in order to set the ESP-12E in programing mode.

Esp8266, from the project README
From the project README

Main components on the Esp8266

ESP-12EMCP73831-2MCP1703-33MS5637MCP1703-50Si7020-A20DS18B20

Esp8266 bill of materials (BOM)

47 components, 28 distinct parts.

QtyPartRefs
1
ESP-12E
U1
1
MCP73831-2
U2
1
MCP1703-33
U3
1
MS5637
U4
1
MCP1703-50
U5
1
Si7020-A20
U6
1
DS18B20
U7
4
BSP75
Q1, Q2, Q3, Q4
1
BATT
J1
1
5 / 12V
J2
1
CONN FT232RL
J3
2
RJ12-I2C
J4, J5
2
Onewire
J6, J7
1
IO_RGBW
J13
1
RESET
SW1
1
PROG
SW2
1
Test_i2C
TP2
1
Test_UART
TP7
3
D_Schottky
D1, D3, D4
1
DMP1045U
D2
Show 8 more
QtyPartRefs
4
10uF
C1, C2, C8, C9
1
100nF
C3
4
1uF
C4, C5, C6, C7
1
100k
R1
7
10k
R2, R3, R4, R7, R8, R10, R11
1
1M
R5
1
270k
R6
1
4.7k
R9

Esp8266 design files

The KiCad project lives in the Hackuarium/esp-12e repository on GitHub; these links point at the commit this page was built from.

Esp8266: common questions

What microcontroller does the Esp8266 use?

The Esp8266 is built around the ESP-12E, from the ESP8266 family.

How big is the Esp8266 PCB?

The Esp8266 measures 85 × 75 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Esp8266?

47 components, from 28 distinct parts. The full bill of materials is listed on this page.

Where can I download the Esp8266 design files?

From the Hackuarium/esp-12e repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Esp8266 design in my own project?

The repository has no license, so all rights stay with Hackuarium. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Esp8266 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP8266 firmware against it before you order a PCB.
